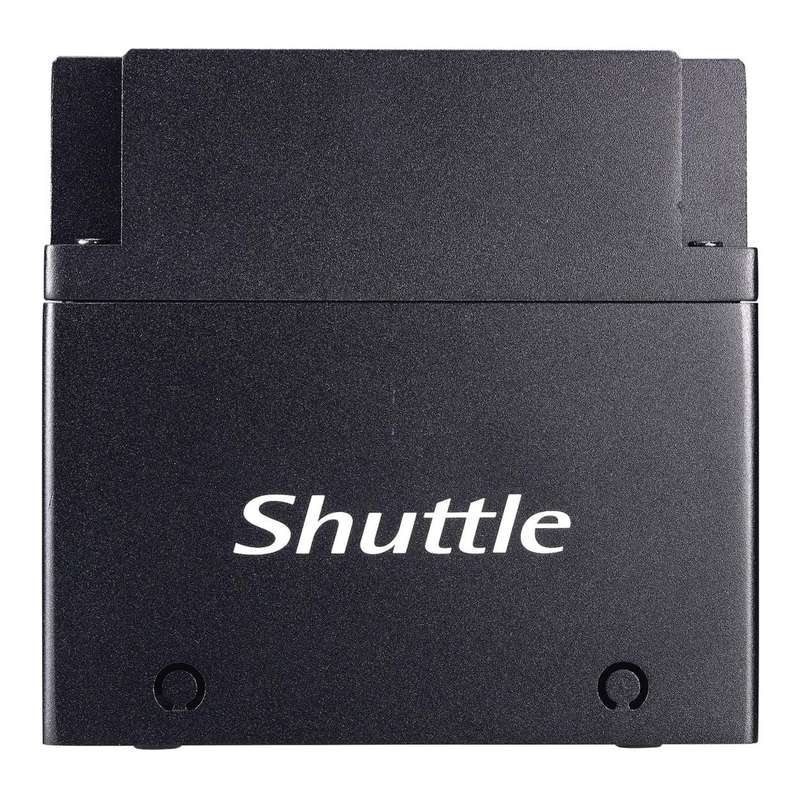

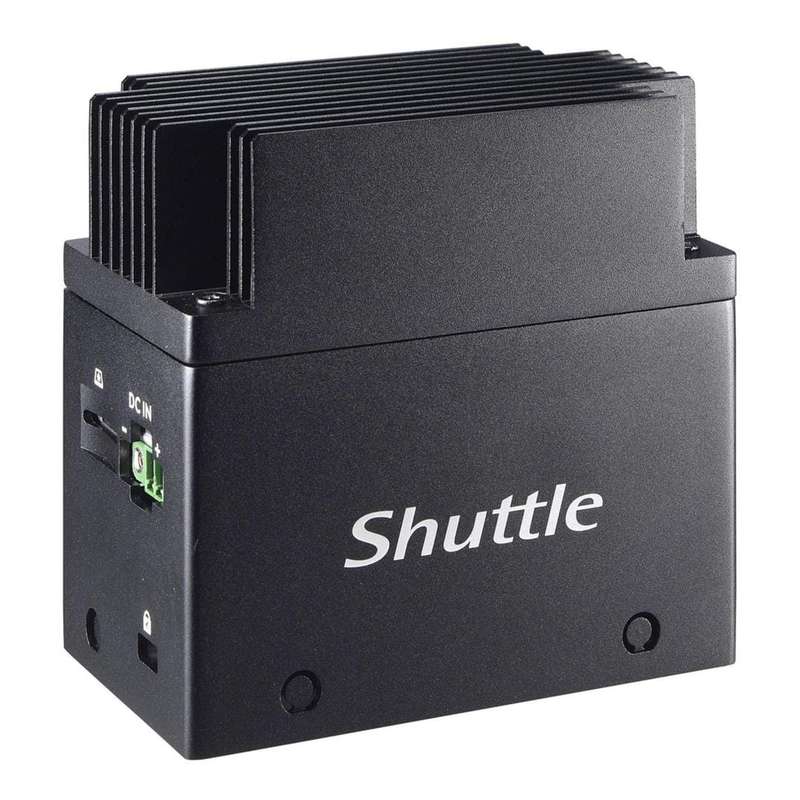

Shuttle EDGE EN01J4 Mini PC - Intel Pentium J4205 8GB RAM 64GB eMMC Black (Open Box)
Special Offer Notice: This 'Opened Box' item is sold 'voetstoots' at a substantial discount. While we haven't verified the contents, we're passing on the savings to you. Please note, this purchase comes with a 30-day warranty.
Features
Robust Industry PC with VESA/DIN-Rail mount and various options
The Shuttle EN01J4 is a fanless IPC in a robust 450 ml metal chassis and intended for DIN-Rail or VESA mounting. It is flexible in use and designed for maintenance-free 24/7 operation at ambient temperatures of up to 50°C. Inside there is a CPU board with an Intel "Apollo Lake" processor and a carrierboard with several I/O ports and a card reader. Optional features comprise a second LAN port with PoE function, LTE/WLAN function and video capturing via HDMI. This product is targeted at professional applications such as edge computing (IoT gateway), automation, digital signage, control, data logging and video surveillance.
Suitable for constant operation
Work 24 hours a day, 7 days a week. As it does not use any moving parts, such as a fan, this Mini-PC is approved for constant operation. This means lower maintenance costs and a longer lifespan.
Fanless and whisper-quiet
The fanless technology used in this PC means it is incredibly quiet. Doing away with these mechanical components also reduces the number of wearing parts, making the machine more durable and stable.

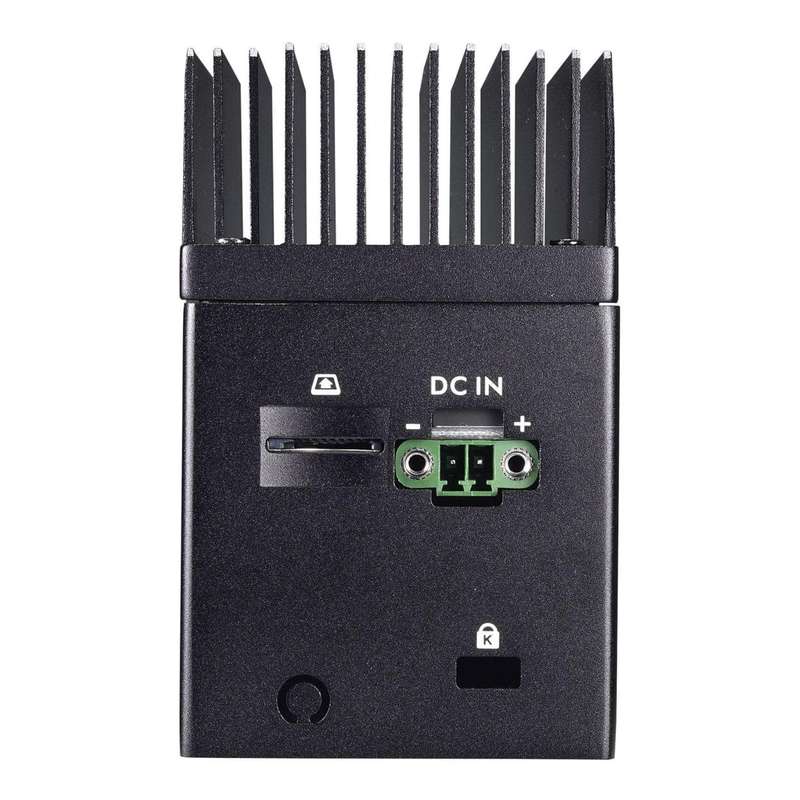

Two-pin Euroblock connector
This device has a two-pin Euroblock connector and can be supplied with 12-19 volts. A Phoenix screw terminal and an adapter for power supply units with hollow connectors are included.
Soldered Flash memory storage
This model already has many gigabytes of storage space for the operating system and as general data storage. This can be extended by external or internal drives if required.
Ideal for DIN rail
With a DIN rail mounting, this model can be attached to a top-hat rail by means of a clamping mechanism and thus be used in switch cabinets and distribution boxes, for example.
Power supply via PoE (Option)
Thanks to PoE (Power over Ethernet), the model's power and data transmission is completely over the network cable. This saves costs for cabling and provides more space in limited areas. (Available as accessory)
Ready for 4G mobile reception
For this model, the Shuttle range of accessories offers a separately available antenna kit which can be used to install 4G modules in an M.2-3042 format.
Suitable for Linux operating systems
This model was successfully tested with Linux. All machine functions worked without problem immediately after installation.
Robust aluminium housing
The use of aluminium as housing material has decisive advantages. Aluminium has an ideal ratio between weight and strength, it does not rust and is insensitive to magnetism. Its thermal conductivity is four times higher than steel.
Anti-theft protection
The Kensington Lock forms part of the anti-theft system. As with many other Notebooks, this Mini-PC can also be safely locked, ensuring long-term enjoyment from your Shuttle product.
Communication in the fast lane
The integrated gigabit LAN chipset opens up completely new possibilities for communication with no restriction on the speed of data transfer. Say goodbye to information bottlenecks, whether in the company network or for home Internet access.

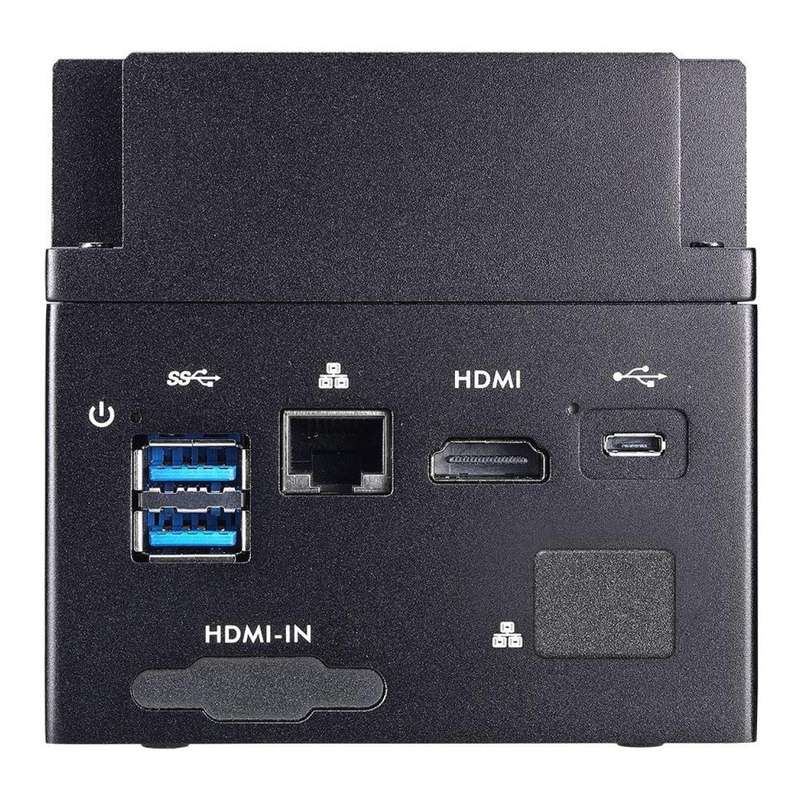

HDMI interface
Goodbye cable spaghetti! Modern flat-screen TVs and large-format TFT screens can be connected to this Mini-PC with just a single thin cable. Often the audio output is also transferred in brilliant quality via the HDMI cable.
Low energy consumption
Thrift is a virtue. In terms of power consumption this Mini-PC sets an example. It is not just good for the environment but for your pocket, too.
Card reader
Simply insert the memory card and you can access all stored photos and videos immediately.
For a longer life and more system stability
All the components of the highly integrated mainboard of this PC are fitted with modern solid capacitors, which offer six times the lifespan of normal capacitors.
Technical Specification
Product: Shuttle EDGE EN01J4
Product type: Mini PC
Processor frequency: 1.5 GHz
Processor family: Intel Pentium
Processor model: J4205
Internal memory: 8 GB 2400 MHz
Internal memory type: LPDDR4-SDRAM
Total storage capacity: 64 GB
Storage media: eMMC
Card reader: Integrated
On-board graphics adapter model: Intel HD Graphics 505
Product colour: Black
Weight: 480 g
Warranty: 30-Day Open Box
