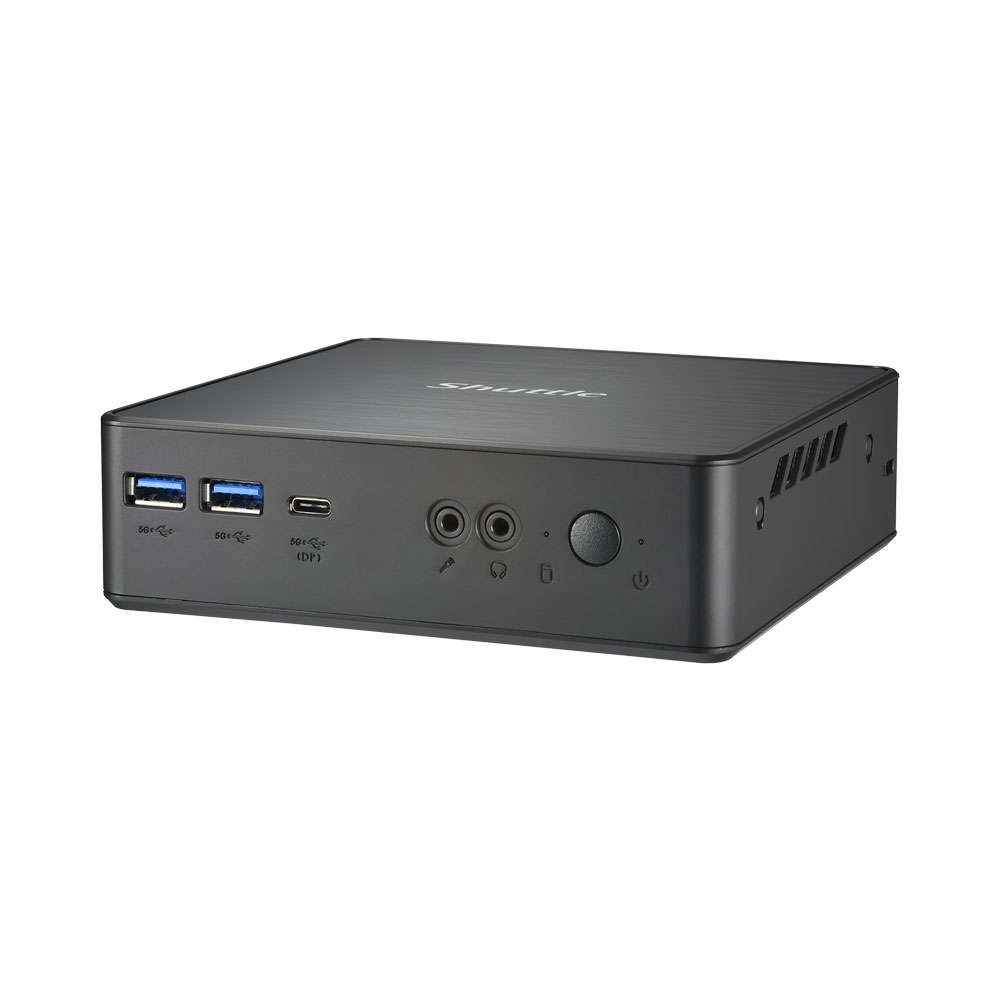

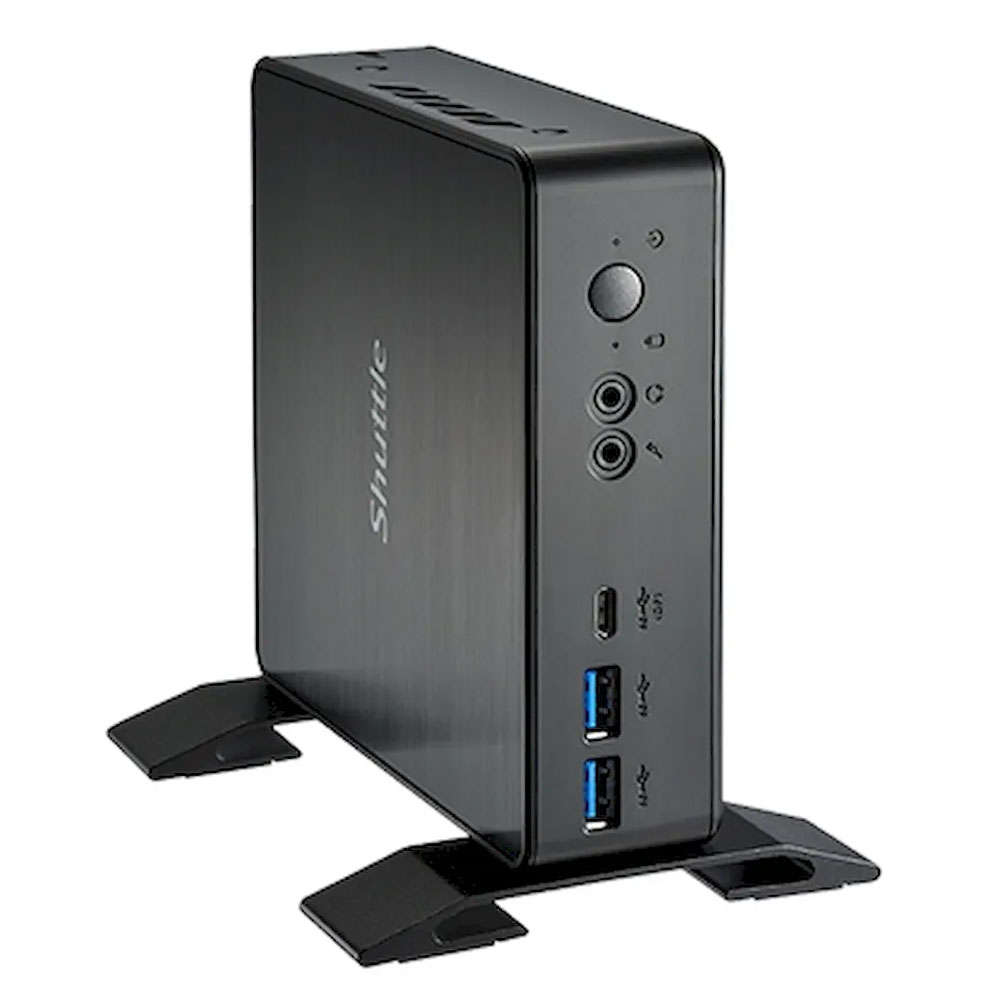

Shuttle XPC Nano NC40U Palm-Sized Barebone NUC PC - Intel Celeron
Multi-Tasking and Superior Performance for Your Business Needs
Shuttle's XPC nano NC40U series houses the performance hybrid architecture of Intel 12th Gen Alder Lake-U platform, capable of multi-tasking and parallelism and with Intel Iris Xe graphics for powering AI workloads, including taking the graphics and multimedia processing to a new level. Despite its 0.85l palm-size design, it can accommodate one 2.5" hard disk (up to 15mm) and enable additional M.2 SSDs or NVMe SSD installation for flexible storage capacity. Combined with rich I/Os such as USB3.2 Gen2, USB3.2 Gen1 and Intel Gigabit LAN, supporting triple display by the HDMI, DisplayPort and Type-C that increase the functionality to adapt to various business computing to suit digital signage, kiosk, edge computing and video conferencing.
FEATURES
Intel UHD Graphics for 12th Gen Intel Processors
Up to 64GB of DDR4 SO-DIMM memory
2× NVMe (RAID support), 1× SATA 2.5"
1× HDMI 2.0b, 1× DisplayPort 1.4a
2× M.2-2280, 1× M.2-2230
Gigabit Ethernet
2× USB3.2 Gen2 (10Gbps), 4× USB3.2 Gen1 (5Gbps), 1× USB3.2 Gen1 (5Gbps) Type-C
Always-On Jumper
Wall/VESA Mount Included
SPECIFICATIONS
Cooling System: Smart Fan
Processor: Intel Celeron 7305 or Intel i3-1215U / i5-1235U / i7-1255U
Graphics: Intel Iris Xe Graphics
Display Resolution Max.:
HDMI: 4096 × 2160 @60Hz
DisplayPort: 4096 × 2160 @60Hz
Display Output: 3× Independent Displays
Video Decoder: WMV9, AVC / H.264, JPEG / MPEG, HEVC / H.265, VP9, AV1
Memory: 2× DDR4 3200/2933/2666 MHz, Max. 64GB
Storage: 1× 2.5" HDD/SSD (max. 15 mm)
Expansion Slot:
2× M.2 2280, M Key
1× M.2 2230, E Key
Video Output:
HDMI Port: 1×
DisplayPort: 1×
Type-C: 1×
I/O Port:
USB3.2 Gen1/Gen2 (Front): 3× (Includes Type-C)
USB2.0 (Front): No
USB3.2 Gen1/Gen2 (Rear): Yes
USB2.0 (Rear): No
COM Port: No
Line out / Mic in: Yes
Operating System: Windows 10 / 11 64bit, Linux
NETWORK
LAN: Intel Gigabit LAN
WLAN: Optional
VESA Mount: Bracket included
Stand: Bracket included
Dimension (L × W × H): 142 × 142 × 42mm
Certification: CB, CE, BSMI, cTUVus, FCC, RCM, RoHS, VCCI
Operating Temperature: 0~50°C
Chassis: Plastic
POWER SUPPLY
Power Input: 19V DC
Bundled Adapter: 19V / 3.42A 65W External Adapter
