Shuttle XPC Slim XH610 Mini Barebone PC PC-NUC-XH610

Shuttle XPC Slim XH610 Mini Barebone PC PC-NUC-XH610

The Shuttle XPC slim Barebone XH610 is a real roomster considering its small footprint - one optical drive, two 2.5" storage drives and an M.2 SSD card can be installed into the robust steel chassis. In addition, it supports the powerful Gen. 12/13/14 Intel Core desktop processors with socket LGA1700 *). The built-in heatpipe cooling ensures the system runs quietly at maximum stability. Thanks to its great connectivity it meets the requirements of many applications that extends from office PC up to industrial applications. The system supports two digital displays with Ultra HD resolution, one VGA display, dual LAN (2.5G + 1G), four USB 3.2 Gen 1 and four USB 2.0 ports and up to five serial ports. With this high level of efficiency and flexibility - who needs a bulky tower PC anyway?

*Please Note: For Intel Core Gen13 and Gen14, a BIOS update might be necessary (to be performed with a compatible processor)

Specification & Features

• For Intel Core processors of the 12th generation (LGA1700)
• Up to 64 GB of DDR4 SO-DIMM
• Compact metal chassis 23.8 × 20 × 7.3 cm (DWH)

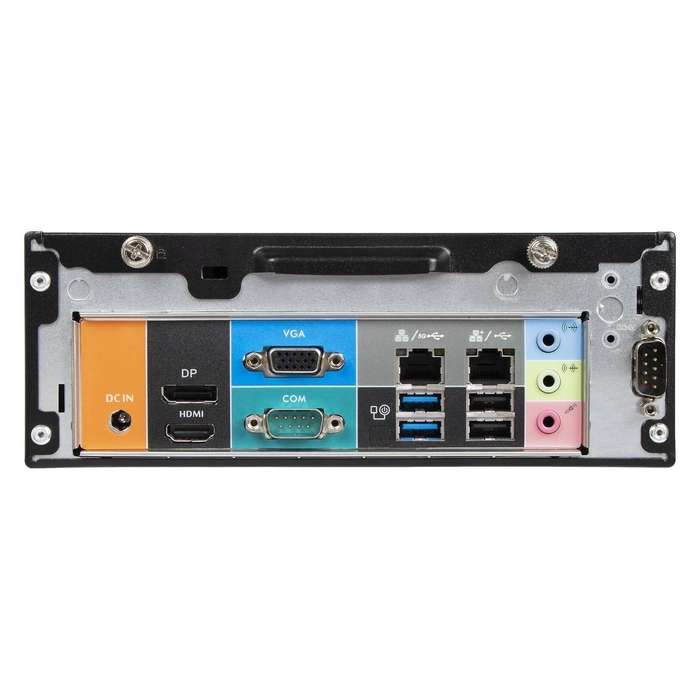

• 1× HDMI 2.0b, 1× DisplayPort 1.4a, 1× VGA for up to three monitors
• 1× M.2-2280 for NVMe SSD, 3× SATA for 2.5" HDD/SSD and slimline ODD
• 1× M.2-2230 for Wi-Fi and more
• 8× USB Type A, 1× USB Type C
• 2× COM (RS-232, RS-485) can be expanded to four ports
• Two RJ45 network ports (1× 2.5 Gbit, 1× 1 Gbit)
• External 120 watt power supply unit
• Always-on function, remote power-on connection
• Heat-pipe cooling system with dual fan
