SI4732 All Band Radio FM AM (MW And SW) And SSB (LSB And USB)... (TYPE: FINISHEDBOARDSPEAKERANTENNA)

20 available / new

R1,161.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3477

93.36 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

641133173

SELECTED OPTION:
TYPE: FINISHEDBOARDSPEAKERANTENNA

for more options in this item.

Features:
1) FM, AM (MW and SW) and SSB (LSB and USB); 2) Audio bandwidth filter 0.5, 1, 1.2, 2.2, 3 and 4Khz; 3) 22 commercial and ham radio bands pre configured; 4) BFO Control; and 5) Frequency step switch (1, 5 and 10KHz);

Specification:

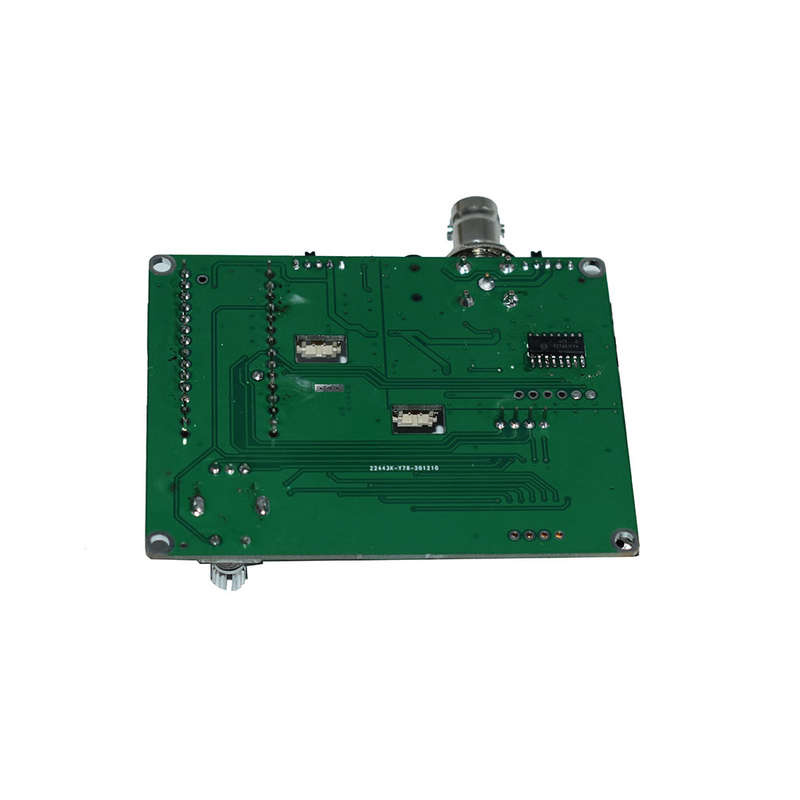

Use a 3.6V lithium battery 1000MAonly forAssembled version Support USB charging Audio output supports headset 3.5MM Support 8 ohm speaker 1.5W output FM supports earphone antenna Antenna interface uses BNC The PCB retains the SI4735 package, users can replace the chip by themselves, and the software is compatible

Band band[] = { {FM_BAND_TYPE, 8400, 10800, 10430, 10}, {LW_BAND_TYPE, 100, 510, 300, 1}, {MW_BAND_TYPE, 520, 1720, 810, 10}, {SW_BAND_TYPE, 1720, 3500, 1900, 1}, // 160 meters {SW_BAND_TYPE, 3500, 4500, 3700, 1}, // 80 meters {SW_BAND_TYPE, 4500, 5500, 4850, 5}, {SW_BAND_TYPE, 5500, 6300, 6000, 5}, {SW_BAND_TYPE, 6300, 7800, 7050, 5}, // 40 meters {SW_BAND_TYPE, 7800, 10000, 9600, 5}, {SW_BAND_TYPE, 10000, 11000, 10100, 1}, // 30 meters {SW_BAND_TYPE, 11000, 12500, 11940, 5}, {SW_BAND_TYPE, 12500, 13900, 13600, 5}, {SW_BAND_TYPE, 13900, 14500, 14270, 1}, // 20 meters {SW_BAND_TYPE, 14500, 15900, 15300, 5}, {SW_BAND_TYPE, 15900, 17900, 17600, 5}, {SW_BAND_TYPE, 17900, 18300, 18100, 1}, // 17 meters {SW_BAND_TYPE, 18300, 21900, 21200, 1}, // 15 mters {SW_BAND_TYPE, 21900, 26200, 24940, 1}, // 12 meters {SW_BAND_TYPE, 26200, 27900, 27500, 1}, // CB band (11 meters) {SW_BAND_TYPE, 27900, 30000, 28400, 1}}; // 10 meters

Package includes:

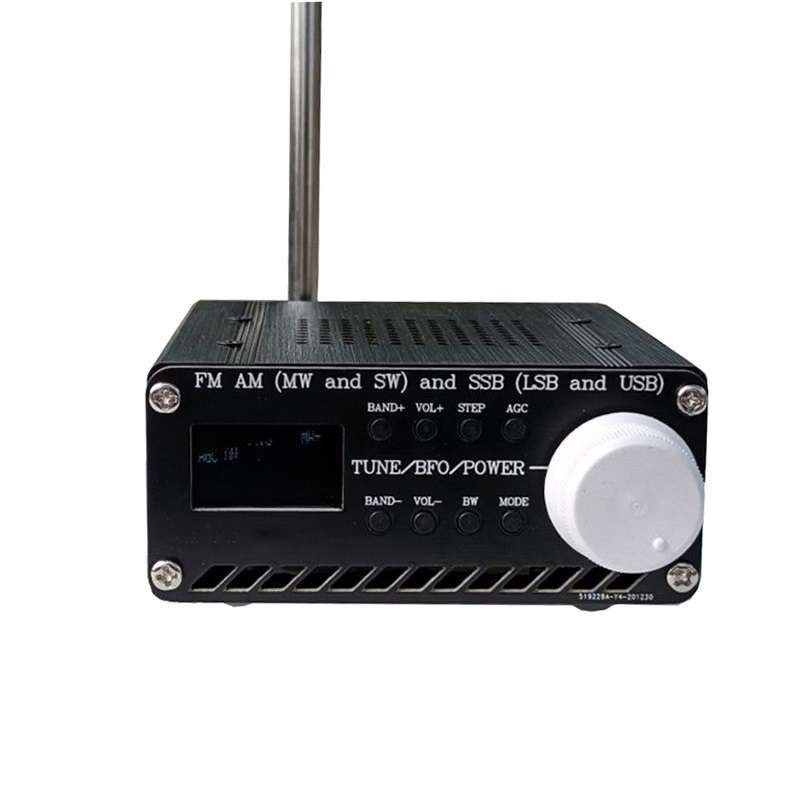

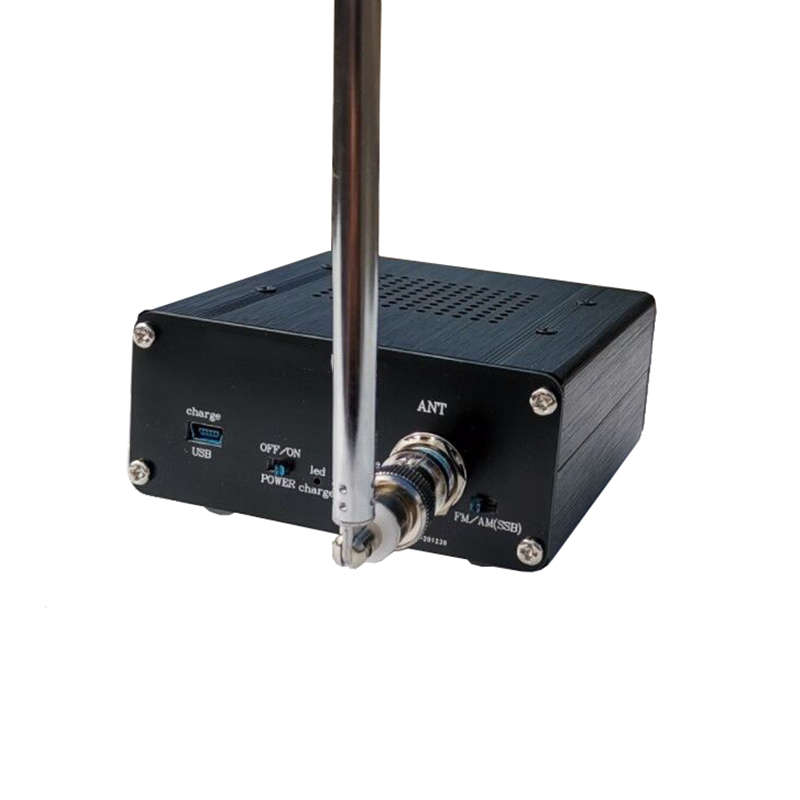

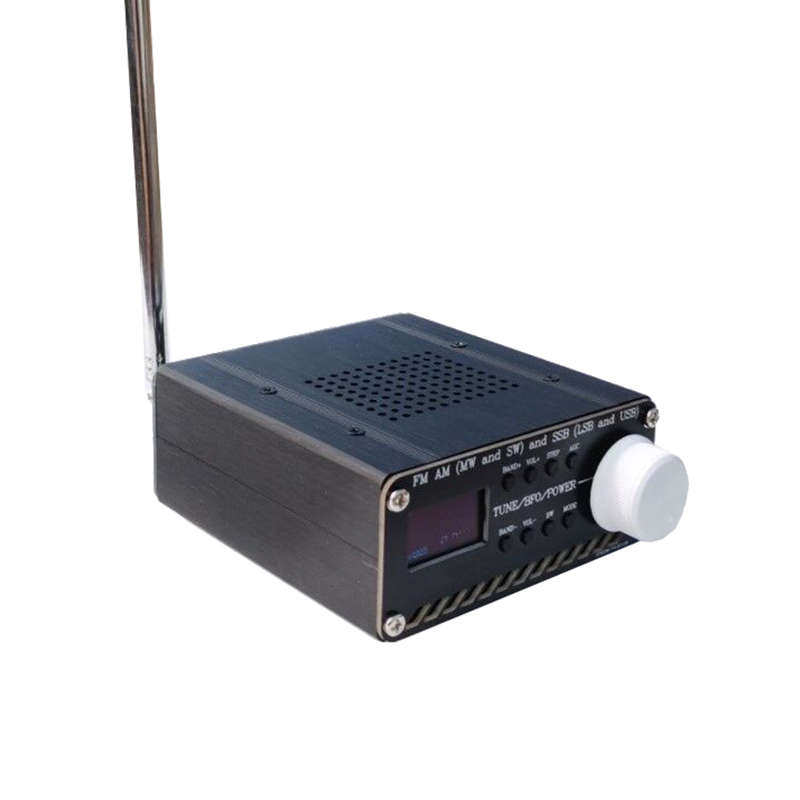

1 x Host with shell+Antenna(Battery included)
OR

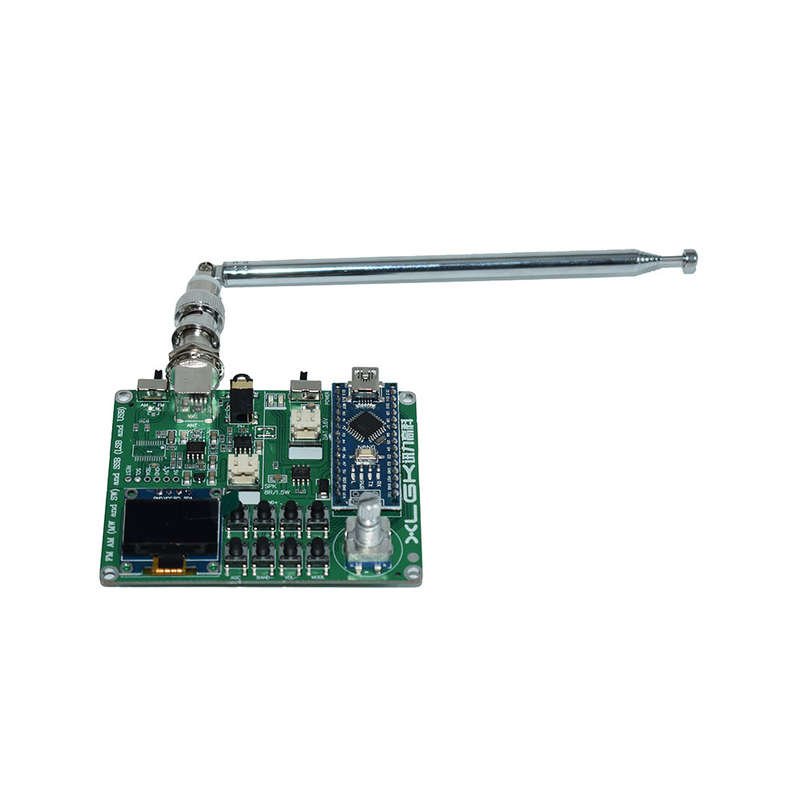

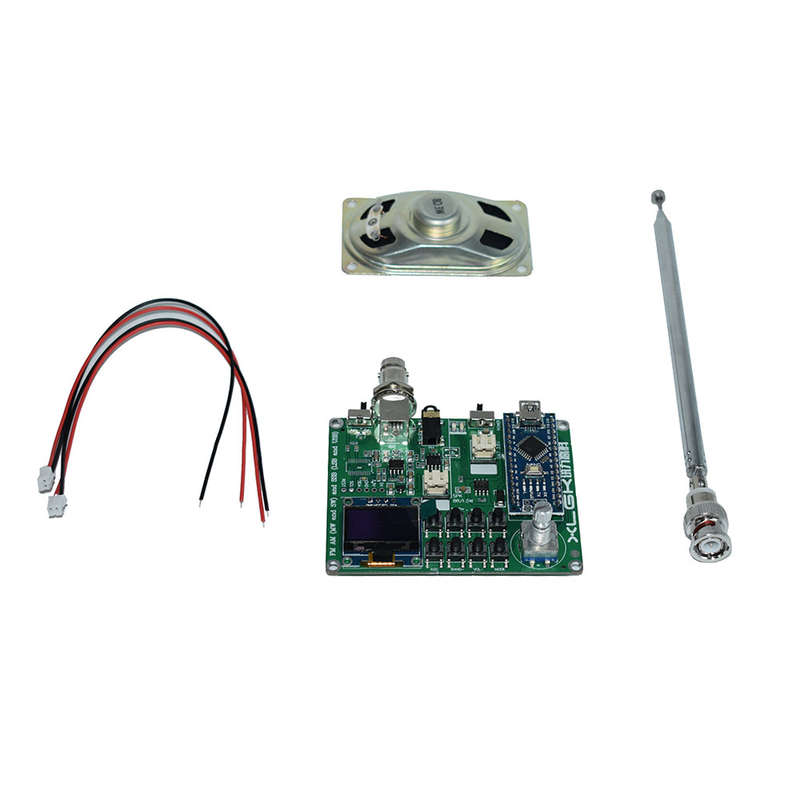

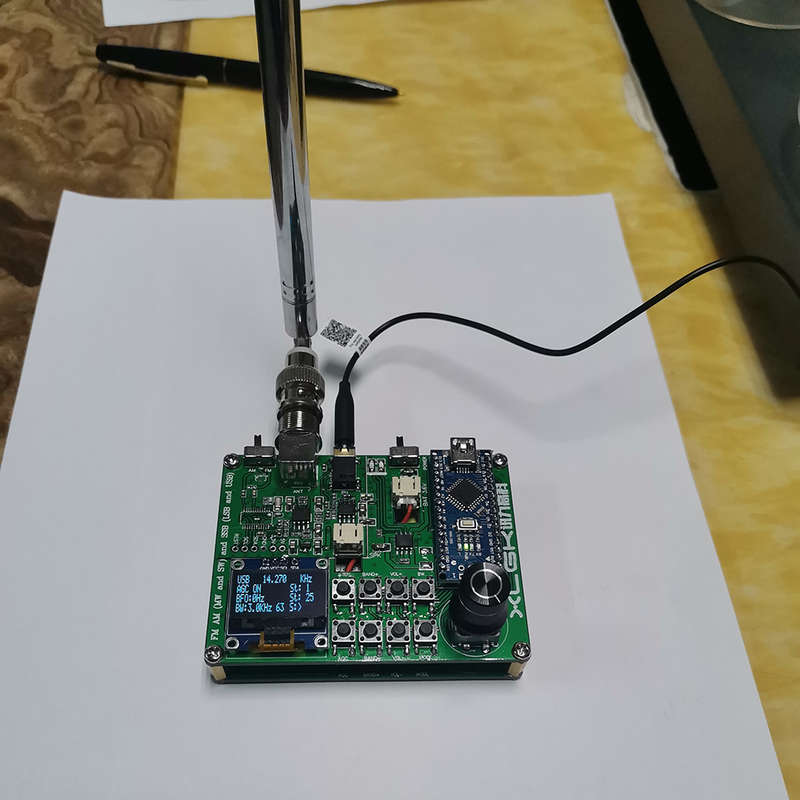

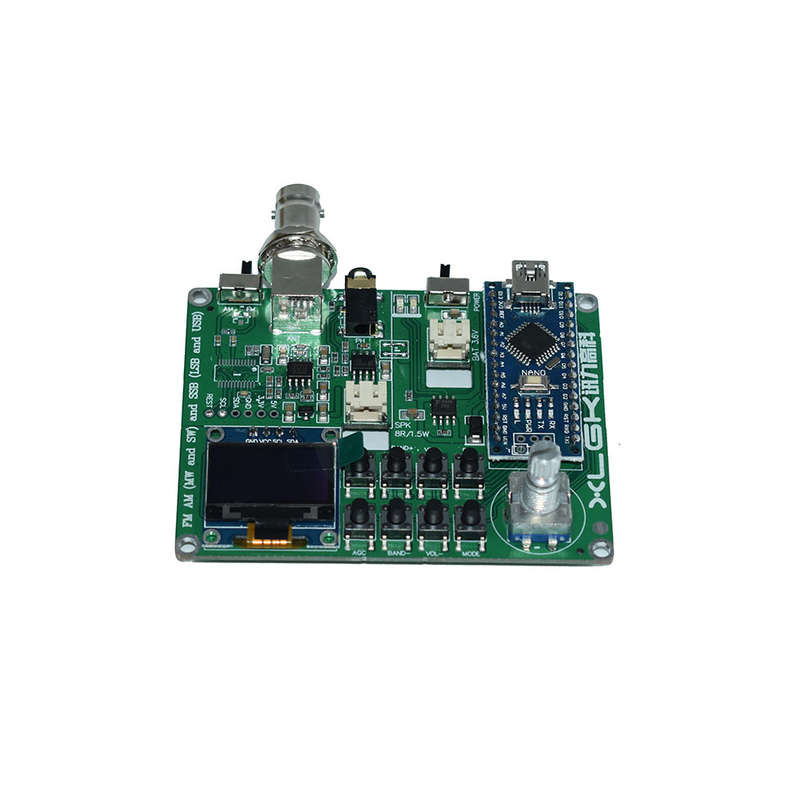

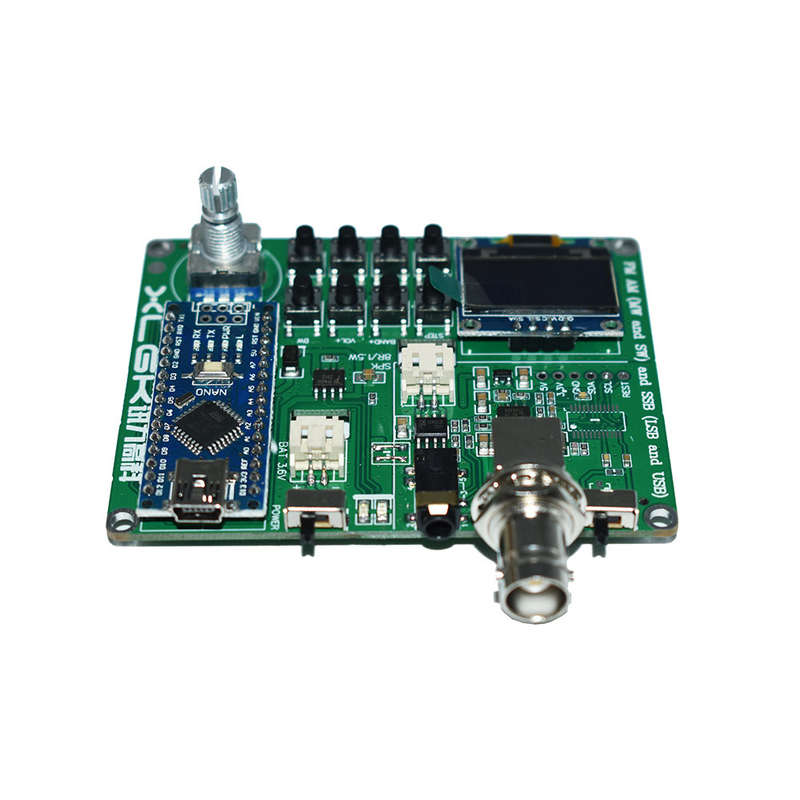

1 xFinished board+Speaker+Antenna(Battery not included)

Details picture:
