SI4732 All Band Radio FM AM (MW And SW) And SSB (LSB And USB) With A... (TYPE: HOSTWITHSHELLANTENNA)

SELECTED OPTION:
TYPE: HOSTWITHSHELLANTENNA

for more options in this item.

Features:
1) FM, AM (MW and SW) and SSB (LSB and USB); 2) Audio bandwidth filter 0.5, 1, 1.2, 2.2, 3 and 4Khz; 3) 22 commercial and ham radio bands pre configured; 4) BFO Control; and 5) Frequency step switch (1, 5 and 10KHz);

Specification:
Use a 3.6V lithium battery 1000MAonly forAssembled version Support USB charging Audio output supports headset 3.5MM Support 8 ohm speaker 1.5W output FM supports earphone antenna Antenna interface uses BNC The PCB retains the SI4735 package, users can replace the chip by themselves, and the software is compatible

Band band[] = { {FM_BAND_TYPE, 8400, 10800, 10430, 10}, {LW_BAND_TYPE, 100, 510, 300, 1}, {MW_BAND_TYPE, 520, 1720, 810, 10}, {SW_BAND_TYPE, 1720, 3500, 1900, 1}, // 160 meters {SW_BAND_TYPE, 3500, 4500, 3700, 1}, // 80 meters {SW_BAND_TYPE, 4500, 5500, 4850, 5}, {SW_BAND_TYPE, 5500, 6300, 6000, 5}, {SW_BAND_TYPE, 6300, 7800, 7050, 5}, // 40 meters {SW_BAND_TYPE, 7800, 10000, 9600, 5}, {SW_BAND_TYPE, 10000, 11000, 10100, 1}, // 30 meters {SW_BAND_TYPE, 11000, 12500, 11940, 5}, {SW_BAND_TYPE, 12500, 13900, 13600, 5}, {SW_BAND_TYPE, 13900, 14500, 14270, 1}, // 20 meters {SW_BAND_TYPE, 14500, 15900, 15300, 5}, {SW_BAND_TYPE, 15900, 17900, 17600, 5}, {SW_BAND_TYPE, 17900, 18300, 18100, 1}, // 17 meters {SW_BAND_TYPE, 18300, 21900, 21200, 1}, // 15 mters {SW_BAND_TYPE, 21900, 26200, 24940, 1}, // 12 meters {SW_BAND_TYPE, 26200, 27900, 27500, 1}, // CB band (11 meters) {SW_BAND_TYPE, 27900, 30000, 28400, 1}}; // 10 meters

Package includes:

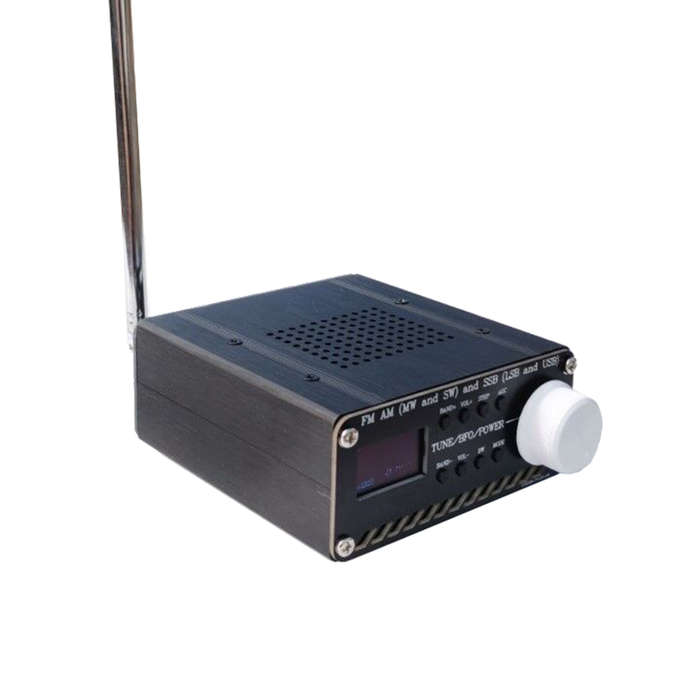

1 x Host with shell+Antenna(Battery included)
OR

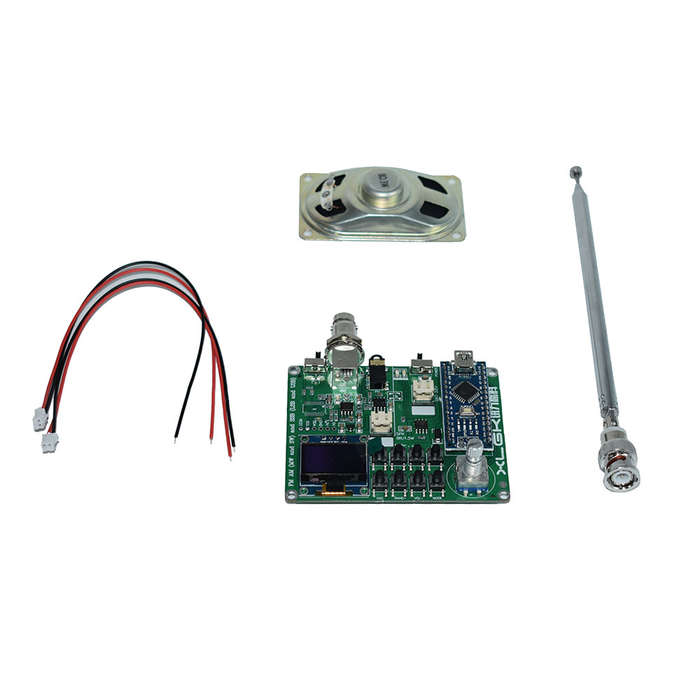

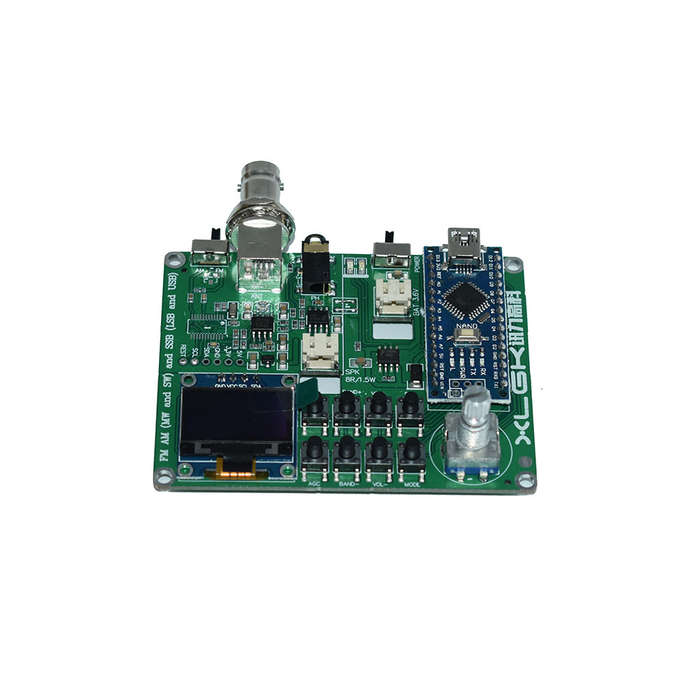

1 xFinished board+Speaker+Antenna(Battery not included)

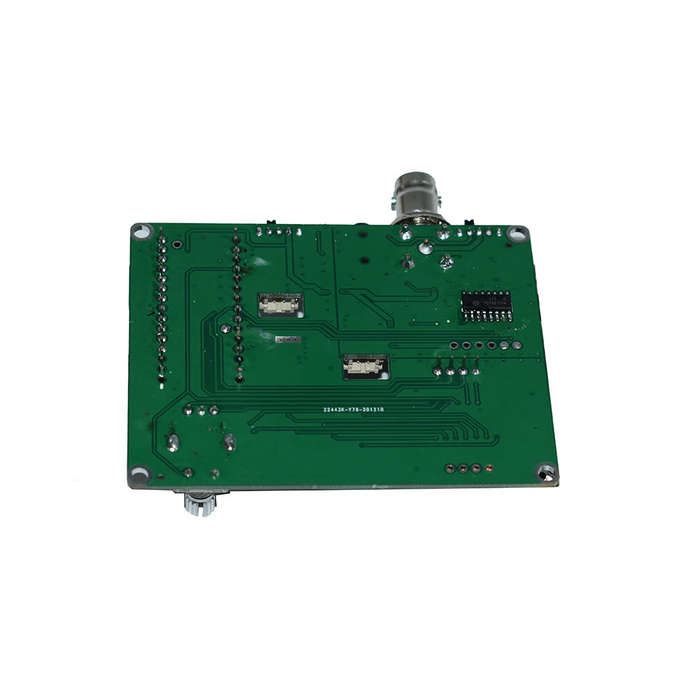

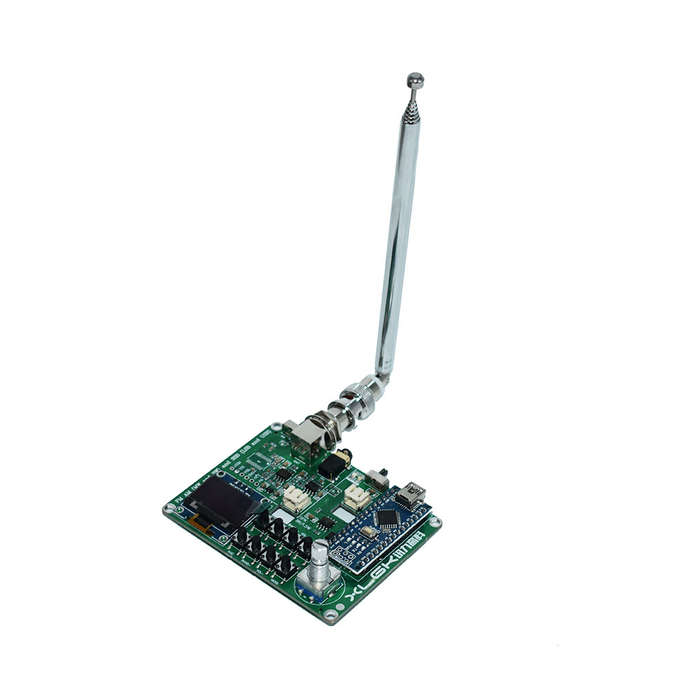

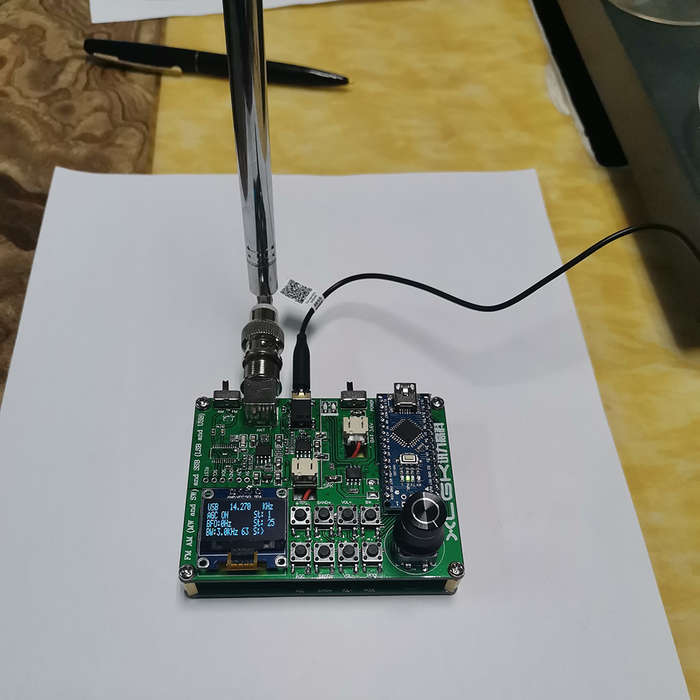

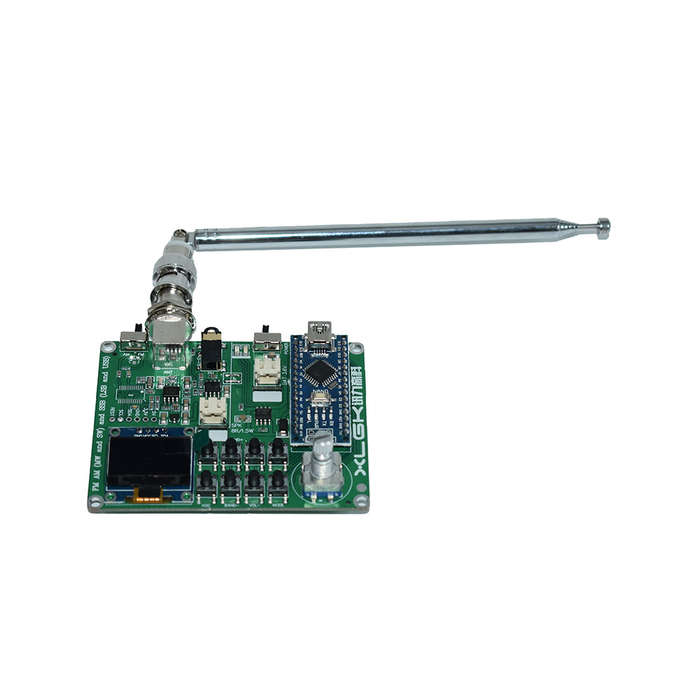

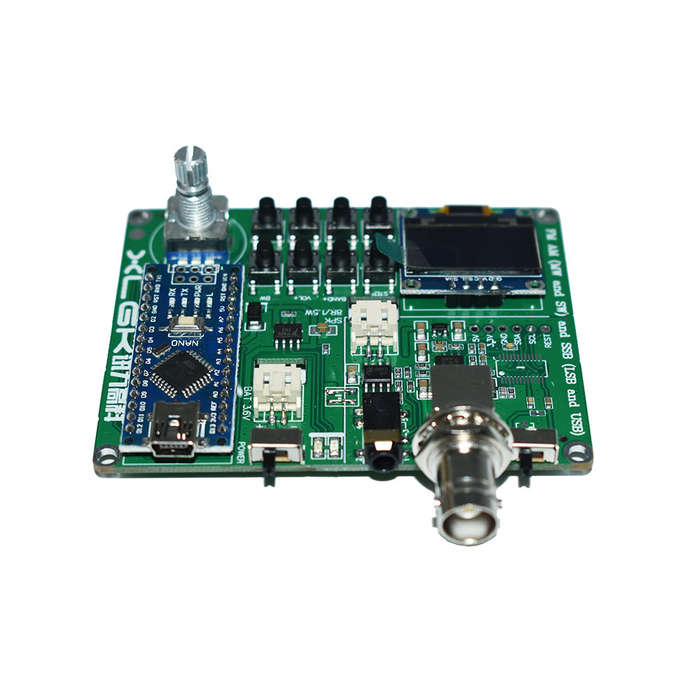

Details picture:
