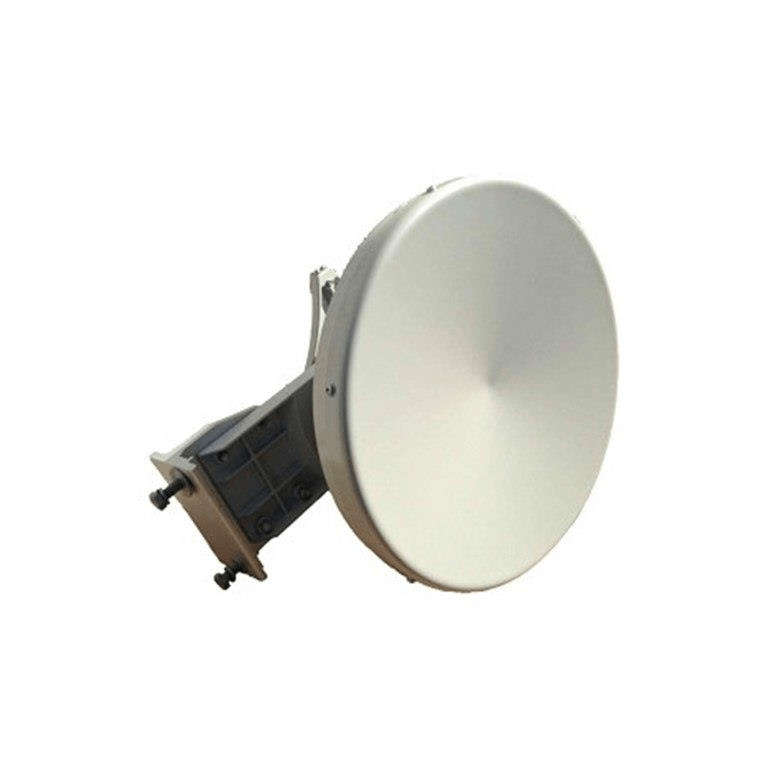

SIAE ANTSP12 17GHz 45dBi 120cm Outdoor Parabolic Dish SI-1745-DISH

1.2m Ultra High Performance Low Profile Antenna, single-polarized, 17.7÷19.7 GHz

Technical Specification

General

Antenna Type: Ultra High Performance Low Profile Antenna, Single-Polarized Antenna
Diameter, nominal: 1.2m
Polarization: Single
Reflector Construction: One-piece reflector
Antenna Color: RAL7047
Radome Color: RAL7047
Radome Material Description: ABS

Electrical

Frequency: 17.7÷19.7 GHz
Gain, Top:  45.1 dBi
Gain, Mid:  44.7 dBi
Gain, Low:  44.2 dBi
Front-to-Back Ratio: 73 dB
Cross Polar Discrimination (XPD): 30 dB
Beamwidth: 0.9°
VSWR: 1.30
Return Loss: 17.69 dB

Mechanical

Wind Velocity Operational: 162km/h
Wind Velocity Survival Rating: 250km/h
Fine Azimuth Adjustment: Coarse360° Fine ±15°
Fine Elevation Adjustment: Fine ±10°
Mounting Pipe Diameter: 114 mm
Ice-load: 25.4 mm
Operational Temperature: -45÷+75 âƒ
Side Struts, Included: 1
Net Weight: 45 kg

Wind Forces at Wind Velocity Survival Rating

Axial Force(FA): 4492 N
Side Force(FS): 2217 N
Twisting Moment(MT): 2044 N•m
Zcg without Ice: 220 mm
Zcg with 1"(25.4mm) Ice: 335 mm
Weight with 1"(25.4mm) Ice: 125 kg
