Side-mounted Liquid Water Level Sensor Right Angle Float Switch

Package weight: 0.00 kg
Description :
Side-mounted Liquid Water Level Sensor Right Angle Float Switch
Specification :
This Float Switch is a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other device.
Use them with hydroponics, saltwater tank, freshwater tank, gardening, aquariums for power head control, pet bowls, fish tanks, filtration, heating, pumps, ponds, basement alarms, boats, air condition drain pans, pressure washers, carpet cleaning mach,reef aquarium, fluid control, ice machines, coffee pots, marine, automotive, automobiles, tropical fish tanks, evaporator coils, condensation line, in relays, or what ever your project may be.
Cable Length : 37.5cm
Max Breakdown Voltage : 220V DC
Max Switching Voltage : 100V DC
Maximum Switching Current : 0.5 A
Max Load Current : 1.0 A
Max Contact Resistance : 100 mΩ
Temp Rating : -10~+85°C
Installation : top or bottom mounted vertically
Use medium : water, oil, chemical medium
Pressure range : 0.2MPa

Package includes :
1 x Right Angle Float Switch

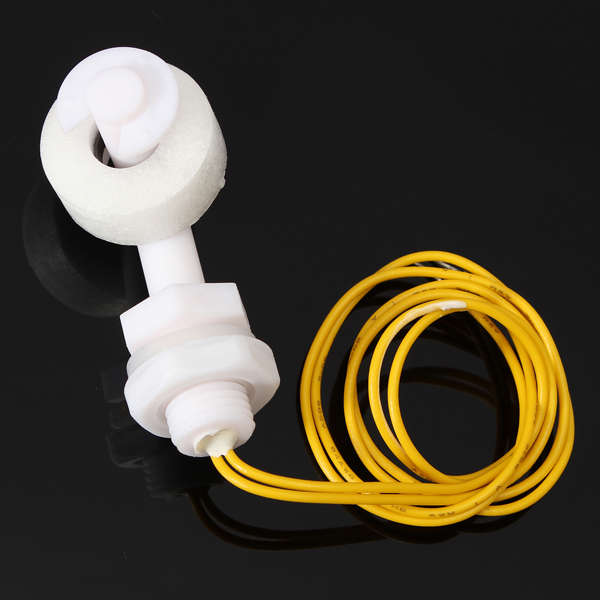

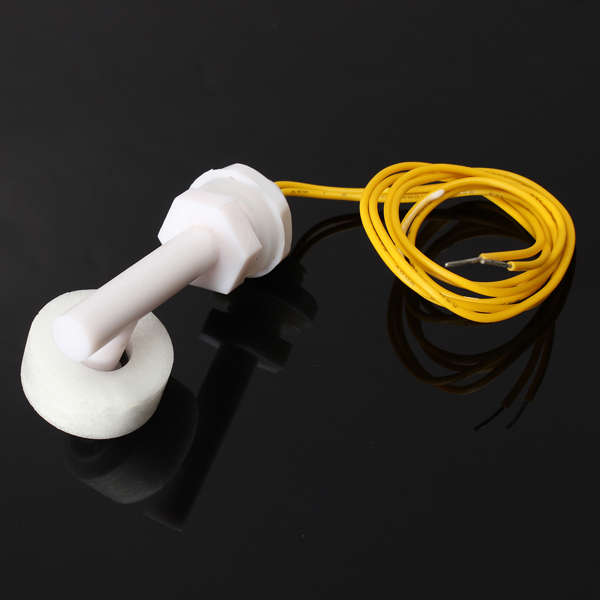

Details pictures :
