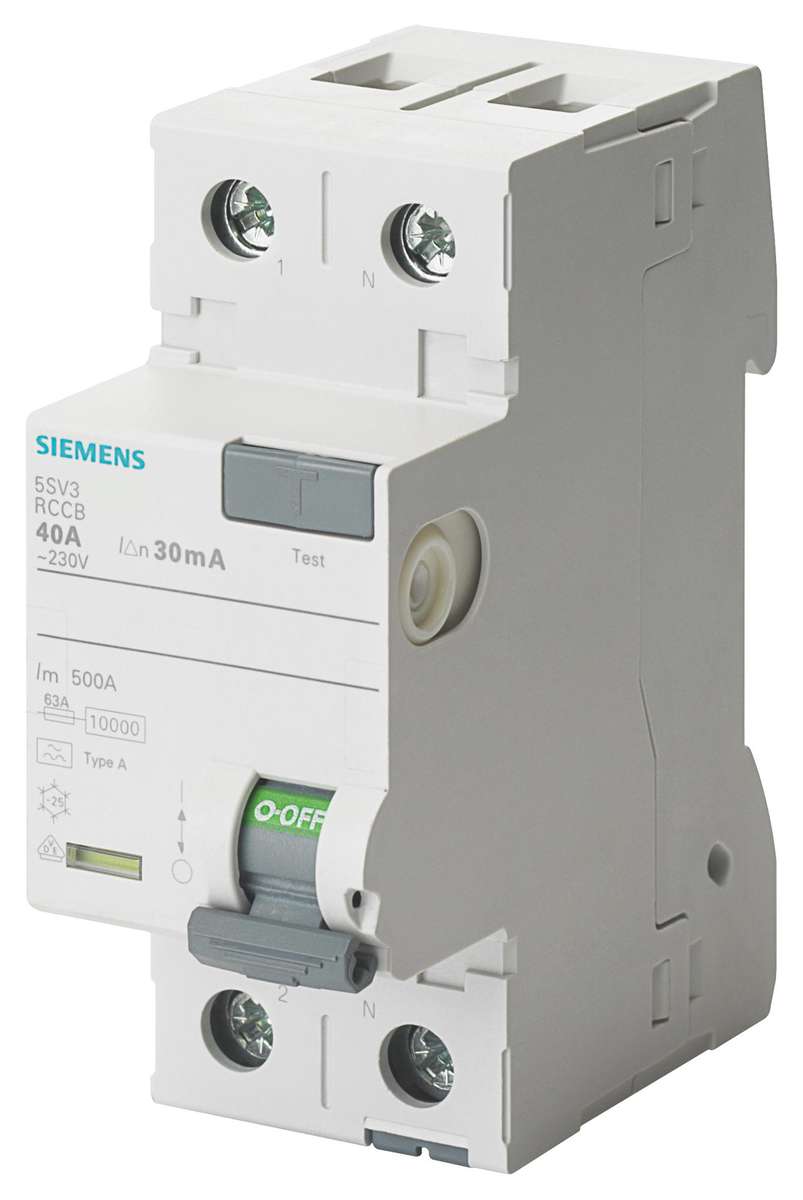

Siemens (5SV3314-6) Circuit Breaker, SENTRON, 230 V, 40 A, 2 Pole, 500 A

Product Range: SENTRONVoltage Rating VAC: 230VCurrent Rating: 40ANo. of Poles: 2 PoleOverload Current: 500AModelproduct brand name SENTRONproduct designation RCCBdesign of the product InstantaneousGeneral technical datanumber of poles 2size of installation devices / according to DIN 43880 1mechanical service life (switching cycles) / typical 10 000short-circuit current / of series fuse / maximum permissible 63 Ashort-circuit current rating 10 kAswitching function / short-term delayed Noovervoltage category IIISupply voltagesupply voltage / for testing equipment / minimum 195 Vvalue range / of the supply voltage frequency 50 Hzvalue range / of the operating frequency 50 Hzvalue range / of the supply voltage / at AC 230 VProtection classprotection class IP IP20, if the distribution board is installed, with connectedconductorsSwitching capacityswitching capacity current- according to IEC 61008-1 / rated value 0.5 kADissipationpower loss [W]- for rated value of the current / at AC / in hotoperating state / per pole2.6 W- maximum 5.2 WCurrenttripping fault current / rated value 30 mAoperational current- at 40 °C / rated value 40 A- at 45 °C / rated value 38.1 A- at 50 °C / rated value 35.59 A- at 55 °C / rated value 32.29 A- at 60 °C / rated value 28.19 A- at 65 °C / rated value 23.3 A- at 70 °C / rated value 17.6 A- at AC / rated value 40 Aresidual current type Alet-through current / permissible 5 200 Adetailsproduct feature / silicon-free Yesproduct extension / installable / supplementary devices YesConnectionsconnectable conductor cross-section / solid- minimum 0.75 mm²- maximum 35 mm²connectable conductor cross-section / stranded- minimum 0.75 mm²- maximum 35 mm²tightening torque / with screw-type terminals- minimum 2.5 N·m- maximum 3 N·mposition / of power supply cord top or bottom
