Description

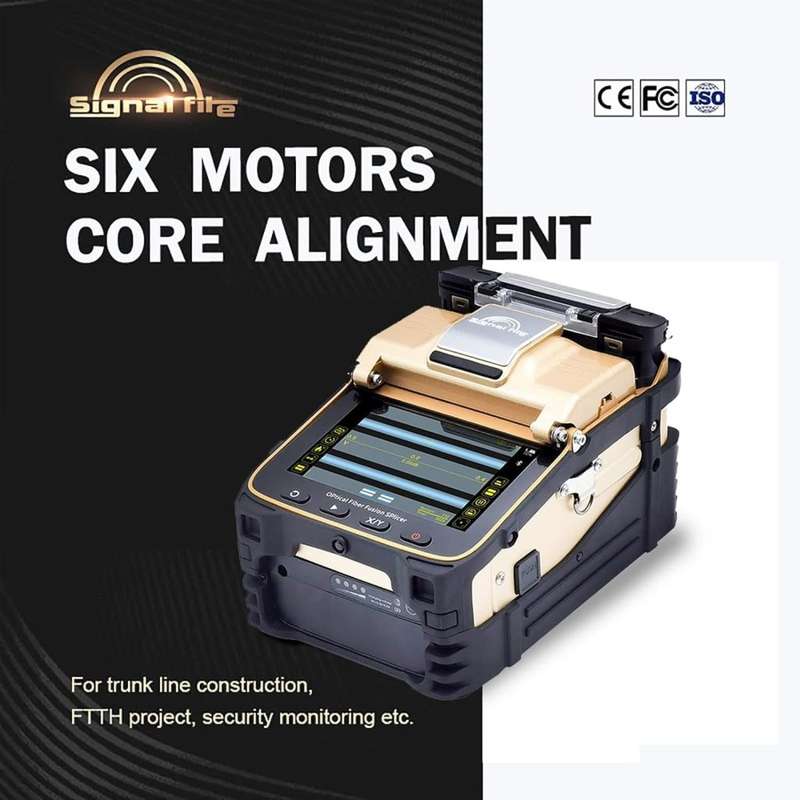

The AI-8 use the latest core alignment technology with auto focus and six motors, it is a new generation of fiber fusion splicer.
It is fully qualified with 100 km trunk construction, FTTH project, security monitoring and other fiber cable splicing projects.
The machine uses industrial quad-core CPU, fast response, is currently one of the fastest fiber splicing machines in the market.
With 5-inch 800X480 high-resolution screen, the operation is simple and intuitively.
Up to 300 times focus magnifications, making it is very easy to observe the fiber with naked eyes.

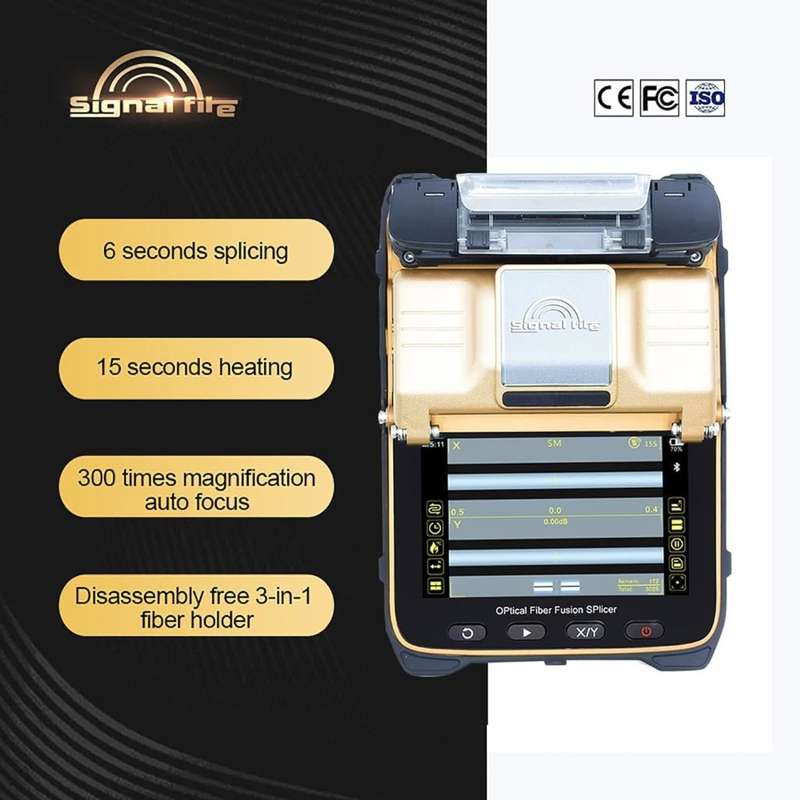

6 seconds speed core alignment splicing.
15 seconds heating, the working efficiency increased by 50% compared to ordinary splicing machines.
Smart Phone App both Android & IOS allows the Technician the Ability to follow Instructions without touching the Splicer.
Save all your Measurements on the Cloud for later reference or Downloading.
Splicer can be remotely Locked, allowing for extra Security as well as eliminating misuse.
Factory fitted with Pair of Electrodes (3000 splicers)
Applicable Fibers: SM (G.652&G.657) ?MM?G.651??DS (G.657) ?NZDS?G.655?
Splice Loss: 0.025dB?SM??0.01dB?MM?0.04dB?DS/NZDS?
Focus mode: 6 motors Auto focus
Fiber alignment: Core/cladding alignment Manual alignment
Typical splicing time: 5S
Typical heating time: 15S Fast heating function, heating time can be set
Automatic heating (Preheating), heating programs(max.10)
Control technology: Real-time control and calibration of fusion ARC
Return loss: Better than 60DB
Fiber diameter : Cladding Diameter 80-150?m?Coating Diameter 100-1000?m
Fiber Cleave Length: Coating less than 250 m?5-16mmCoating less m250-1000?m:16mm
Shrinkable tube: 60mm?50mm?40mm?25mm
Boot time: 1 second
Tension Test: Standard 2N

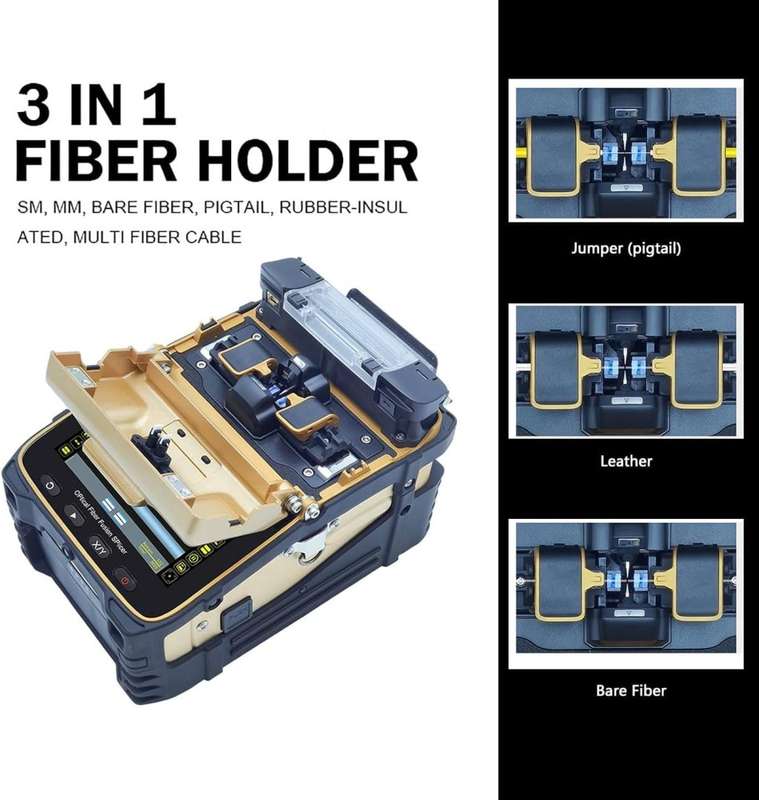

Fiber holders: 3 in 1 fiber holder?SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable
Magnification: 300 for X or Y, 150 for XY view
Screen : 5-inch TFT colour display
Software update length : Automatically update, Update by a key
Splicing Mode: Normal / high precision splicing (splicing programs max 100)
Splicing method: Fully automatic, step by step splicing
Splicing record storage: Synchronize to the phone, the server to cloud storage unlimited
Built-in battery: 7800 mAh high-capacity lithium battery, charging time?3.5 hours, continuous splicing, and heating about 240 times
Power supply: Input AC100-240V 50 / 60HZ, output DC13.5V / 4.8A, the current power mode can be identified, real-time detection of battery power
Operating Conditions: Temperature -15 ~ +50 ?, humidity: Product protection: Waterproof IP 22, dust proof IP54, shock-resistant

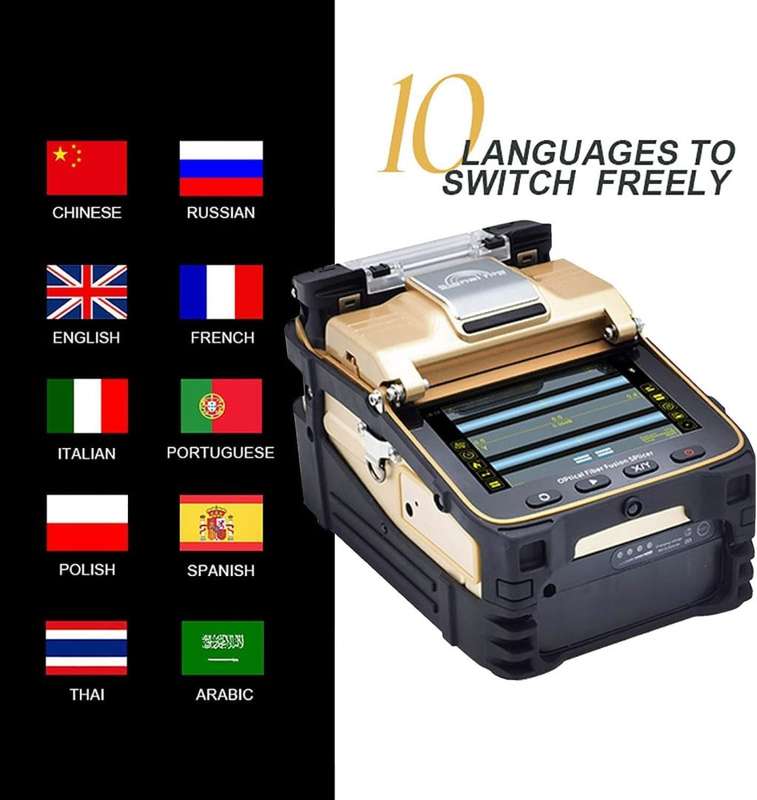

Language setting: 10 languages to switch freely
Visual Fault Locator Power:15mw,2hzflashing And Constantly Bright Mode
Optical Power Meter: Wavelength:850nm?1300nm?1310nm?1490nm?1550nm?1625nm / Measuring Range: - 70 ~ +6db Absolute Error:
For this item to be returned it must accompany a copy of the purchaser's Recognised Fiber Optic Certificate

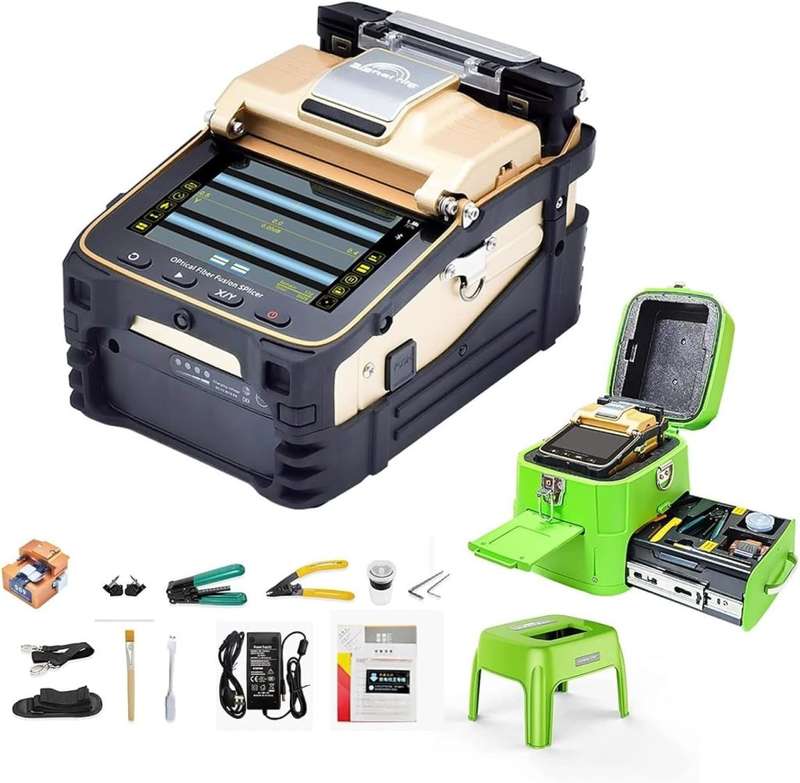

What's in the box
1 x Fusion Splicer, Fiber Tools
1 x Battery Charger
1 x Carry Strap and 4in1 Fiber Stripping Tool
6 x Additional Electrodes
1 x Clip On Led Light

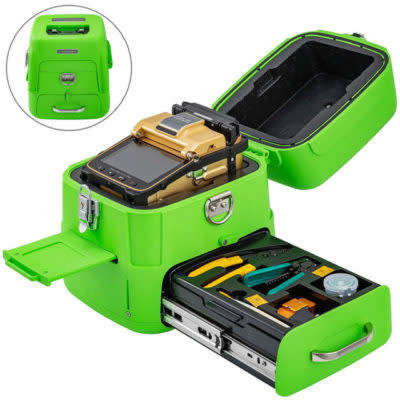

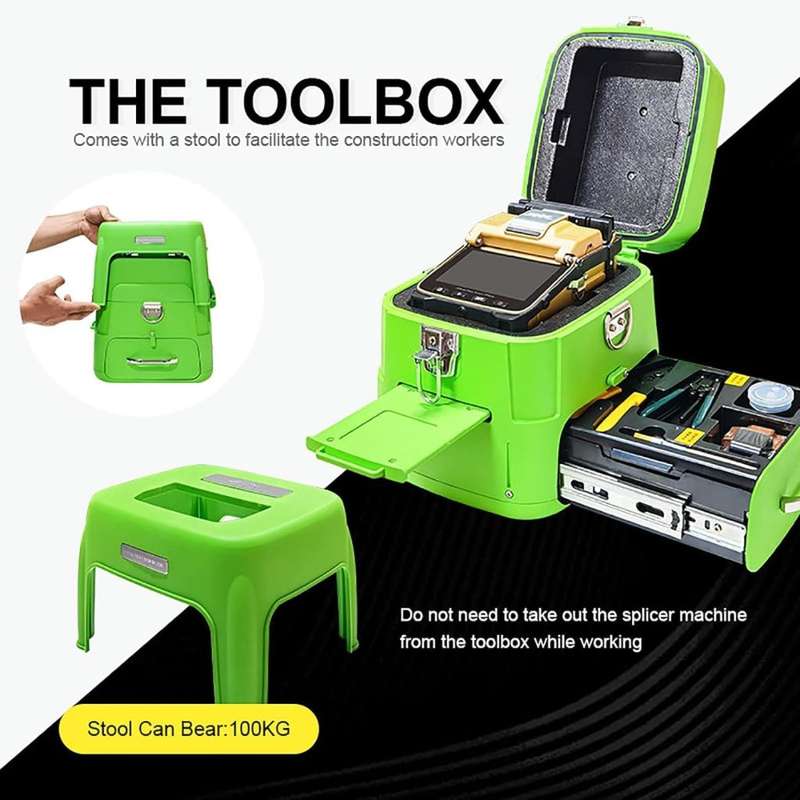

1 x Seat/Stool - attached to carrycase
