Silicon Carbide Hot Surface Ignitor120v Replacement for Furnace Hot Surface Ignitor Igniter Replace

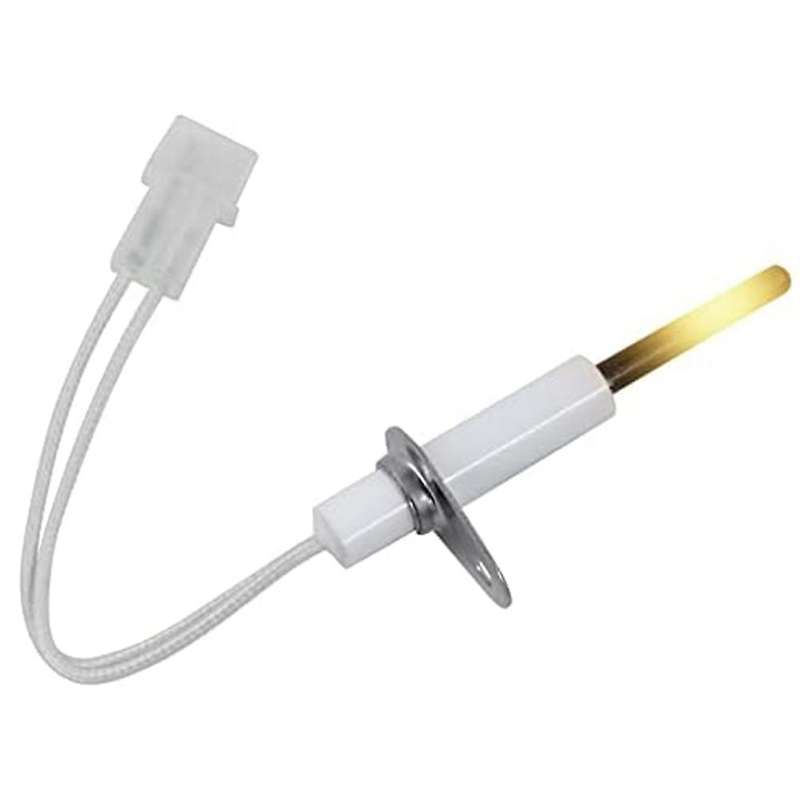

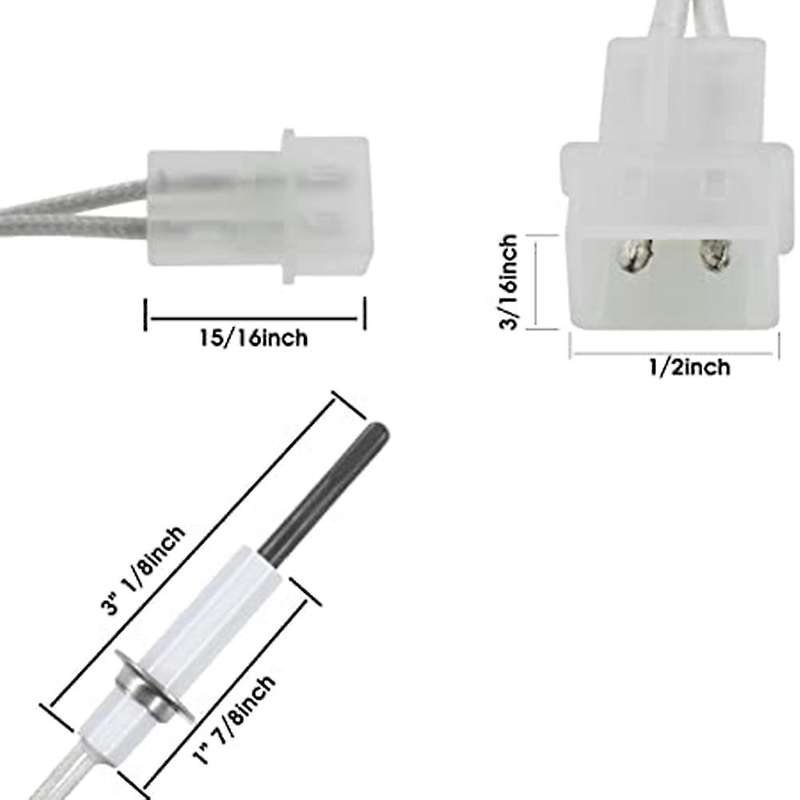

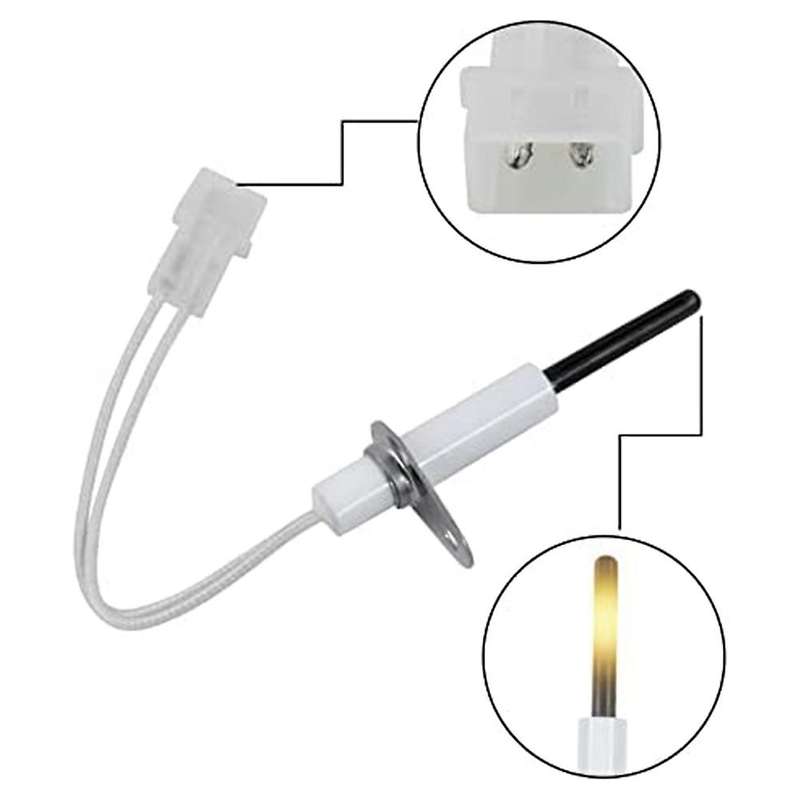

The hot surface ignitor is premium nitride construction, White high temperature coated leads, part number spec lead size connector for quick mountRated voltage: AC 120V +\/- 10%-15%.50\/60HZ; Coldresistance:18-40 ohm (ohm); Rated current at 17 sec: 1.1-1.2 amps,voltage:l120v-132v. You can measure whether the Hot Surface Ignitor is working properly with a multimeter.Hot side igniter\/igniter temperature: 1100Celsius at 102V\/ 17 seconds . 1180Celsius at 120 V\/ 17 seconds , 1400Celsius at 132 V\/ 17 seconds .Common repair replacement with HVAC CONTROLS, Janitrol, Furnace, Janitrol Furnace, etc Furnace Hot Surface Ignitor\/IgniterCompatible models: DMS90453BXA, P1256701F , P1256707F , DMS90703BXA, P1256702F , P1256708F , DMS90704CXA, P1256703F , P1256709F , DMS90904CXA, P1256704F , P1256710F , DMS90905DXA, P1256705F , DMS91155DXA, P1256706F , GCS90453BXA, P1257201F , P1257207F , GCS90703BXA, P1257202F , P1257208F , GCS90904CXA, P1257204F , P1257209F , GCS91155DXA, P1257206F , GCV90704CXA, P1257803F , GCV90905DXA, P1257805F , GDS80453AN, GDS80453ANAA , GDS80453AX, etc Item IgniterGeneral Silicon Nitride Hot Surface Igniter for \/NG Type , and easy to replace and install.type:BColour:WhiteMaterial:MetalPackage Contents:1 x furnace replacement ignitorsOnly the above package content, other products are not included.Note: Light and different displays may cause the color of the item in the a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
