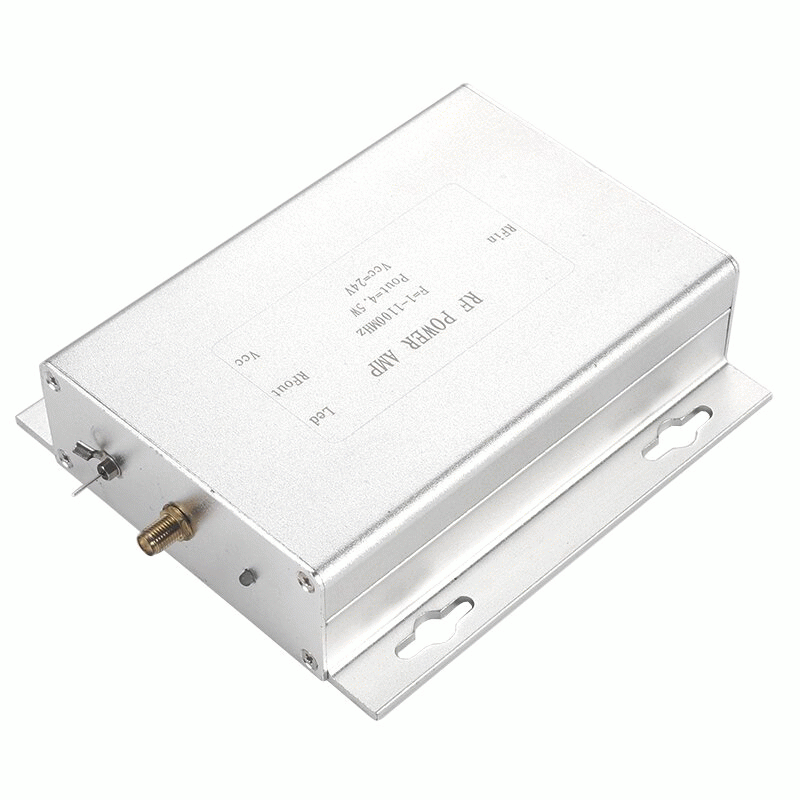

Specifications:
Operating Frequency: 1-1100MHz
Operating Voltage: 24-26V
Operating Current: 400-600mA
Gain: 32-36dB
Output Power: 36.5dBm (Typical 4W), Maximum 5W
Operating Class: Class A Linear
Connector Type: SMA Female
Dimensions: 120x130x35mm (excluding connectors)
Weight: 300g
Features:
1.Wide Frequency Range: This linear RF power amplifier operates across a broad frequency range from 1MHz to 1100MHz, making it versatile for various applications. Its wide range ensures compatibility with numerous devices and systems, providing robust amplification for different signals.
2.High Gain and Power Output: Offering 32-36dB of amplification gain, this power amplifier significantly boosts signal strength. With an output power of 36.5dBm (4W typical) and a maximum of 5W, it ensures strong and clear signal transmission, ideal for demanding RF applications.
3.Stable Class A Operation: Operating in Class A linear mode, this amplifier delivers consistent and reliable performance. The Class A design ensures minimal distortion and high efficiency, making it suitable for applications requiring precise and high-quality signal amplification.
4.Standard SMA Connectors: Equipped with SMA standard female connectors, this amplifier ensures secure and stable connections. The connectors are designed for easy integration into existing setups, providing flexibility and ease of
