Product overview:

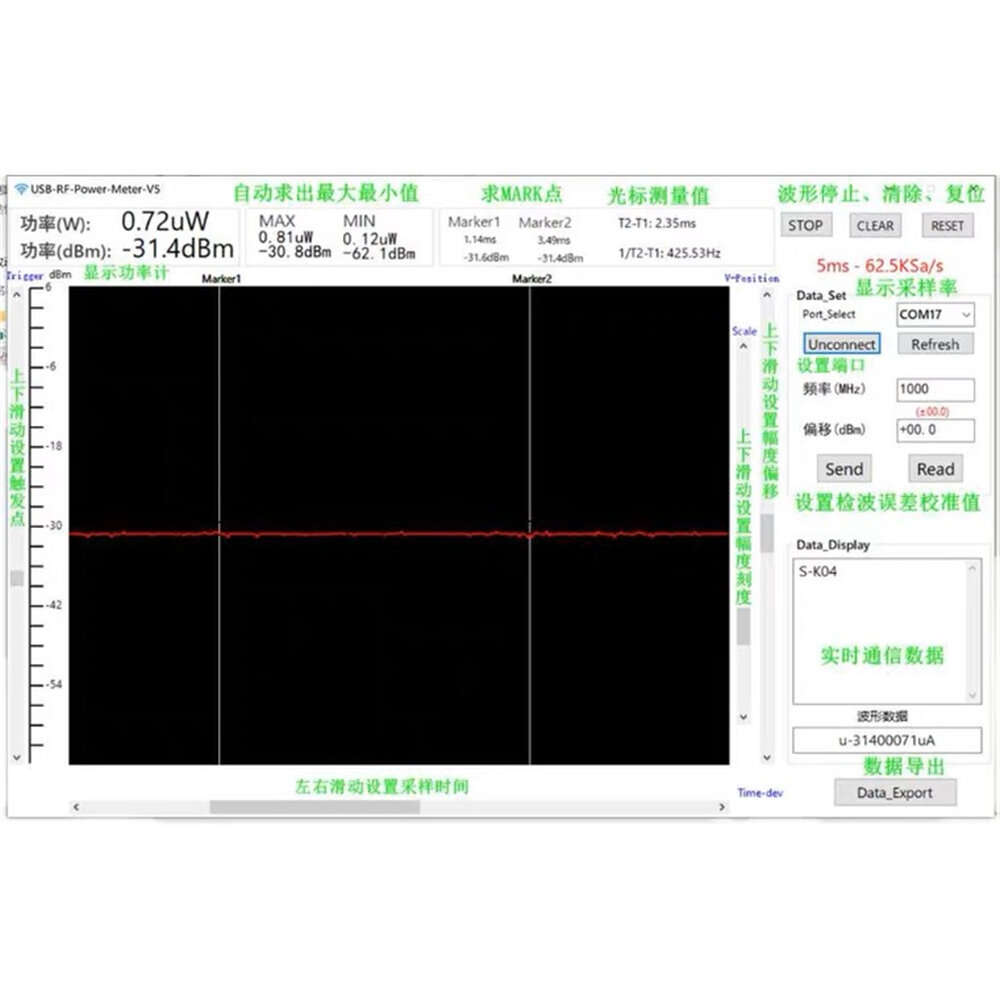

The RF-Power-Meter-V5.0 series is a high-performance low-cost portable USB simple radio frequency power meter. It is equipped with 5V power supply and data communication via USB. Easy to use, small size, easy to carry, stable performance, high accuracy, preset offsets, wide dynamic range, fast measurement speed. The software supporting this power meter allows users to configure the power meter on the PC and makes data recording and sharing simple.
Advantages of RF-Power-Meter-V5.0 RF power meter:
1. Support a variety of high-speed dynamic acquisitions, up to 500kbps (2uS);
2. Support up to 10GHz RF signal acquisition function;
3. With 2 MARK cursor functions, it is convenient to measure the modulation pulse width;
4. The function of automatically finding the maximum and minimum values;
5. The maximum storage depth is 500 points;
6. Support pauses, data save and export functions.
Product application:
Calibration of radio frequency instruments;
Testing and maintenance of radio frequency equipment;
Measurement of standing wave ratio of radio frequency circuit (adding feedback bridge);
Measurement of return loss of radio frequency circuit;
Interference detection between wireless communication equipment;
RSSI (received signal strength indicator) and transmission power level detection;
Performance evaluation of step attenuator;
Measurement of amplifier gain and network attenuation;
Measurement of forward power and reflected power in directional coupler;
Power measurement of GSM signal modulated by GMSK*;
Specification:
1. Measuring power range -60+0 dBm (where 0 to -40dbm has good linearity);
2. Measurement power resolution ±0.1 dBm;
3. The measuring frequency range is 100K10GHz (different models have different frequency ranges);
4. Input impedance: 50;
5. Dynamic range: 60dB;
6. Working voltage 5VDC (power supply via TYPE-C line);
7. Charging current: 100mA;

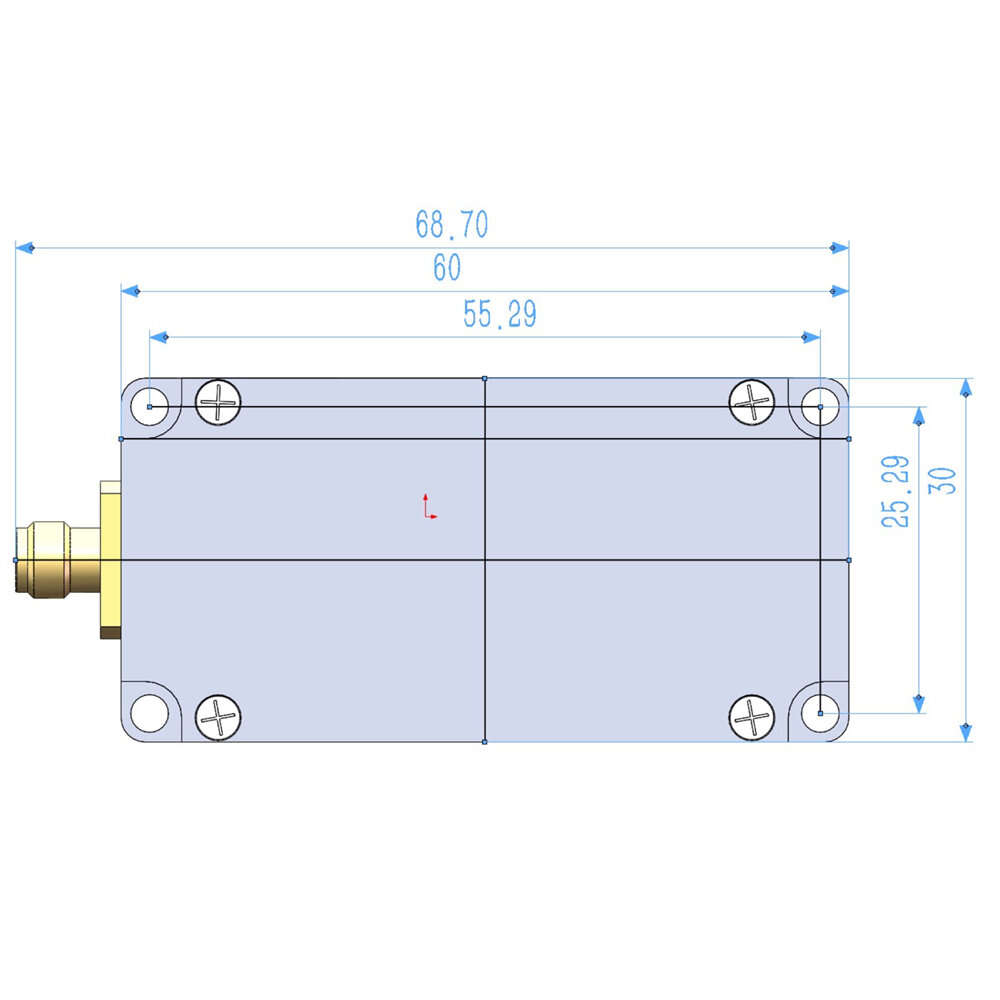

8. The body is composed of a fully CNC machined aluminum alloy shell, and the weight is less than 80g; 6*3*1.4cm (without protruding SMA)
Package Included:

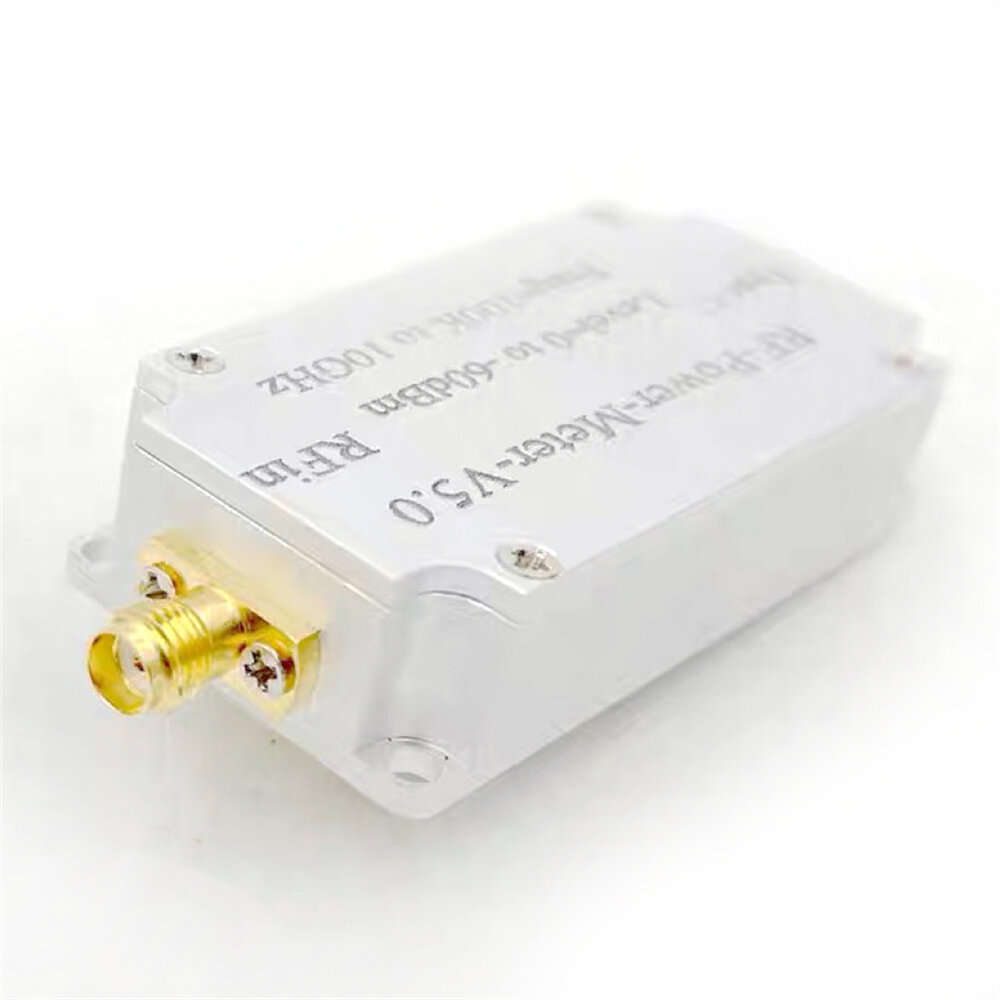

1 x Host with Aluminum Alloy Shell
