Silver - GP Antenna Ground Plane Disk M10 Thread Radial Hub for PAC-12/JPC-12 Short Wave Antennas Sc

Product Description:

The GP Antenna Ground Plane Disk is a practical accessory designed to optimize the grounding system of vertical ground-plane antennas (e.g., PAC-12, MSK-12, and other GP antennas).

Key Features:

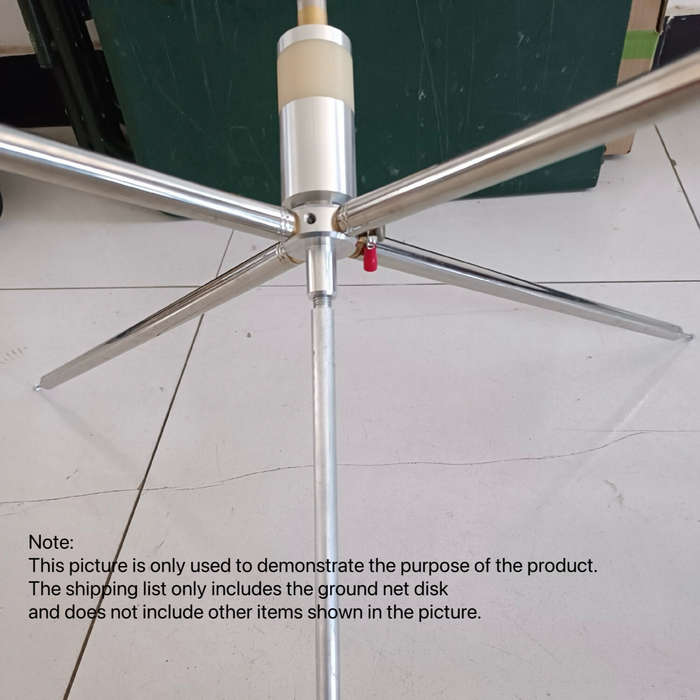

1. Radial Integration: Acts as a central hub to connect multiple 1/4-wavelength radials, enabling ground-based or elevated radial deployment for enhanced radiation efficiency.

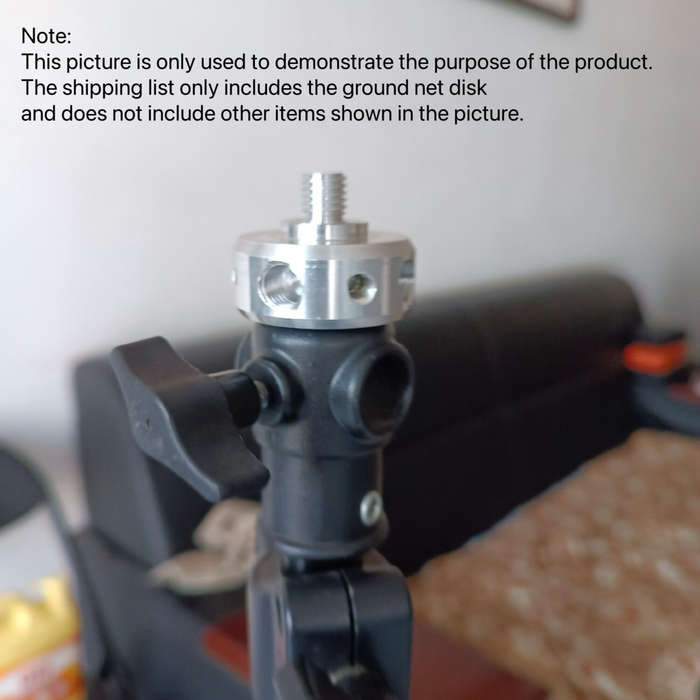

2. Flexible Deployment: Compatible with ground stakes (soil anchoring) or mast/pole mounting (elevated setups), adaptable to challenging environments (hard surfaces, rooftops, etc.).
3. Ground Optimization: Expands ground plane coverage, reduces ground resistance, and improves antenna resonance and RF energy radiation.

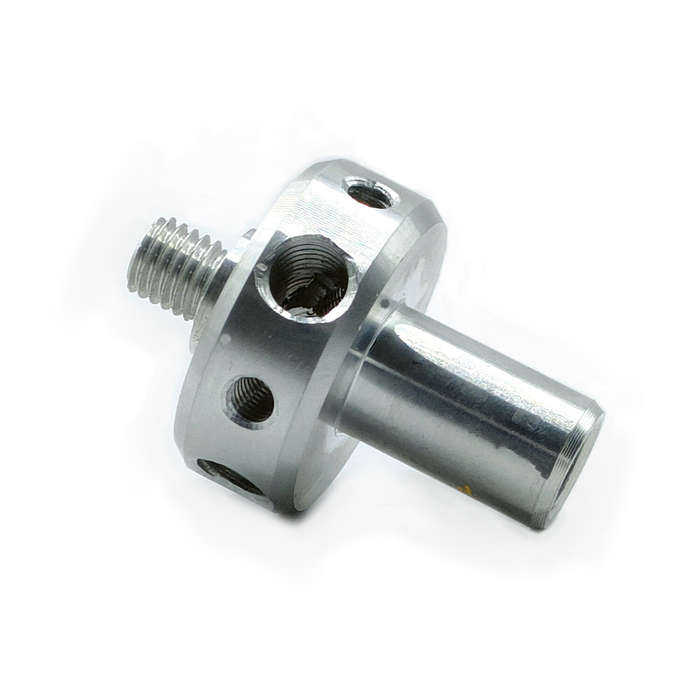

Specifications:
- Threads: M10 (top and bottom)
- Radial Ports: 4× M10 + 4× M6 threaded holes
- Dimensions: 39mm (diameter) × 55mm (height)
- Weight: ~50g
