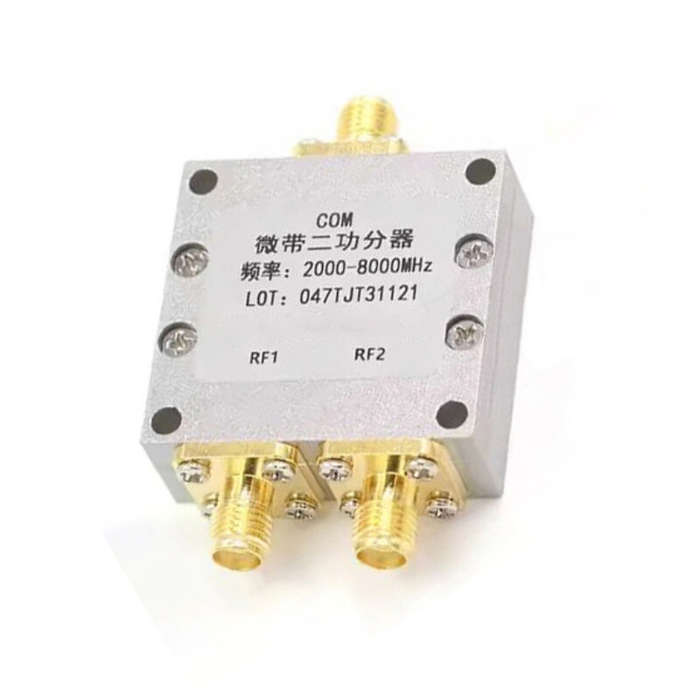

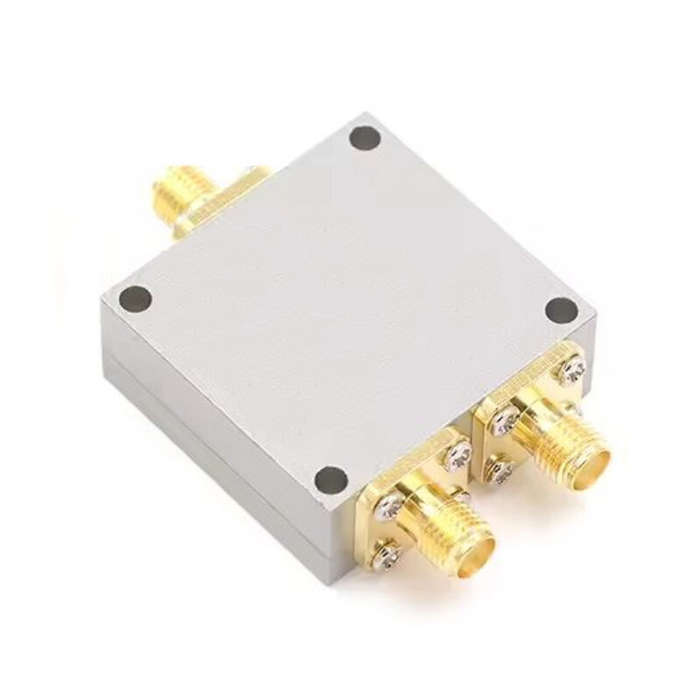

Silver - RF Power Divider SMA Connector 2 Way Splitter 1500-8000MHz High Performance Low Insertion L

Specifications:
Product Name: 2-Way RF Power Divider
Frequency Range: 1500-8000 MHz
Insertion Loss: 3.8 dB
Isolation: 20 dB
VSWR: 1.5
Amplitude Balance: 0.3 dB
Phase Balance: 5°
Impedance: 50
Connector Type: SMA-K
Power Capacity: 10 W
Operating Temperature: -30°C to +70°C
Dimensions: 33 x 32 x 12.8 mm (excluding SMA connectors)

Features:
1. Wide Frequency Range: Operates efficiently between 1500 MHz and 8000 MHz, ensuring broad compatibility for various RF applications.
2. Superior Isolation: Offers a high isolation level of 20 dB for minimized interference between outputs and improved signal quality.
3. Compact Design: Space-saving dimensions of 33 x 32 x 12.8 mm, allowing for seamless integration into tight layouts.
4. Precise Signal Performance: Small amplitude (0.3 dB
