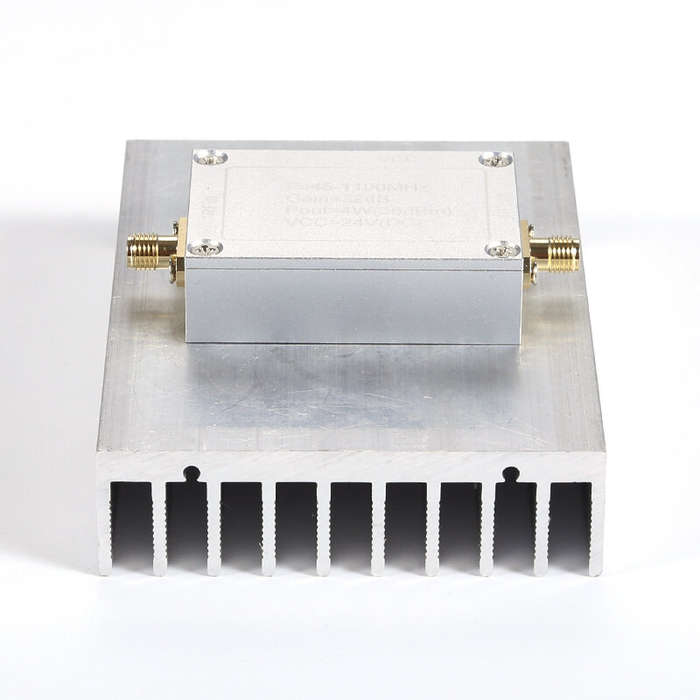

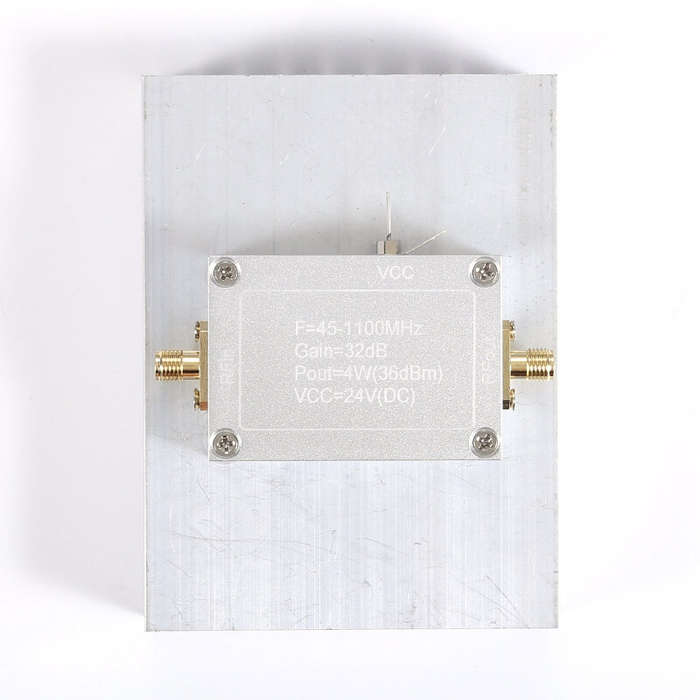

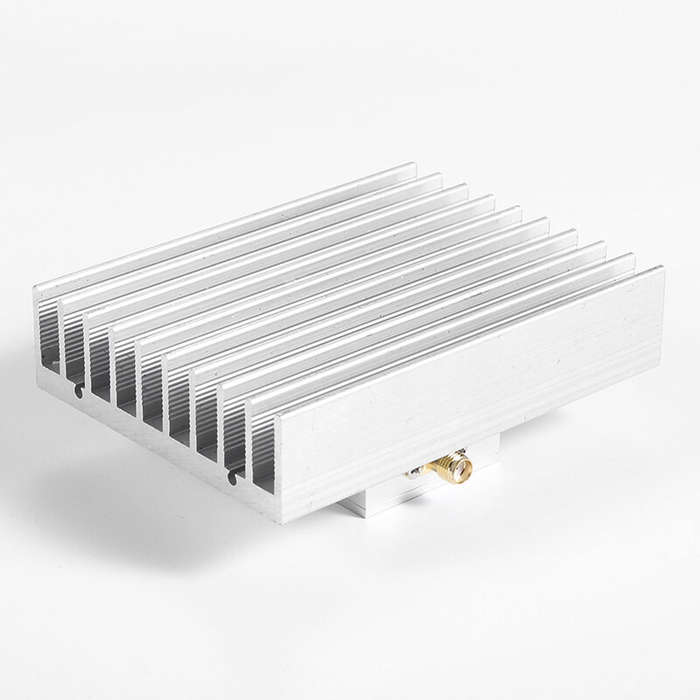

Silver - Wideband RF Power Amplifier 45-1100MHz High Gain 36dB 4W Output A-Class Amplifier Low Disto Silver - Wideband RF Power Amplifier 45-1100MHz High Gain 36dB 4W Output A-Class Amplifier Low Disto Silver - Wideband RF Power Amplifier 45-1100MHz High Gain 36dB 4W Output A-Class Amplifier Low Disto
Silver - Wideband RF Power Amplifier 45-1100MHz High Gain 36dB 4W Output A-Class Amplifier Low Disto Silver - Wideband RF Power Amplifier 45-1100MHz High Gain 36dB 4W Output A-Class Amplifier Low Disto Silver - Wideband RF Power Amplifier 45-1100MHz High Gain 36dB 4W Output A-Class Amplifier Low Disto

Silver - Wideband RF Power Amplifier 45-1100MHz High Gain 36dB 4W Output A-Class Amplifier Low Disto

New 1 available
Indicative market price: R3,036.88
Only 1 left – grab it before it’s gone!
R1,979.60
35% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
There are various locker and counter collection points across South Africa.
View locations
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
2038405-POA11747874
Bob Shop ID
654792416
Specifications:
Frequency Range: 45-1100MHz
Amplifier Class: A-Class
Gain: 36dB
Typical Output Power: 4W (36.5dBm)
Peak Output Power: 6W
DC Voltage Input: 24-26V
Operating Current: 400-600mA
Connector Type: SMA Female (Inner Pin, Outer Thread)
Dimensions: 75 x 100 mm
Weight: 280g

Features:
1. Wide Frequency Coverage: Supports an ultra-wide bandwidth of 45-1100MHz, making it highly versatile for applications including broadcasting, base stations, radar technologies, and advanced communication systems.
2. Enhanced Signal Fidelity: A-class amplifier design ensures low distortion and high signal purity, meeting stringent requirements for high-quality RF amplification.
3. High Output Power: Provides a typical output of 4W with peaks reaching 6W, ensuring robust performance even under high-load
