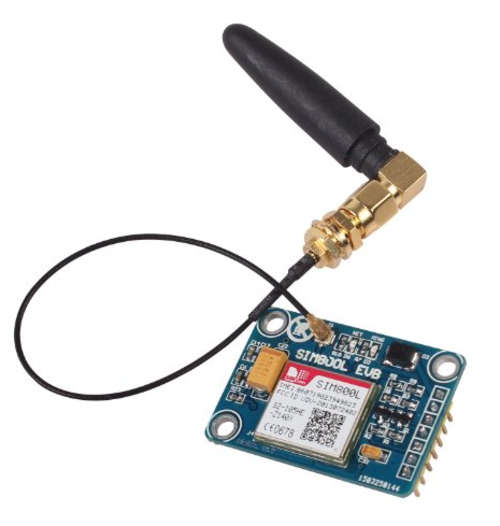

SIM800L GPRS GSM MODULE QUAD BAND SIM BOARD
Product information
This SIM800L module has a set of TTL level serial interface, a set of power supply interface. Besides, there are a set of antenna interface on this module. SIM800L is a complete Quad-band GSM/GPRS solution in a LGA package which can be embedded in customer applications. SIM800L supports Quad-band 850/900/1800/1900MHz. It can transmit voice, SMS and data with low power consumption and with its tiny size; it will fit in any compact design. It features Bluetooth, FM and Embedded AT.
General features:
•Quad-band 850/900/1800/1900MHz
•GPRS multi-slot class 12/10
•GPRS mobile station class B
•Compliant to GSM phase 2/2+
–Class 4 (2 W @ 850/900MHz)
–Class 1 (1 W @ 1800/1900MHz)
•Bluetooth: Compliant with 3.0+EDR
•FM: 76~109MHz worldwide bands with 50 KHz tuning step
•Dimensions: 15.8*17.8*2.4mm
•Weight: 1.35g
•Control via AT commands (3GPP TS 27.007, 27.005 And SIMCOM enhanced AT Commands)
•Supply voltage range 3.4V - 4.4V
•Low power consumption
•Operation temperature:-40deg. C - 85deg. C
Specifications for GPRS Data:
•GPRS class 12: Max. 85.6 kbps (downlink/uplink)
•PBCCH support
•Coding schemes CS 1, 2, 3, 4
•PPP-stack
•CSD up to 14.4 kbps
•USSD
•Non transparent mode
Specifications for SMS via GSM/GPRS:
•Point to point MO and MT
•SMS cell broadcast
•Text and PDU mode
Software features:
•0710 MUX protocol
•Embedded TCP/UDP protocol
•FTP/HTTP
•MMS
•E-MAIL
•DTMF
•Jamming Detection
•Audio Record
•TTS
•Embedded AT (optional)
Specifications for voice:
•Triode
–Half rate (HR)
–Full rate (FR)
–Enhanced Full rate (EFR)
•AMR
– Half rate (HR)
– Full rate (FR)
•Hands-free operation
(Echo suppressionï¼Â
Interfaces:
88 LGA pads including:
•Analog audio interface
•RTC backup
•Serial interface
•Interface to external SIM 3V/1.8V
•GSM Antenna pad
•FM Antenna pad
•Bluetooth Antenna pad
Compatibility:
•AT cellular command interface Certifications (Plan):
•CE
•GCF
•FCC
•ROHS
•REACH
Specifications
Arduino 51 STM32 AVR MCU compatible
Prototype expand
The frequency is 850/900/ 1800/1900 MHz
Power supply range: 4.6V - 5.2V
Current: 1A or more (the current is very important).
Operating temperature range: -40deg. C to +85deg. C
Communication interface: The TTL level serial interface compatible 2.85V/3.3V/5V MCU
LED: Two LEDs (Net LED and a RING LED)
Size: 27mm X 39mm
SIMCARD: micro SIMCARD holder
Package Includes
1 X SIM800L GPRS GSM Module SIM Board Quad Band
1 X Antenna
