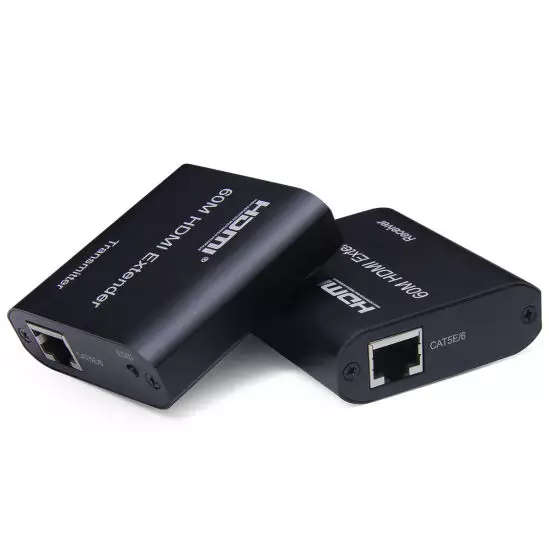

Single Network Cable HDMI over CAT5/CAT6 Extender up to 60 meter distance

Single Network Cable HDMI over CAT5/CAT6 Extender up to 60 meter distance

New 100 available
R932.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
3D_Single_HDMI_Extender
Bob Shop ID
625170216

Single Network Cable HDMI over CAT5/CAT6 Extender up to 60 meter distance - 60 meter 1080p / 80m 720p

Features:
  • Supports video input : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

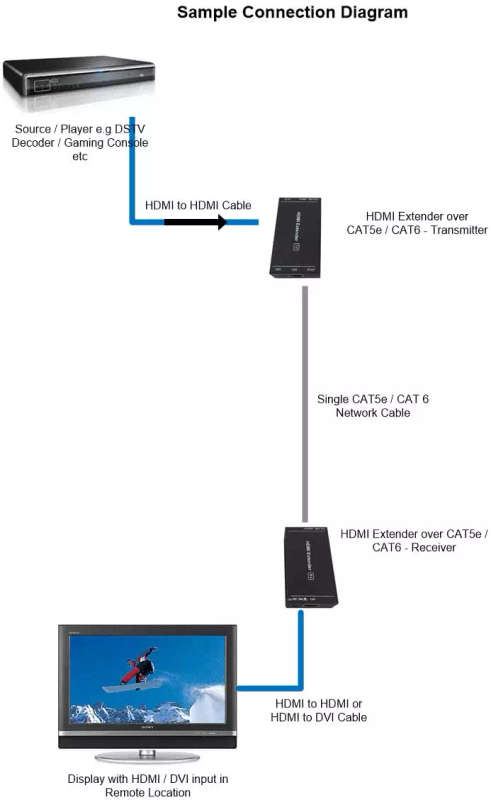

  • Signal transmission :Single CAT-5e STP or CAT-6 STP(recommended) cables up to 60 metres instead of HDMI cables are connected between TX and RX Extender.
  • Support video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
  • Support CEC
  • Audio format support : DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
  • No loss of quality
  • Installs in minutes
  • Can connect USB Cables included for power to any nearby USB port such as HDTV, Gaming Console, Wall Charger or any other USB Device. Product comes with 2 x Micro USB to USB type A cables.

How to Install HDMI Extender over CAT6 Video and Instructions

?v=pVqfjhDXuUg

Specifications:

Length of CAT-6 cable between Rx and TX......Up to 60 metres
HDMI Input.....24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format input..DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
HDMI Output...24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format output........LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth..2255MHz
Max baud rate.......6.75Gbps
Input Video signal ....... 0.5~1.5Volts p-p
Output DDC signal 5Volts p-p (TT1L)
Input/Output HDMI1.3 cable distance..20m AWG26 HDMI 1.3 standard cable
Max working current......1000mA
Power cable format.Micro USB to USB type A cables 5v 1amp
Operating Temperature range... (-15 to +55)
Operating Humidity range....5 to 90%RH (No Condensation)
Dimension (L x W x H) .82x45x21 (mm)
Weight.......220g

Cheaper CAT6 CCA Ethernet Network Cable as below can be used with this extender but only to about 60% of the max distance indicated on extender. For Full Distance installations and best transmission CAT6 Full Copper Cable is recommended as below

/price-per-meter-cat6-unshielded-twisted-pair-utp-23awg-1-gigabit-s-cable-gray/

CAT6 Full Copper Ethernet Network Cable Recommended for max distances

/price-per-meter-cat6-stp-pure-copper-ethernet-cable-solid-core-with-braiding-up-to-1gb-s-gray/
