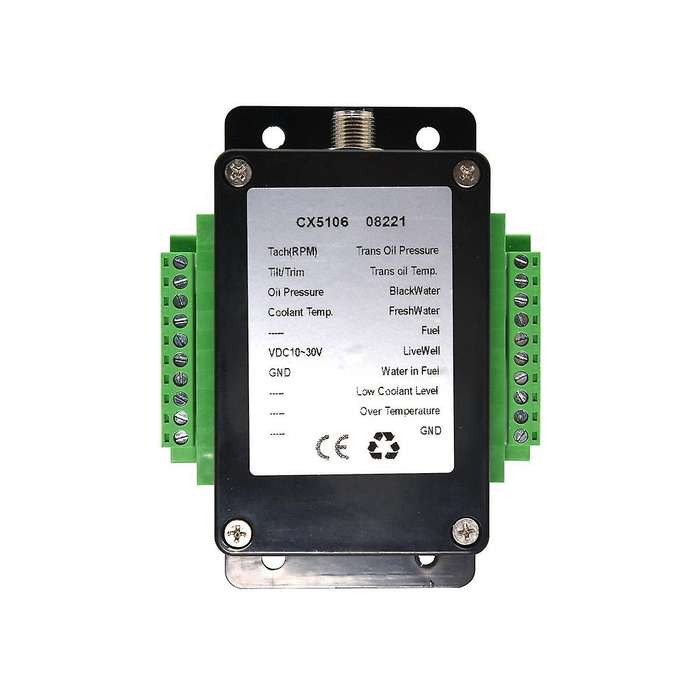

Single Nmea 2000 Converter N2k Converter Cx5106 0-190ohm 0.5m Wiring for Marine Boat Cx5106

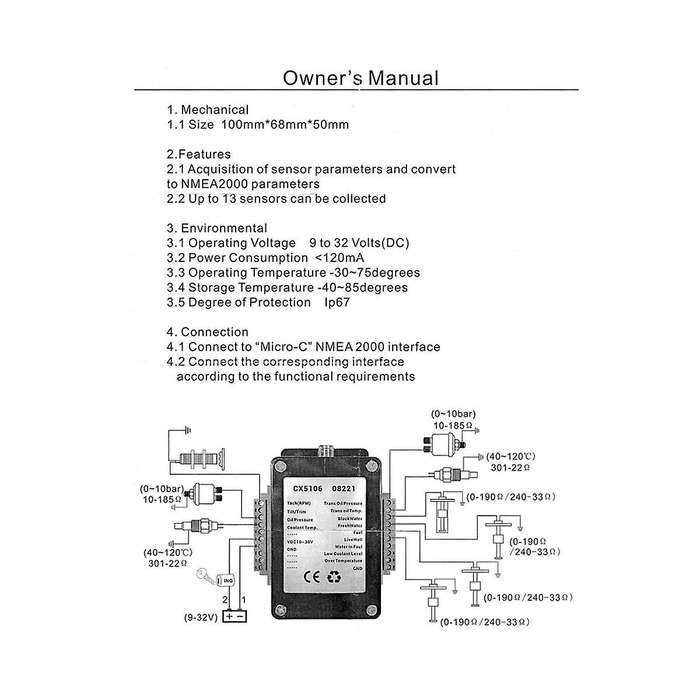

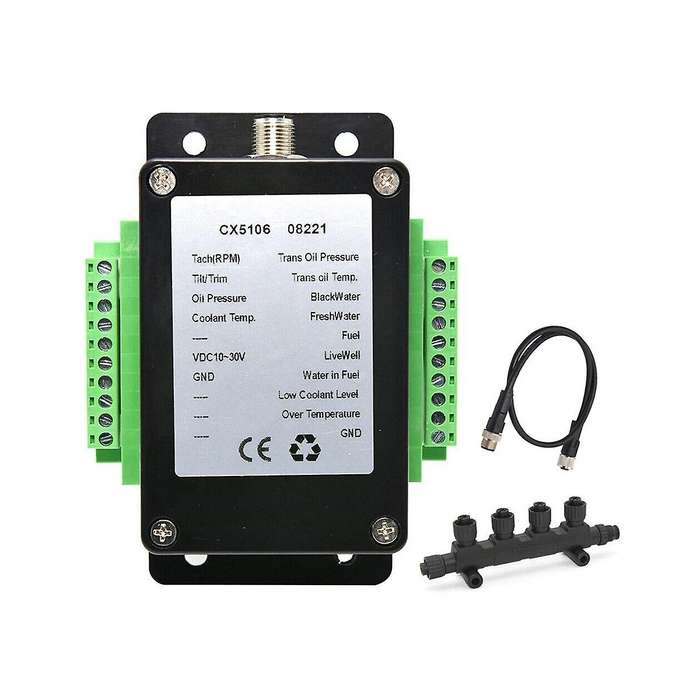

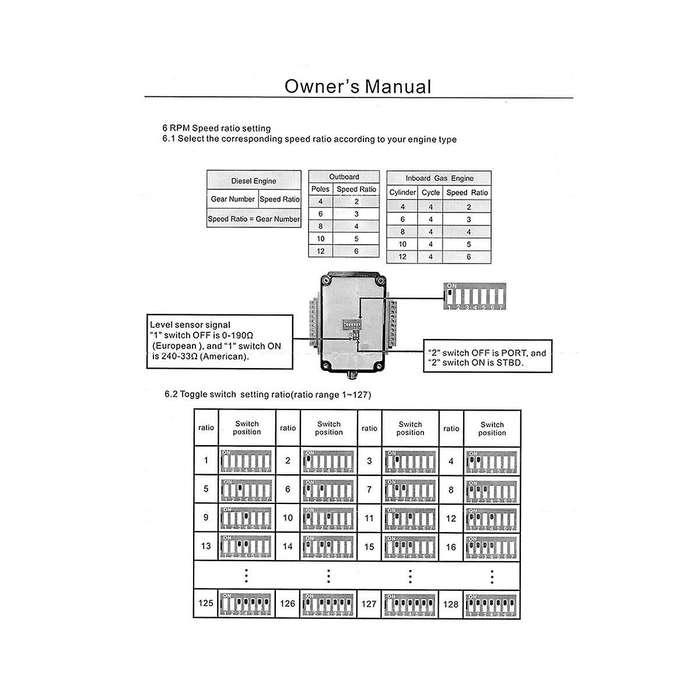

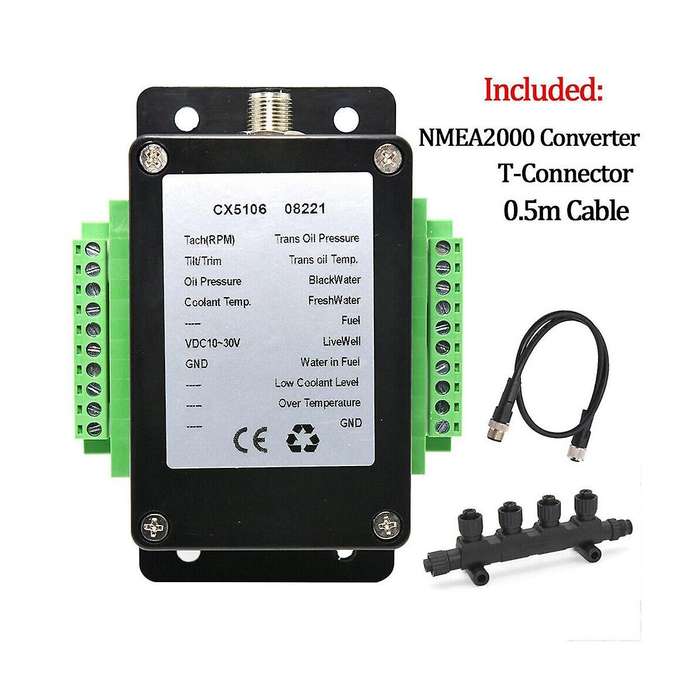

Features: Acquisition of sensor parameters and convert to NME A2000 parametersUp to 13 sensors can be collectedSensor Parameter: Speed ratio adjustable range is 1~200Engine tlt\/trim 0~190ohm\/240-33ohmOil pressure 10~184ohm(0~10bar)Tepmerature 301~22ohm(40~120)Rudder 0~190ohm\/240-33ohmFuel level 0~190ohm\/240-33ohmFreshwater level 0~190ohm\/240-33ohmWastewater level 0~190ohm\/240-33ohmEnvironmental: Operating Voltage: 9 to 32 Volts(DC)Power Consumption: Less than120mAOperating Temperature: -30~75degreesStorage Temperature: -40~85degreesDegree of Protection: IP67Connection1. Connect to \-C\ NMEA 2000 interface .2. Connect the corresponding interfaceMaterial: ABScolour: BlackPackage Contents: 1 x CX5106 NMEA2000 converter1 x Tool1 x Wire cable(0.5M)1 x T-Connector1 x English instructionsOnly the above package content, other products are not included.Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
