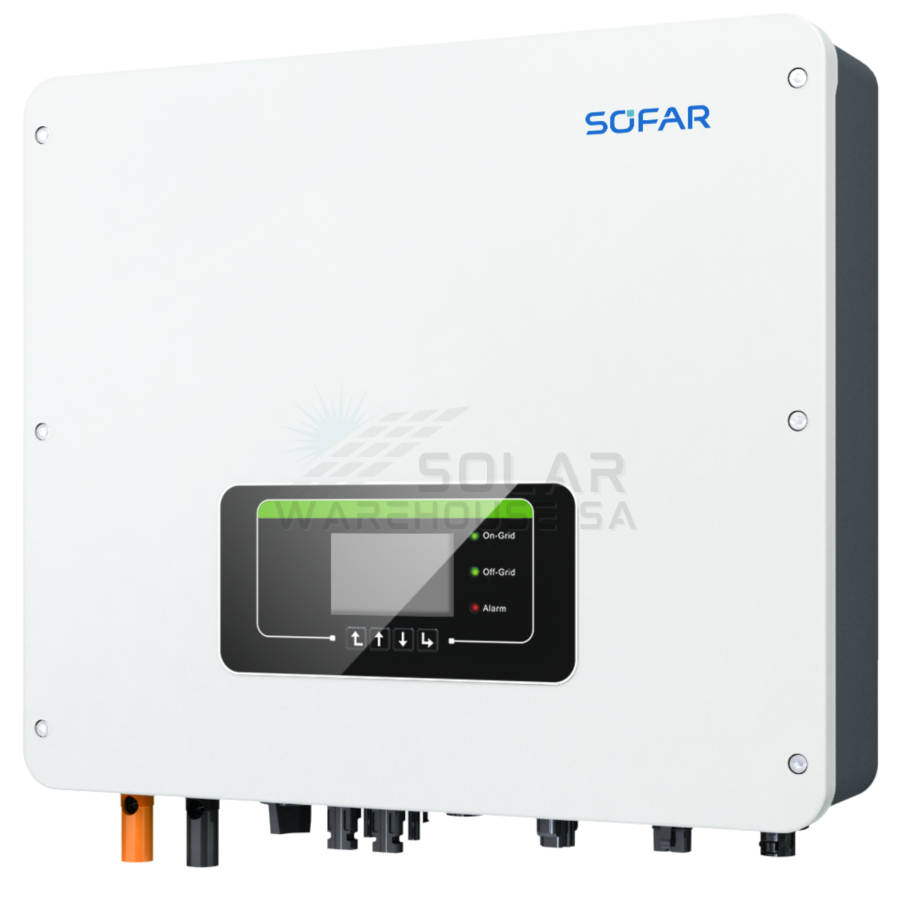

Single-phase hybrid inverter Sofar Solar 6 kVA - HYD6000-EP IP65

Single-phase hybrid inverter Sofar Solar 6 kVA - HYD6000-EP IP65

Product advantages

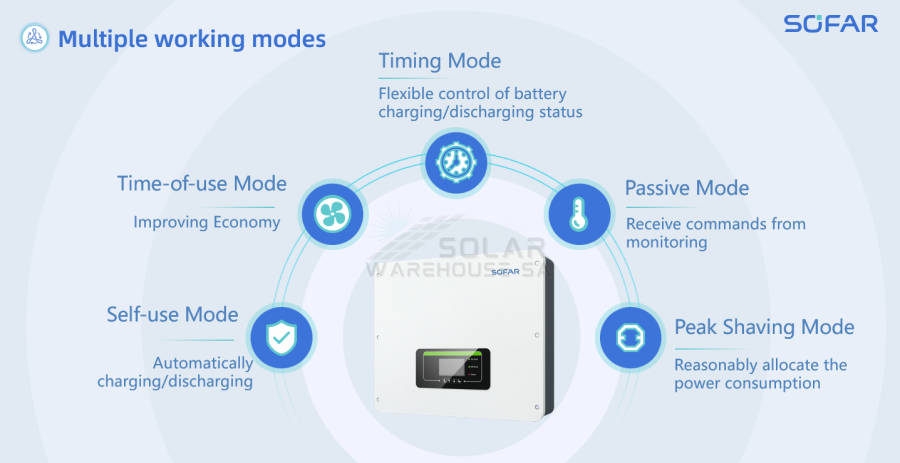

• Various operational modes available
• Smart fanless cooling design
• Flexible configuration, allowing both lead-acid and lithium batteries
• EPS function (switchover time less than 10 ms)
• Feed-in limitation function

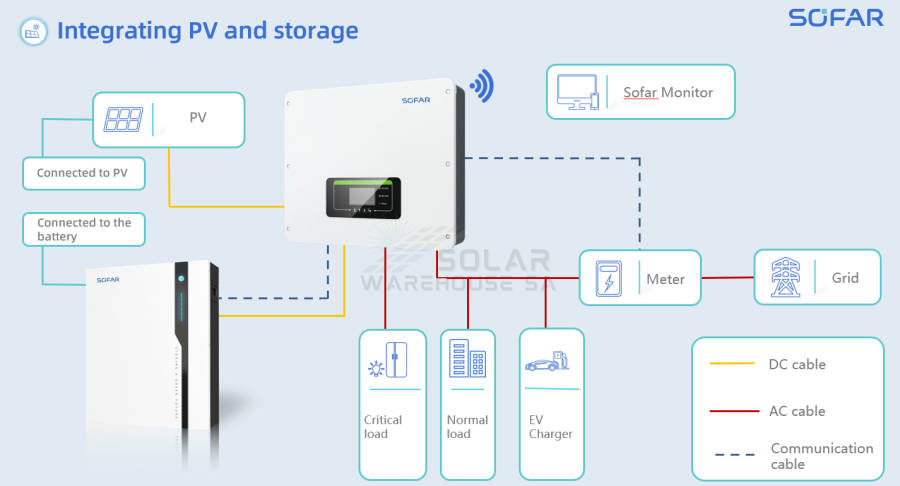

• Supports both on- and off-grid operation
• IP65 design for outdoor Features

DC input (PV)
Recommended max. PV input power 9000wp
Max. input voltage 600v
Start-up voltage 100v
Rated input voltage 360v
MPPT operating voltage range 90-550v
Number of MPP trackers 2
Max. number of input strings per MPPT 1/1
Max. input current per MPPT 13A/13A
Max. short-circuit current per MPPT 18A/18A

AC output (on-grid)
Rated output power 6000W
Rated output current 26.1A
Rated grid voltage 230V
Rated grid frequency 50/60Hz
Max. output apparent power 6000VA
Max. output current 27.3A

Battery parameters
Battery type[3] Lithium-ion,Lead-acid
Battery voltage range 42-58v
Number of battery input channels 1
Max. charge/discharge power 5000W
Max. charge/discharge current 100A
BMS communication mode CAN,RS485

AC output (off-grid)
Rated output power 5000W
Rated output current 21.7A
Rated output voltage 230V
Rated output frequency 50/60HZ
Max. output apparent power 5000VA
Peak output apparent power, time 6000VA
Max. output current 22.7A
Switching time 10ms

Efficiency
Max. MPPT efficiency 99.9%
Max. efficiency 98%
European efficiency 97.5%
Max. efficiency of charging/discharging [1] 94.6%

Protection
DC switch YES
PV reverse connection protection YES
Output short circuit protection YES
Output overcurrent protection YES
Output overvoltage protection YES
Insulation impedance detection YES
Residual current detection YES
Anti-island protection YES
Surge protection YES

General parameters

Dimenesions: 482 x  503 x 183 mm
Weight 21.5KG
Communication RS485/CAN/WIFI/ETHERNET/4G
Display LCD & APP+Bluetooth

Wifi Data logger included

• 5-Years Repair Warranty
• Warranties: All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at the void.
