Technical Specifications:

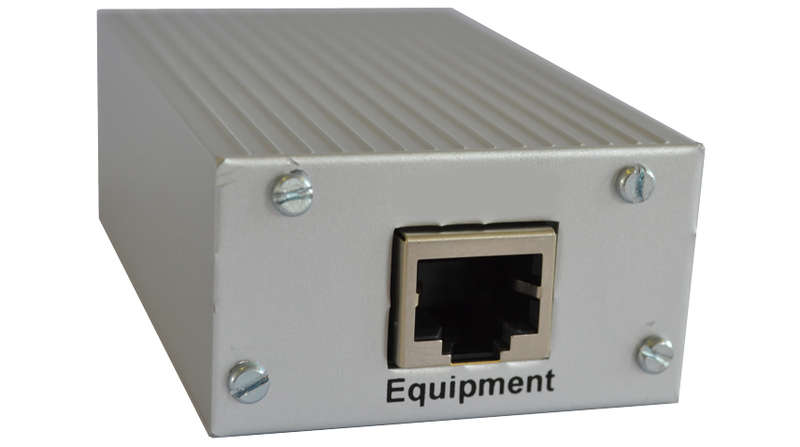

PoE Surge Arrester: POE-ESA-01
Product Description: Single Port Ethernet and PoE Surge Arrester
Ethernet Interface:
Ethernet Input: RJ45 socket, PoE, 10/100Base-T
Ethernet Output: RJ45 socket, PoE, 10/100Base-T
Grounding:
Grounding: 300mm of 1.5mm stranded earth cable (requires connection to a good electrical earth)
Ethernet Protection:
Operating voltage: 48V
Maximum voltage: 58V
Operating current: 0.7A
Maximum discharge current: 10KA (8/20µs)
Impulse life: (10/1000µs): 400 times
PoE Protection:
Operating voltage: 48V
Maximum operating voltage: 58V
Operating current: 0.7A
Maximum discharge current: 10KA (8/20µs)
Impulse life: (10/1000µs): 400 times
General
Operating temperature: -40°C to 85°C
Operating humidity: 0% to 95%; non-condensing
Dimensions (mm): 50 x 28 x 100
