Description:
Item Brand:SINOHOBBY
Item Number:V28-108
Item Name:Gyro
Material:Plastic and electronic parts
Color:Black

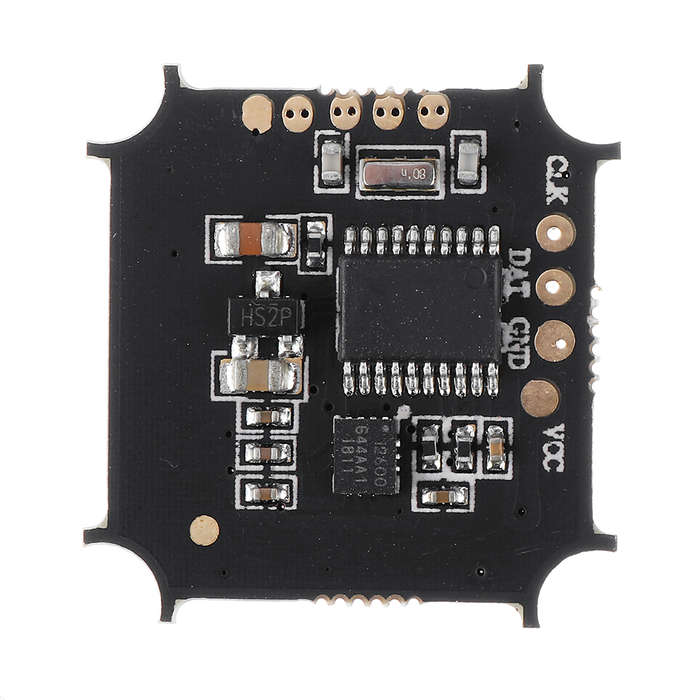

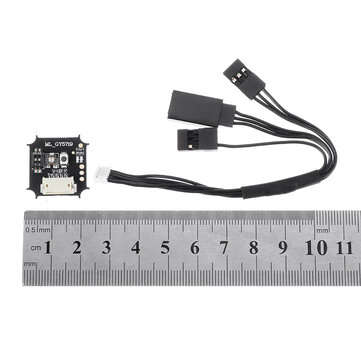

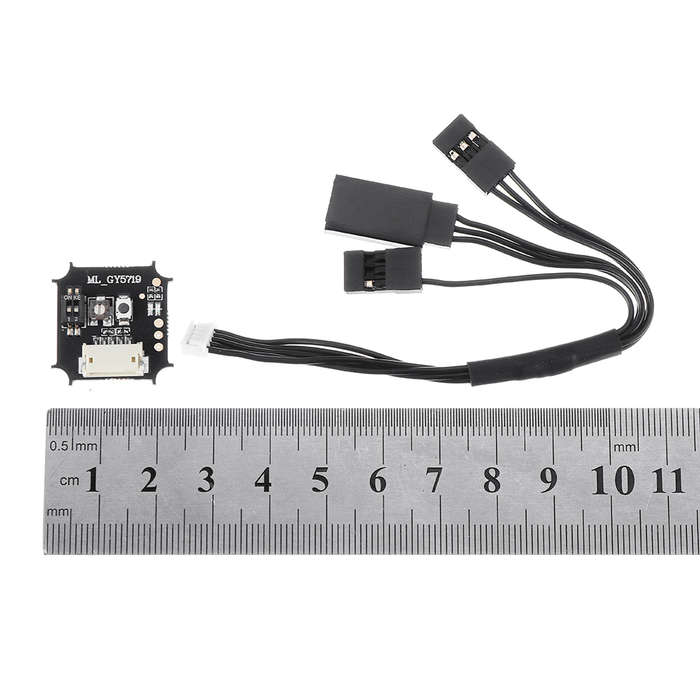

Product Size:Gyro is 22*22mm*2.2mm

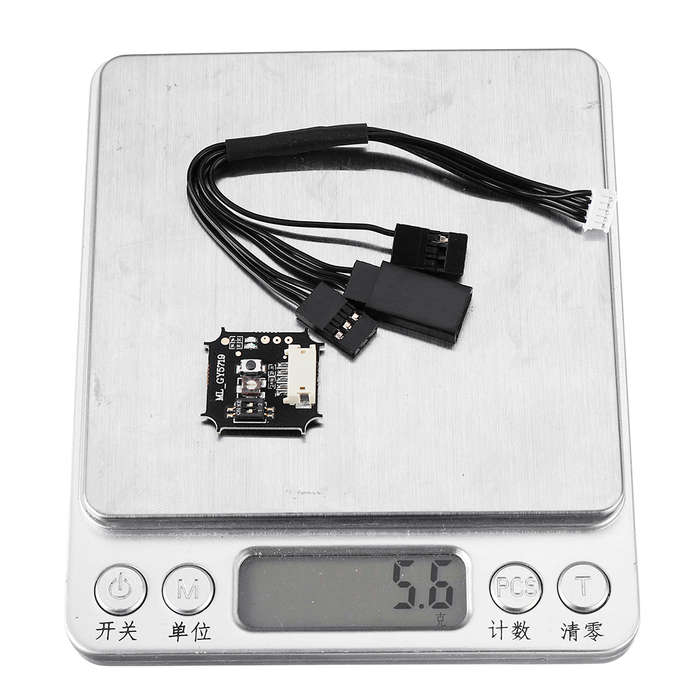

Product Weight:About 5.6g
Compatible Models:Sinohobby MINI-Q 1/28 rc car vehicles models
Specification:
Working Voltage:4.8-7.4V
Working Current: 20mA/6V
Support Servo Pulse Width: 1520us (50Hz&333Hz)
Control System: PID control system
Gyro Sensor: Invensense, USA
Angular Speed:Max?±4000/s
Parameters

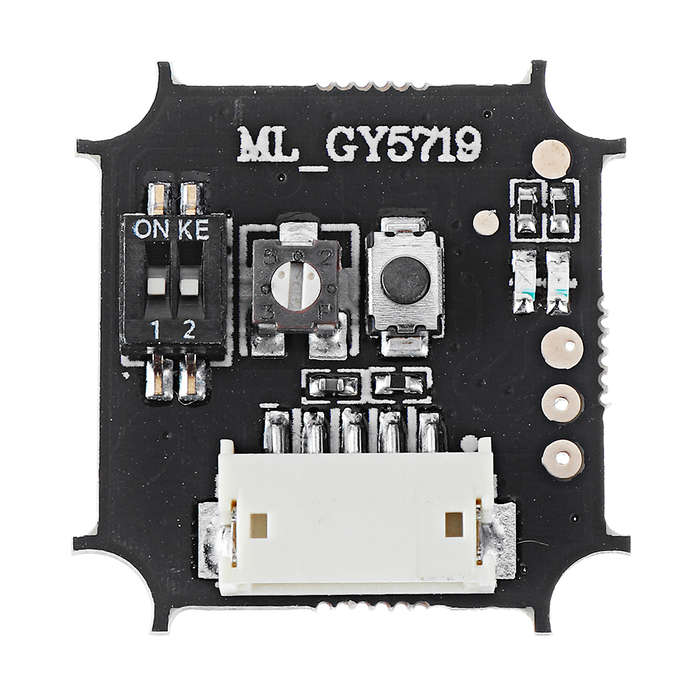

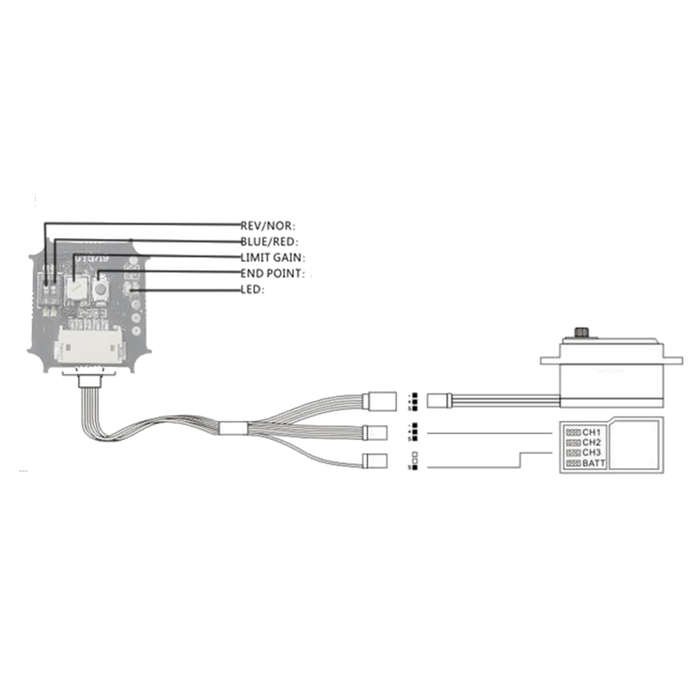

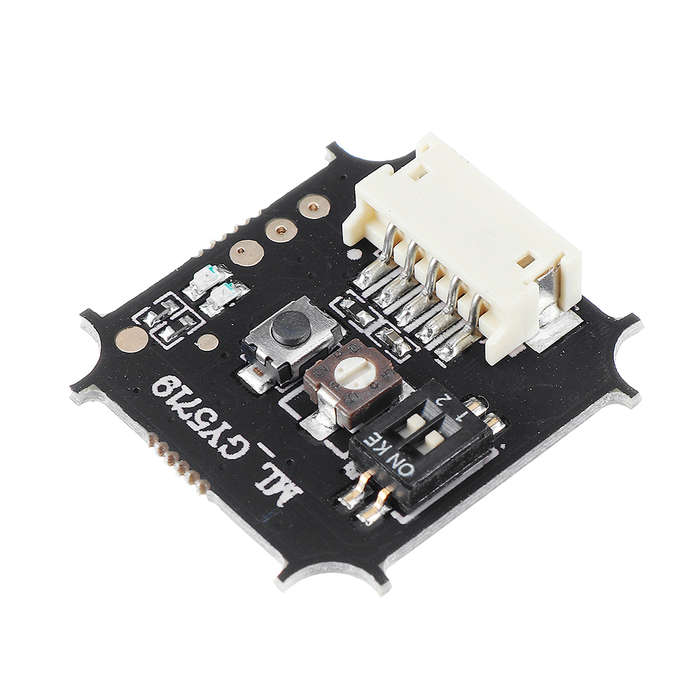

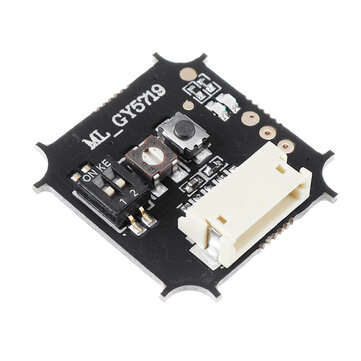

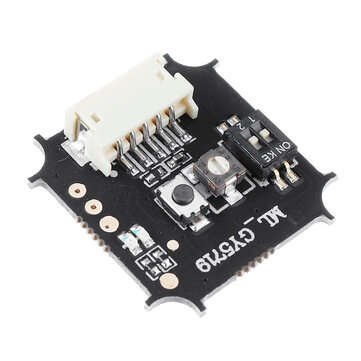

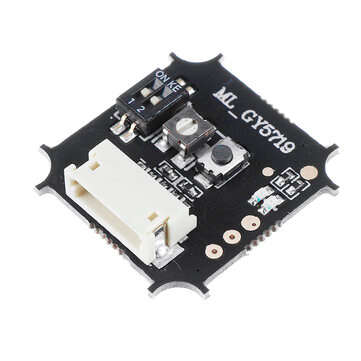

REV/NoR switch: adjust the correct direction according to your server
BLUE/RED switch: switch between the blue light system and the red light system, according to the characteristics of different tracks and server speeds, but different operating systems are selected
(Blue light system is often used to suppress the jitter generated by the server under high sensitivity)
LIMIT GAIN knob: sensitivity adjustment knob from left to right 0-100%
END POINT button: lock the maximum stroke of the server/ initialization to ensure that the frame has set the maximum beam angle
After the EPA value, use the matching tool to press and hold the END button and then turn on the power, see the red and blue LED lights flashing slowly and then turn on the END button, enter the gyroscope lock angle setting, the left side of the control direction
Press the END button after the shot is exhausted, and press the END button on the right side, and the direction will immediately return to the center. After the LED light turns to a constant light, the gyro lock angle operation is successful;
If you need to the initialization, press and hold the END button to power on for 3 seconds, the red light LED will flash quickly and then turn on and the lock will be unlocked and the initialization is successful
LED Status Display:
Red light flashes quickly
| Self-check
|
Red and blue lights flash slowly
| Set toe angle
|
Red light keeps on
| Red light system |
| Blue light keeps on | Blue light system |
Warning:

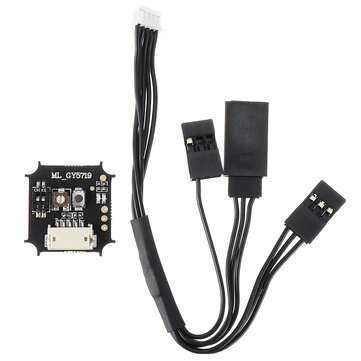

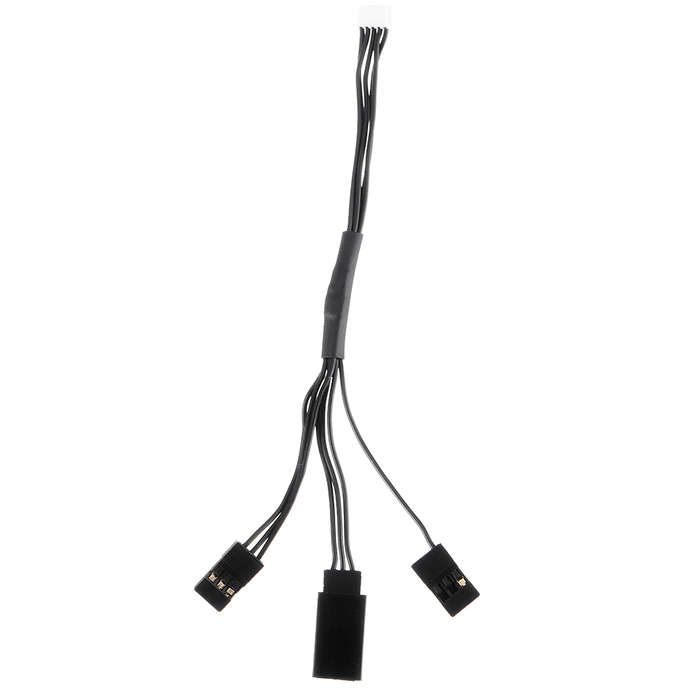

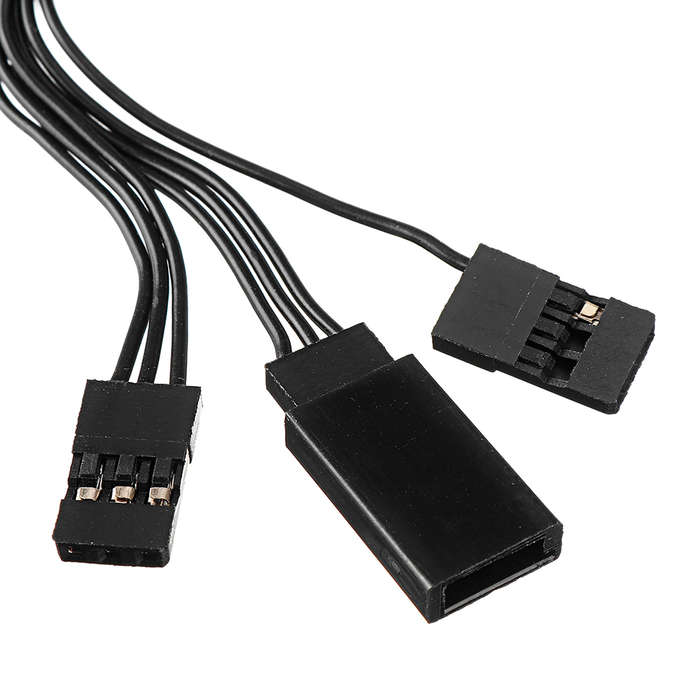

1.The white border of the wire harness is the S end of the signal wire. Please make sure the connection is correct before using the gyroscope.
2.The gyroscope should be installed in a flat place and far away from the power motor to avoid vibration and affect normal use
3.During the power-on self-test,you should confirm if other electronic equipments is vibrating and the gyro self-test fails
Package Included:
1X Gyro
