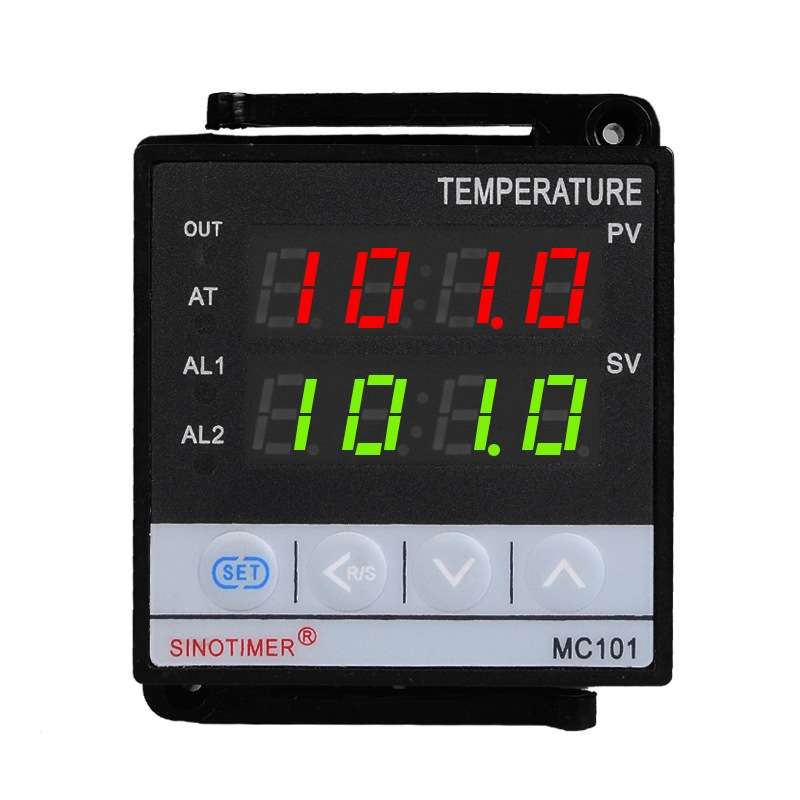

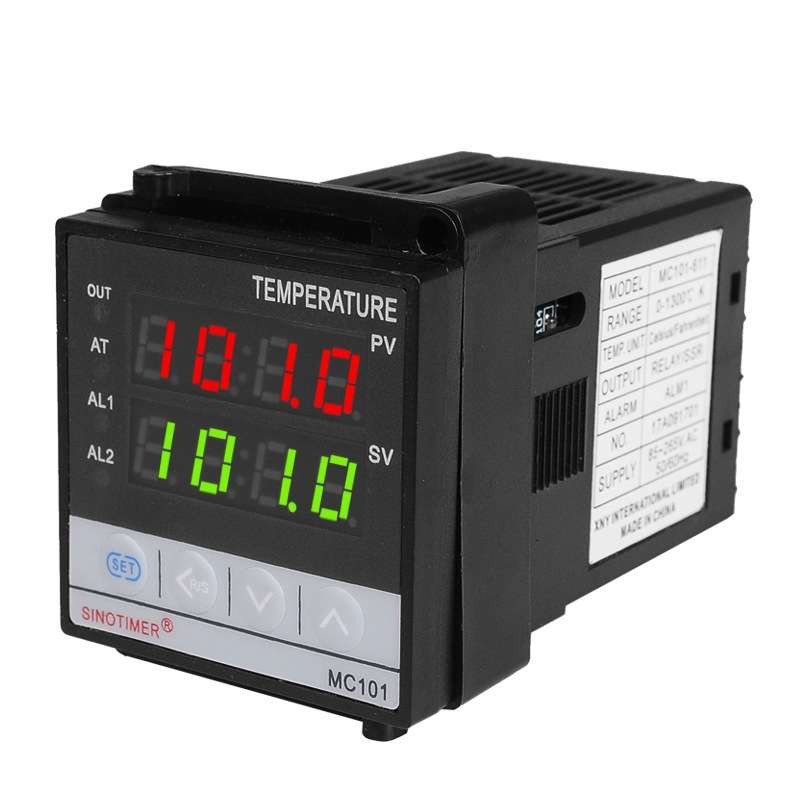

SINOTIMER MC101 Universal Input Short Case PID Intelligent Temperature Controller Meter Heating Cooling Relay SSR Solid State Output

1. Measuring range: 0-1300 degrees Celsius
2. Measurement accuracy: 0.5%FS
3. Display mode: LED
4. Input: universal input, K/E/J/N/S/T/R/B/Pt100 and other signals, can be changed by yourself
5. Resolution: 0.1
6. Temperature display: degrees Fahrenheit / degrees Celsius
7. Power input: AC 85-265V 50/60Hz
8. Hole size: about 4.5 x 4.5cm
9. Overall Dimensions: about 4.8 x 4.8 x 8.5cm

Features:
1. Universal input, can change the input signal at will
2. Fahrenheit or Celsius temperature can be switched as required

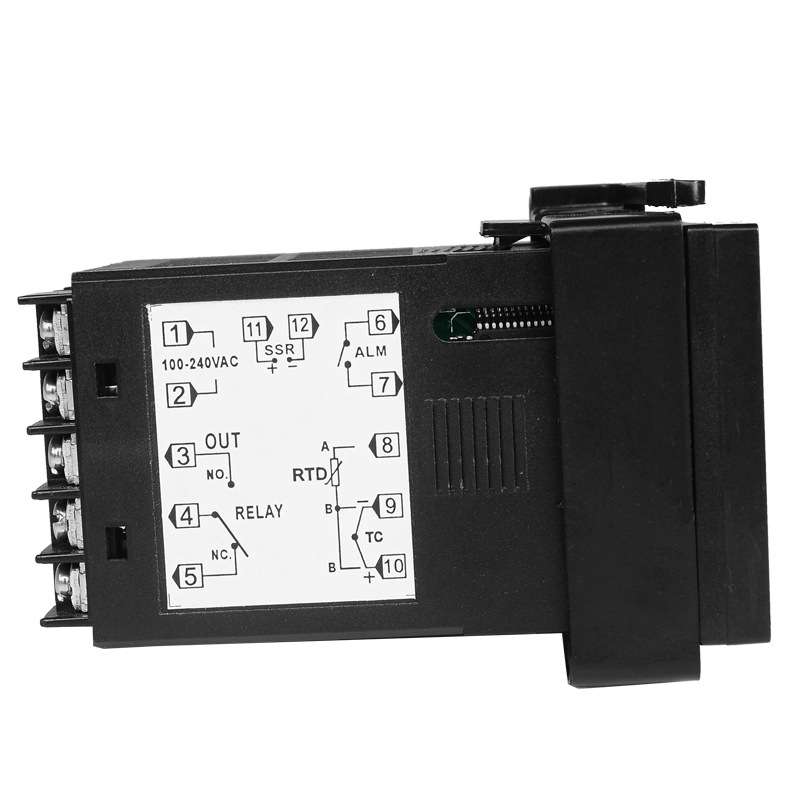

3. 1 set of control outputs (relay/SSR integrated), free to use relay outputs or SSR outputs
4. Thermometer signal input, with decimal point digital display
5. Using anti-interference chip, liquid crystal display, simple and clear
