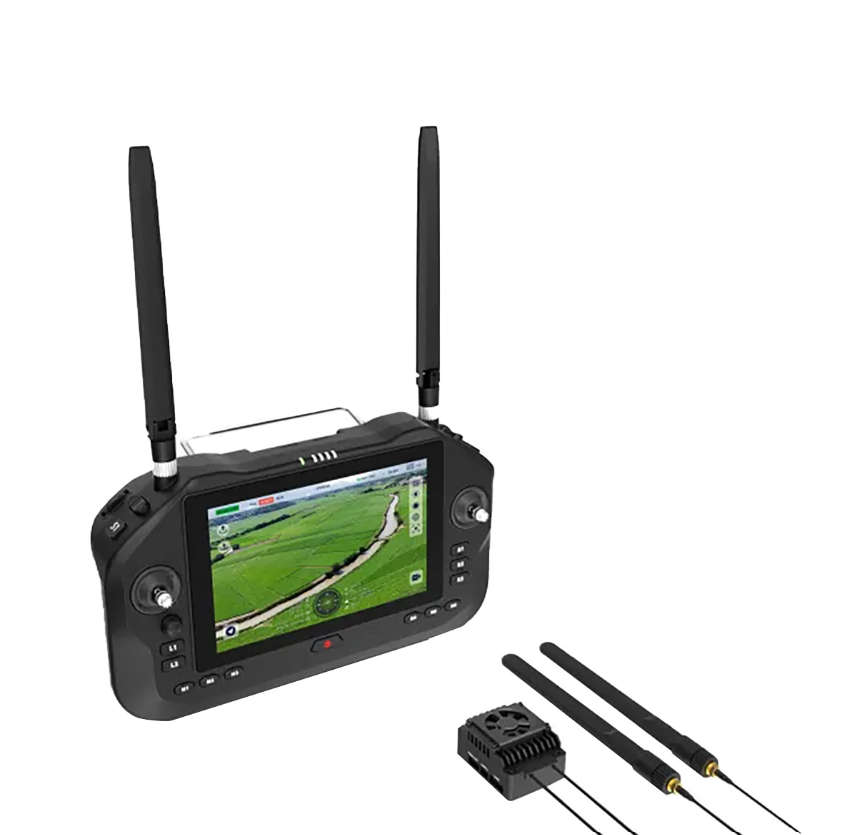

UniRC 7 is SIYI's new generation of handheld ground stations, designed for drones, vehicles, boats, and intelligent robots. This series supports 2.4 GHz single-band communication with a communication range of up to 40 kilometers. It supports 4K 30fps decoding, with a transmission rate of up to 65 Mbps, and uses AES encryption. It features a 7-inch 1080p display with 1600 nits brightness, a uniquely designed auxiliary joystick, six flight mode buttons, and a quick-release shoulder strap mount. The UniRC 7/7 Pro combines top-tier performance with innovative design, delivering an ultimate control experience and setting a new industry standard.
UniRC 7 integrates SIYI's new-generation self-developed image transmission technology. The new transmission technology automatically selects the best channel based on environmental interference, providing enhanced anti-interference capability and up to 40 KM transmission range. The system supports real-time image transmission in 4K@30fpsfor single stream or 1080p@60fps for dual streams. Transmission bitrate up to 65 Mbps and latency low to 170 ms. Data transmission supports AES encryption, ensuring data safety on both ends.
UniRC 7 equips a 7-inch HD touchscreen with ultra-high screen-to-body ratio and 1600-nit brightness at 1080p resolution, which ensures clear visibility even under direct sunshine. The screen also features adaptive brightness, adjustable based on ambient light, providing anti-glare outdoor experience with crystal-clear vision.
Function customizable sub joystick provides precise control for gimbals and other useful devices. A unique design for more convenient and more versatile control options.
Quick-release belly bracket is SIYI's patent design for users to wear UniRC 7 series easily and to save effort. The bracket attaches a soft silicone mat, very ergonomical and comfortable during long-time operations, significantly reducing hand fatigue and helping pilots focus more on missions.
UniRC 7 runs on Android 13 operating system, powered by Qualcomm Snapdragon 8-core CPU, with 4GB RAM and 64GB ROM, and 4K 30fps video decoding capability, providing smooth operating experience and robust data processing ability for multiple tasks.
Temperature control protection for charging when powered on and reducing charging power when overheating. Quick-release battery design, easy swappable, especially suitable for continuous operation scenarios.
Designed for dual-operator scenarios, UniRC 7 supports two ground unit controlling one air units simultaneously. One operator flies the drone, another controls gimbal camera or other payloads. Either ground unit can see the same camera view or different camera views.
| Weight | 4 kg |
|---|---|
| Dimensions | 34 × 24 × 13 cm |
| Edition | SIYI UniRC 7 (2.4 GHz), SIYI UniRC 7 Pro (2.4 & 5 GHz) |
| UniRC 7 Pro | UniRC 7 |
| Screen Resolution | Screen Resolution |
| 1920x1200 | 1280x800 |
| Transmission Frequency | Transmission Frequency |
| 2.4 & 5 GHz | 2.4 GHZ |
| LAN Port | LAN Port |
| Yes | No |
| HDMI Port | HDMI Port |
| Yes | NO |
| Ground Unit Antennas | Ground Unit Antennas |
| 2 x External & 2 x Internal | 2 x External |
| USB-A Port | USB-A Port |
| Functions as UART (for RTK dotting)and as USB for USB Disks / Microphones | Functions as UART only (for RTK dotting) |
| Battery Life | Battery Life |
| 8 hours | 11 hours |
| Quick-Release Belly Bracket | Quick-Release Belly Bracket |
| Shoulder strap | Neck strap |
| Air Unit Dimensions | Aur Unit Dimensions |
| L63 *W40.5 *H26.5 mm | L57*W40.5 *H28 mm |
| Air Unit Antennas | Air Unit Antennas |
| 2 x Quick-Release MMCX &. 2 x Detachable IPEX2 | 2 x Detachable IPEX |
| Air Unit Weight | Air Unit Weight |
| Approx: 115 g (without antennas) | Approx: 90 g (without antennas) |
