Basic function:
1) 56 channels,7 frequency band wireless receiving.
2) Two buttons for channel and band exchange individually.
3) Two number display, timely locate the current receiving frequency and band
4) When power on, storage memory shows channel and frequency of the last time.
5) Two-way video and audio signal output ( video: PAL, NTSC,CECAM ; Audio: 6.5MHz)
6) 5dB sensitivity gain more than normal receivers
7) Wide dynami power supply ( 12v)
Specifications:
Supply current: 130mA
RF input matching: 50ohm SMA
Video output voltag: 1.0Vp_p75
Audio output voltag: 1.0Vp_p 10K
Dimension: 50×50×15 mm
Weight: 42.5g
Package Included:

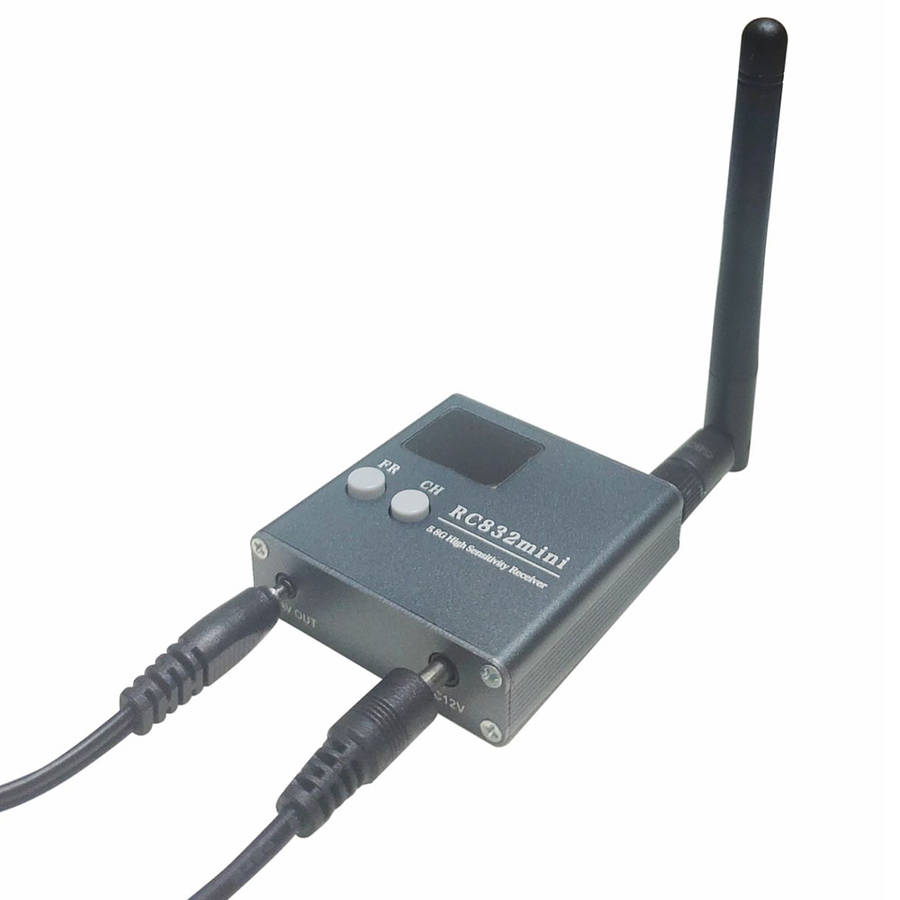

1 Kit x RC832mini 4.9G-5.8G 56CH high Sensitivity Receiver
