The main function of a rail mount fuse holder is to offer circuit protection, it is to also offer protection to both the user and the equipment in the event of a circuit overload within any given application.

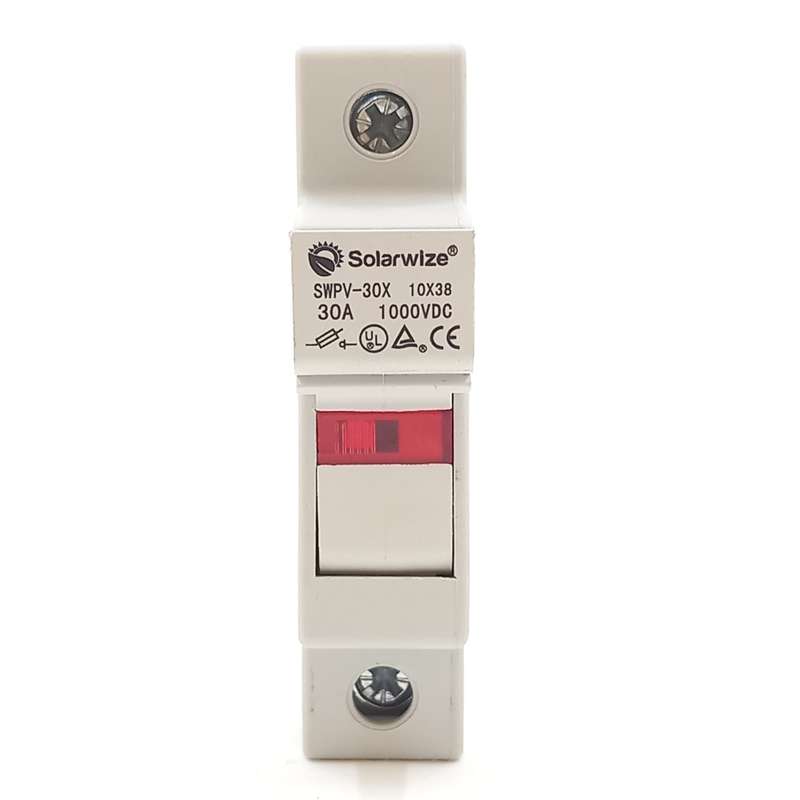

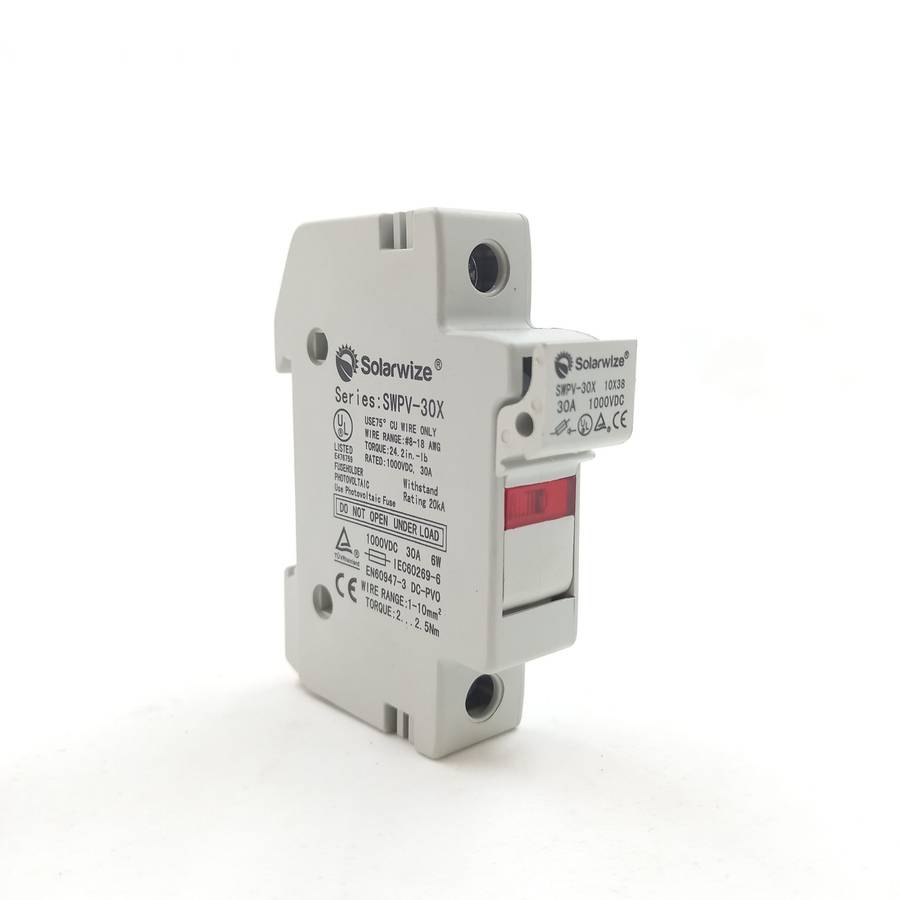

Series: SWPV-30X Fuse Holder | ||
Pole | 1P | |
According to | IEC 60269-6 | |
Electrical Characteristics | ||
Rated Working Voltage | Ue | 1000V DC |
Rated Current | In | 30 A |
Breaking Capacity | 20kA | |
Max Power Dissipation | 6W | |
Contol and Indication | ||
Operating State/Fault Indication | Indicator Light OFF/Indicator Light ON | |
Connection and Installation | ||
Wire | 1-10mm2 | |
Torque | Nm | 2 - 2.5 |
Installation Environment | ||
Fuse Size | 10x38 mm | |
Operating Temperature Range | TU | -30~+75 |
