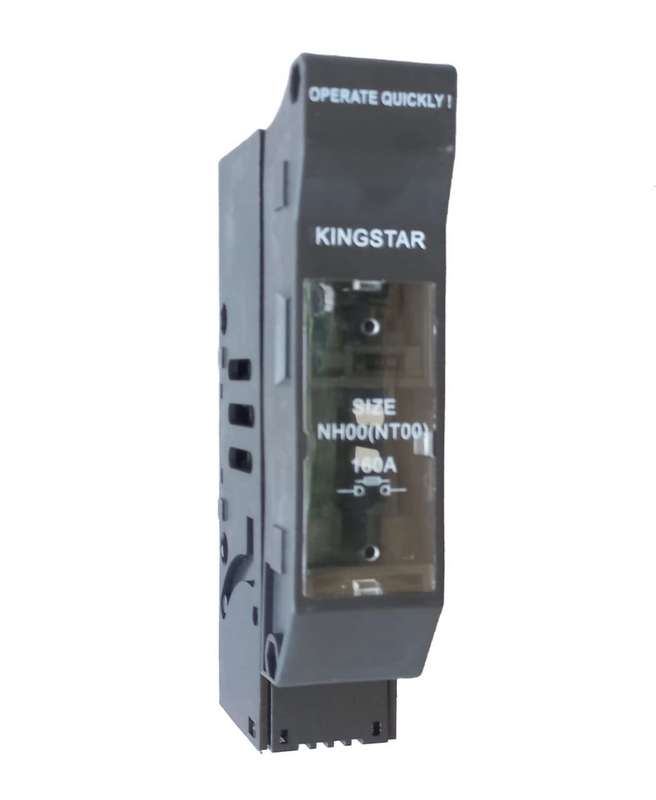

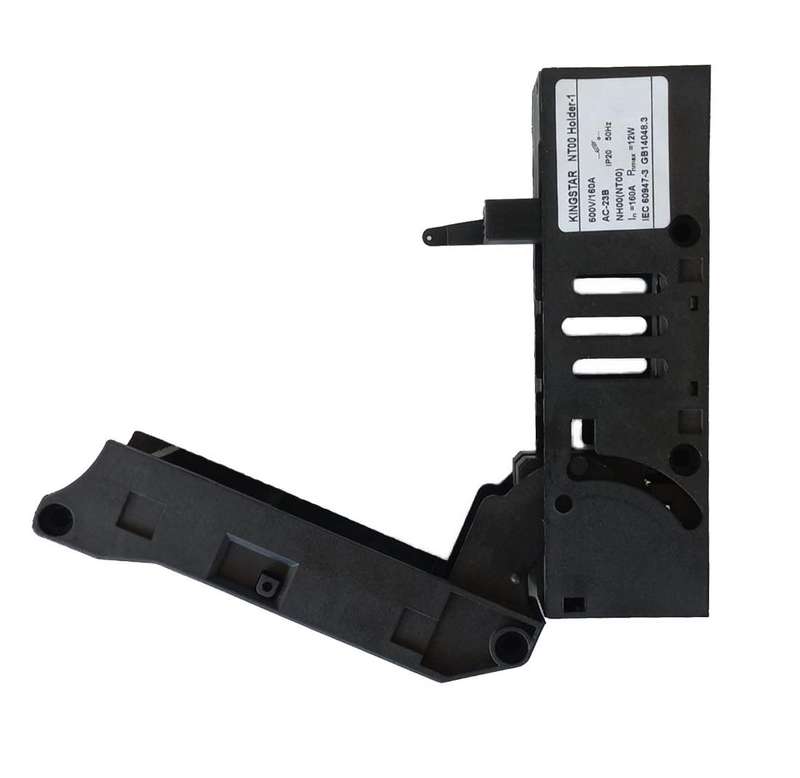

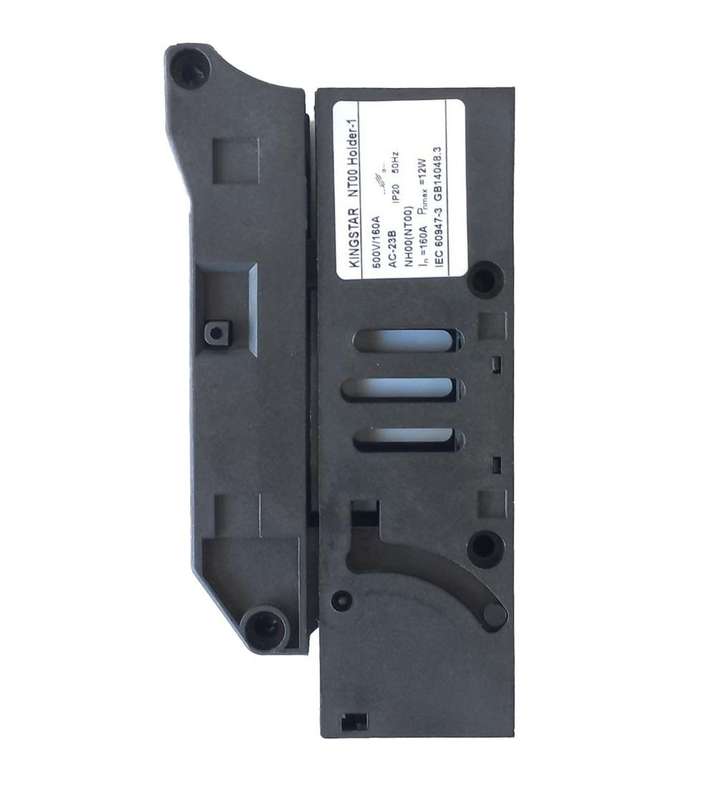

SJ019D - Skytec Battery Fuse Switch. Disconnector 1 Pole Maximum 160A DC Excludes fuse.

Introducing the Fuse Switch Disconnect Multibloc Holder, 1P 160A, suitable for both VAC (Voltage AC) and VDC (Voltage DC) applications: 690VAC and 220VDC.

Disconnect Multibloc Holder Overview: The MULTIBLOC series 00.ST8 production lineup includes NH fuse switch disconnectors rated at 160A. These units are specifically designed for bottom fitting and panel installation and are available in single pole, double pole, and quadruple pole configurations. When integrating MULTIBLOC NH fuse switch disconnectors into distribution units with central covers, corresponding covers are employed to ensure a uniform height and length profile. MULTIBLOC size 00 is tailored for NH fuse-links compliant with IEC/EN 60269-2, VDE 0636-2, size 00, 160A. The MULTIBLOC series offers users the advantage of swift and straightforward installation, coupled with a high level of security during both installation and maintenance procedures.

Key Features:

• Voltage Rating (VAC): 690VAC
• Voltage Rating (VDC): 220VDC
• Amperage Rating (A): 160A
• Standard Size: 00
• Mounting: Bottom Fitting/Panel
• Short-Circuit Current Rating (SCCR):
  • Ue = AC 400V, Ie = 160A, 80kA
  • Ue = AC 500V, Ie = 160A, 80kA
  • Ue = AC 690V, Ie = 125A, 50kA
• Number of Poles: 1, 2, 4
• Standards: IEC/EN 60 947-3, Suitable for NH-fuse links size 000/00 as per IEC/EN 60 269-2, VDE 0636-2

Applications:

• House Incoming Units
• Meter Distribution Units
• Measuring Transformer Cabinets
• Transmitting Stations for Telecommunications

Additional Information:

• Device Holder Type: Disconnect | Multibloc
