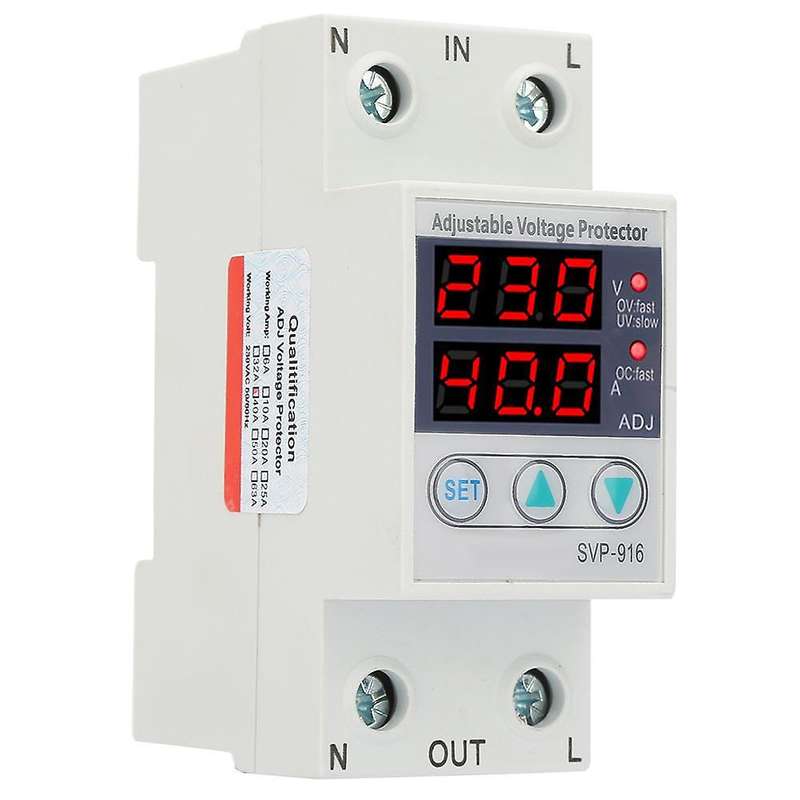

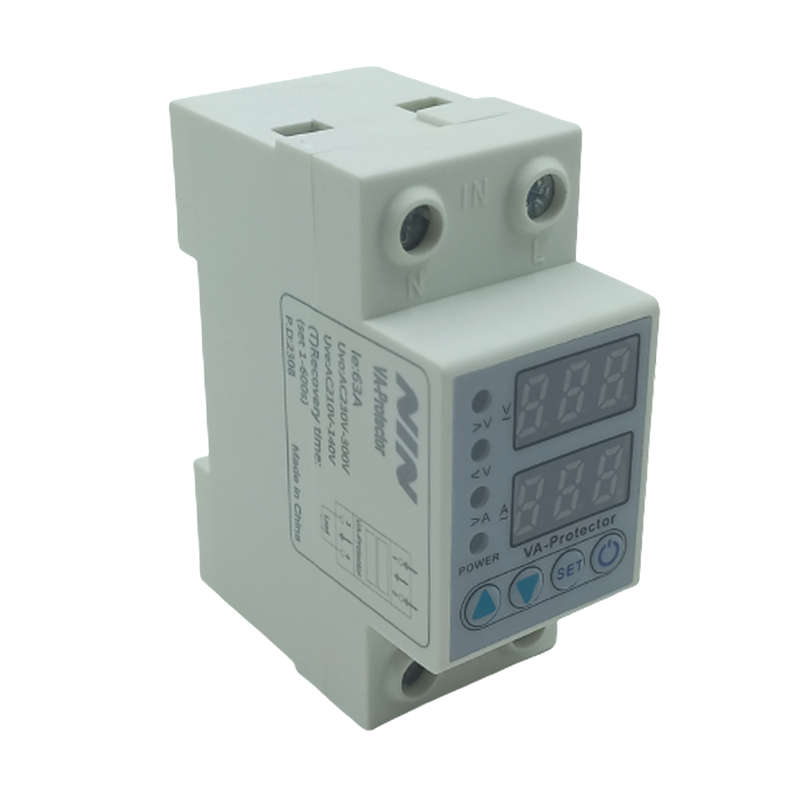

SJ043 Protection - Din Rail AC Intelligent Adjustable Voltage/Current Protection Switch - 63 amp

Key Functions:

1. Over-voltage Protection
2. Under-voltage Protection
3. Over-current Protection
4. Automatic Recovery
5. Voltage Display (Voltage Measurement)
6. Current Display (Current Measurement)
7. Voltage Calibration (A13)

Product Parameters:

1. Model Number: TOVPD1-60-EC
2. Power Supply: 230VAC, 50/60Hz
3. Max Loading Power:
   • 1~40A Adjustable (Default: 40A)
   • 1~63A Adjustable (Default: 63A)
4. Over-voltage Protection:
   • Value Range: 230V~300V (Default: 270V)
   • Recovery Voltage Range: 225V295V (Default: 250V)
   • Protection Action Time: 0.1s~30s (Default: 0.5s)
   • Recovery Delay Time: 1s~500s (Default: 30s)
5. Under-voltage Protection:
   • Value Range: 140V210V (Default: 170V)
   • Recovery Voltage Range: 145V215V (Default: 190V)
   • Protection Action Time: 0.1s~30s (Default: 0.5s)
   • Recovery Delay Time: 1s~500s (Default: 30s)
6. Over-current Adjustment Range:
   • 1-40A (Default: 20A)
   • 1-63A (Default: 40A)
   • Action Range: 0.1~30 seconds (Default: 0.5s)
   • Recovery Delay Time: 1s~500s (Default: 30s)
7. Power-on Delay Time: 1s~500s (Default: 10s)
8. Power Consumption: Less than 2W
9. Electric Machinery Life: 100,000 times
10. Installation: 35mm DIN Rail

This product, identified as the TOVPD1-60-EC, is a versatile and reliable device with a range of features, including voltage and current protection, adjustment options, and precise measurement capabilities. It is suitable for various applications and is easily installable on a 35mm DIN rail.
