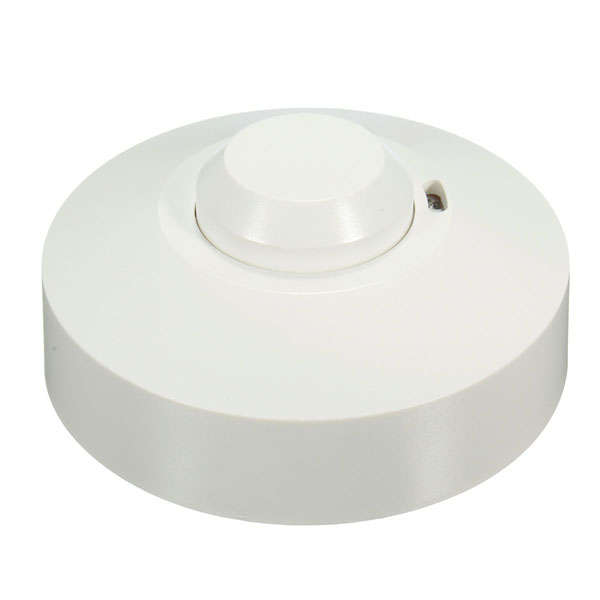

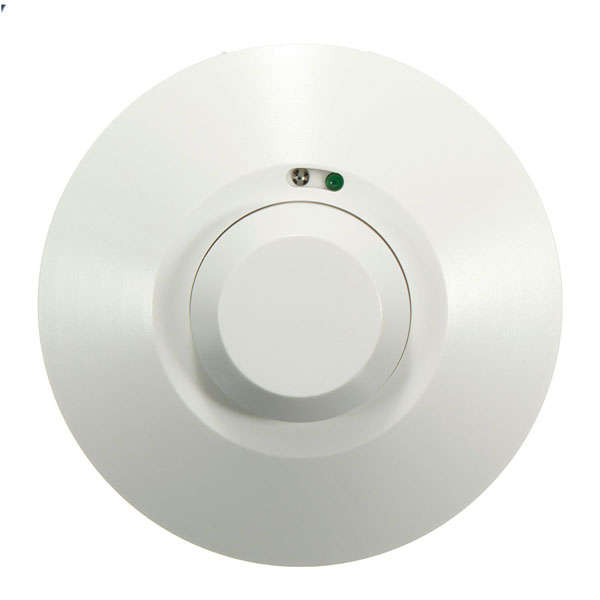

SK-701 AC 220V-240V 5.8GHz Microwave Radar Sensor Body Motion HF Detector Light Switch
1 was available / new
R225.00
0% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable. Check my rate
The seller has indicated that they will usually have this item
ready to ship within 15 business days.
Shipping time depends on your delivery address.
The most accurate delivery time will be calculated at checkout,
but in general, the following shipping times apply:
SK-701 AC 220V-240V 5.8GHz Microwave Radar Sensor Body Motion HF Detector Light Switch
Specification:

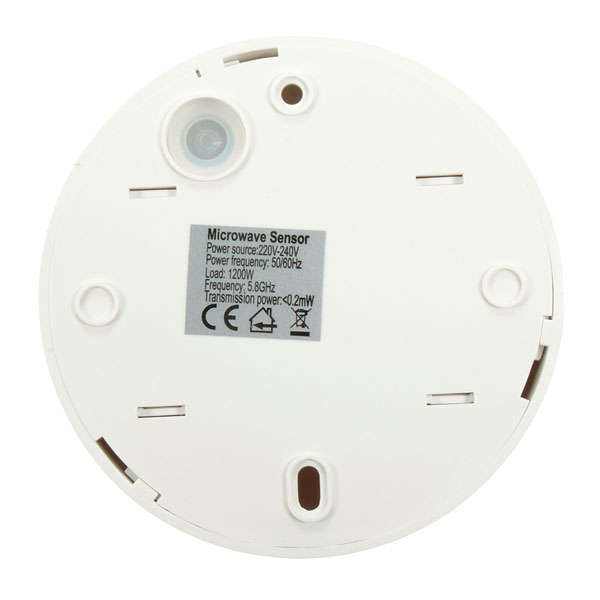

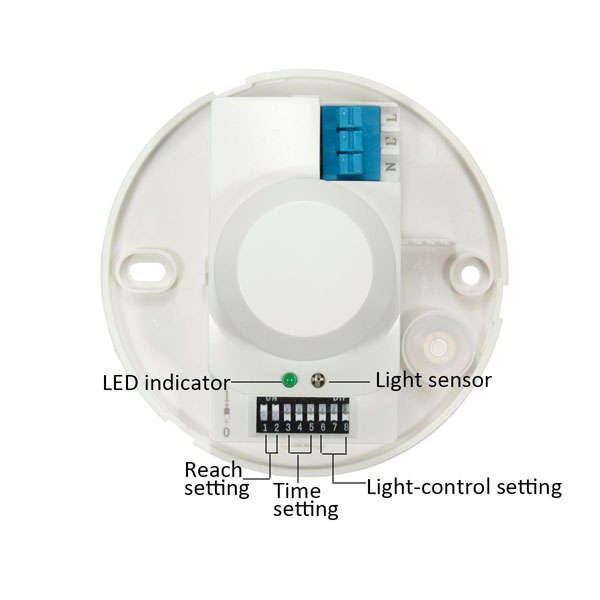

Operating voltage: 220-240V AC Power frequency: 50/60Hz Max load: 1200W HF system: 5.8GHz CW radar Transmission power: <0.2mW Power consumption: <0.5W Installation : Indoors, ceiling mounting Time setting: 10sec to 30min Detection angle: 360° Light control: 10-500LUX Size: 95 x 43mm
Installation instructions:

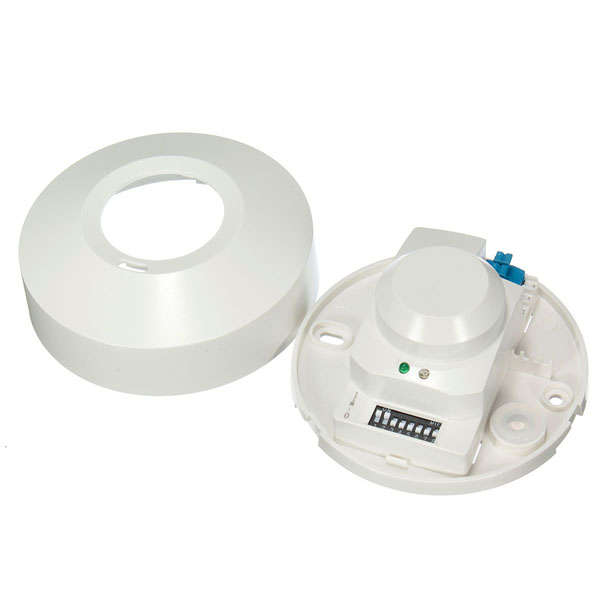

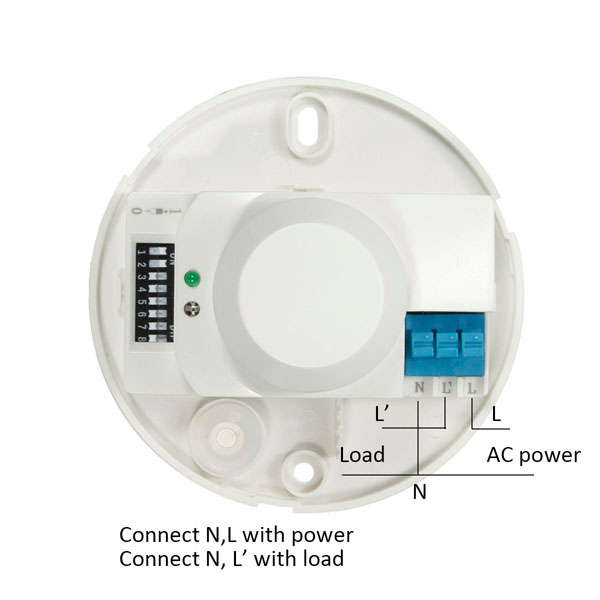

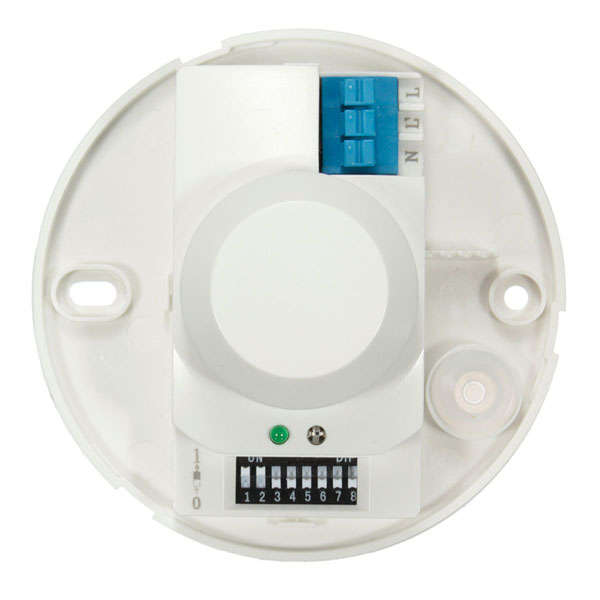

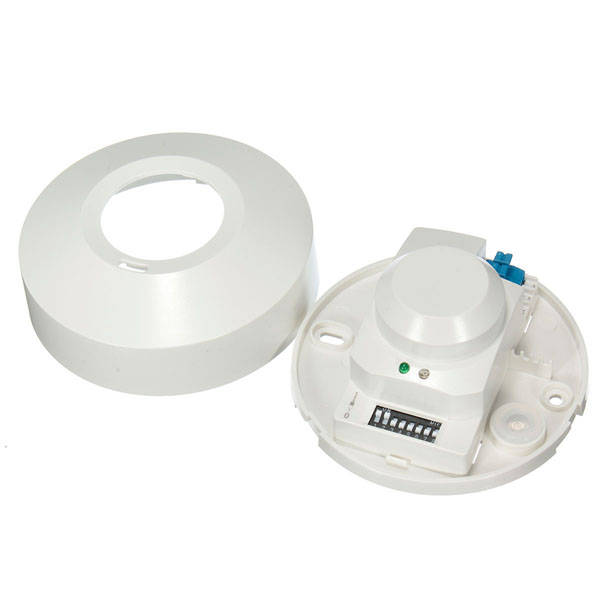

1. Take down the top cover by turning it anti-clockwise 2. Hold base against the wall and mark drill holes, paying attention to any existing wiring in the wall 3. Drill th holds, insert wall plug 4. Put the power wire and load wire through the base holes 5. Screw the base into place 6. Connect the main power supply and the load wire to the connection terminal according to connection-wire mark 7. Fit glass shad and turn it clockwise
Package includes:

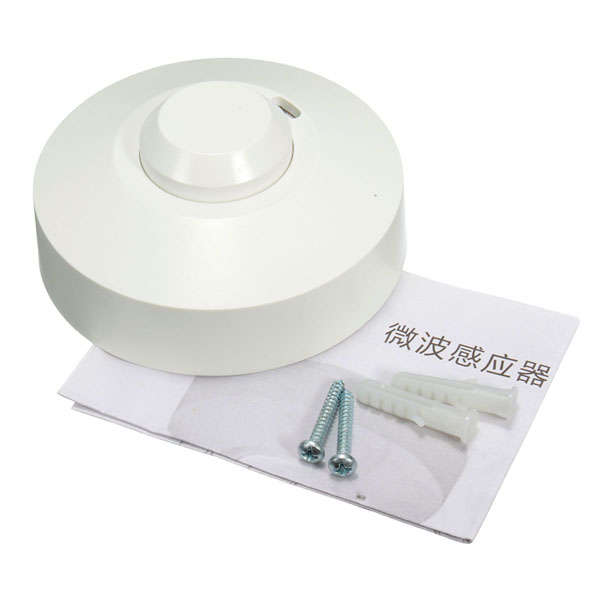

1 x Microwave Radar Sensor Switch 2 x Screws 1 x User Manual
