Related Product:
[
61 Keys Wooden Case Version] product ID:
1939443
Package Included:

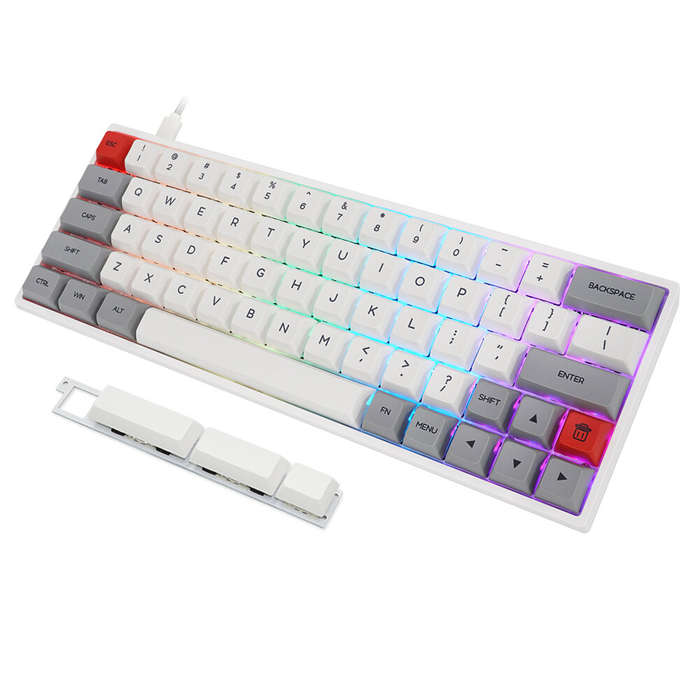

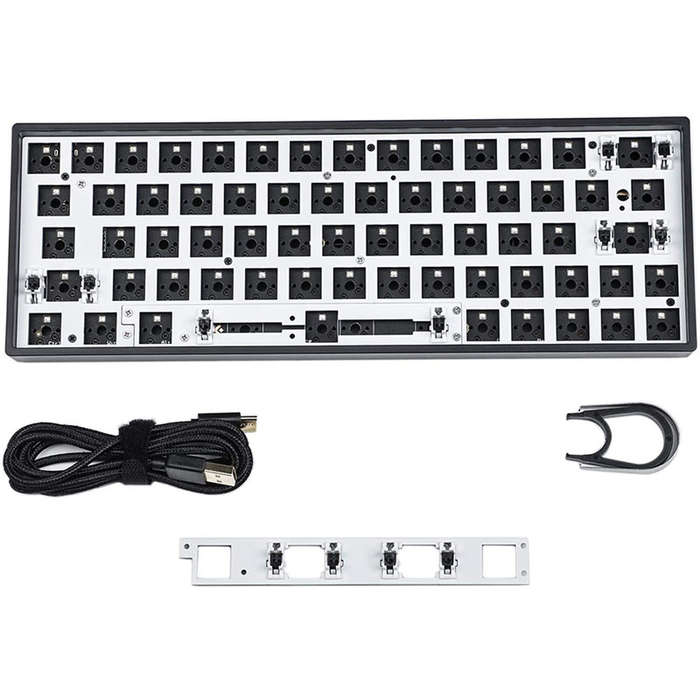

1 * Plastic Case + Feet + Stabilizers + Hotswap Type C PCB + Plate + Cable + Removal Tool + Space Module
Note:
GK64x is wired edition. GK64xs is bluetooth edition. bluetooth edition has an 1900mAh volume battery.

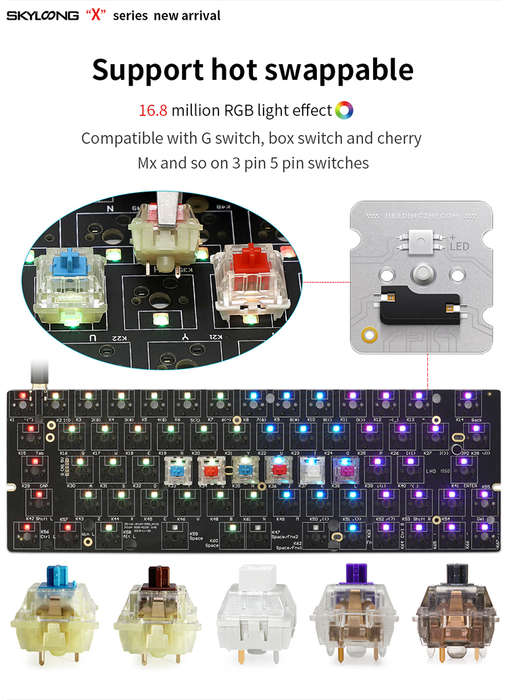

There is no switches and keycaps in the kit, you can order Cherry Gateron Kailh SMD Box switches etc yourself. Just put in switches in is ok, no need soldering again. 3 pin 5 pin both supported.

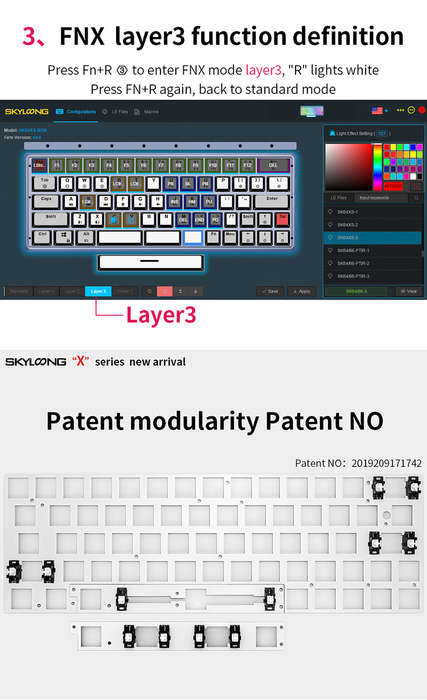

This PCB is fully programmable, however Fn sits at the right of bottom row and place can't change.
For the sake of the beauty of the product, the reserved clearance of the kit is small, and non professionals are not allowed to disassemble it at will. Manual disassembly may cause the USB port to fall off.
Features:
￢ﾗﾆ GK64X is wired edition which is upgraded for GK64. PCB is black high quality. GK64XS is bluetooth edition upgraded fro GK64s, battery is 1900mah. bluetooth edition support wired and bluetooth both.

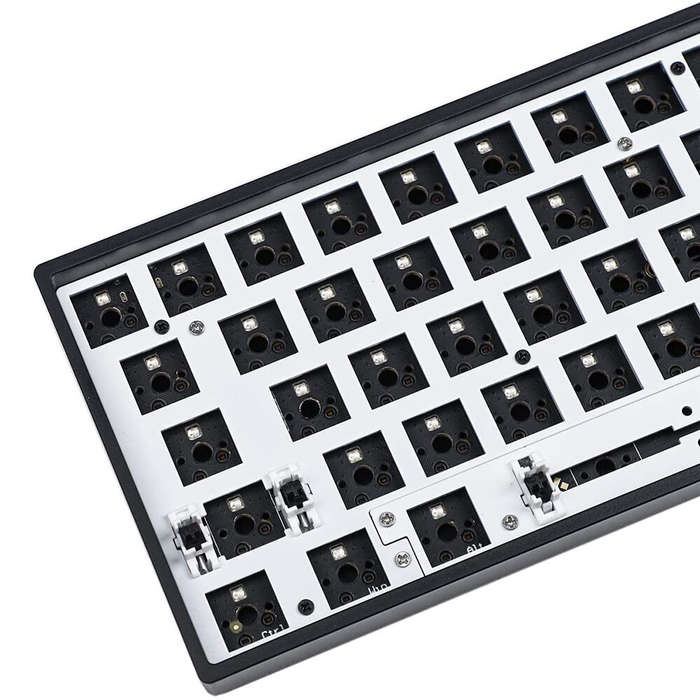

￢ﾗﾆ The stabilizers is produced by Gateron factory which is tighter and better than before. For linear switches, please unistall the stabilizer and clip it to get better tactile feeling. If clicky switches, can just keep as it is.

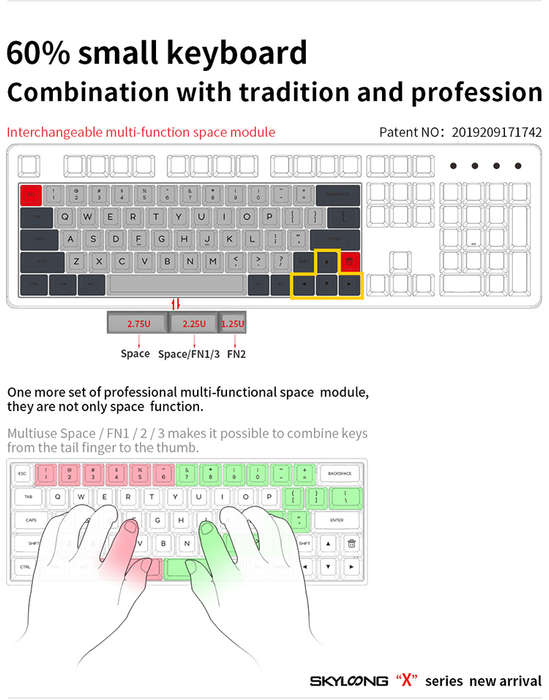

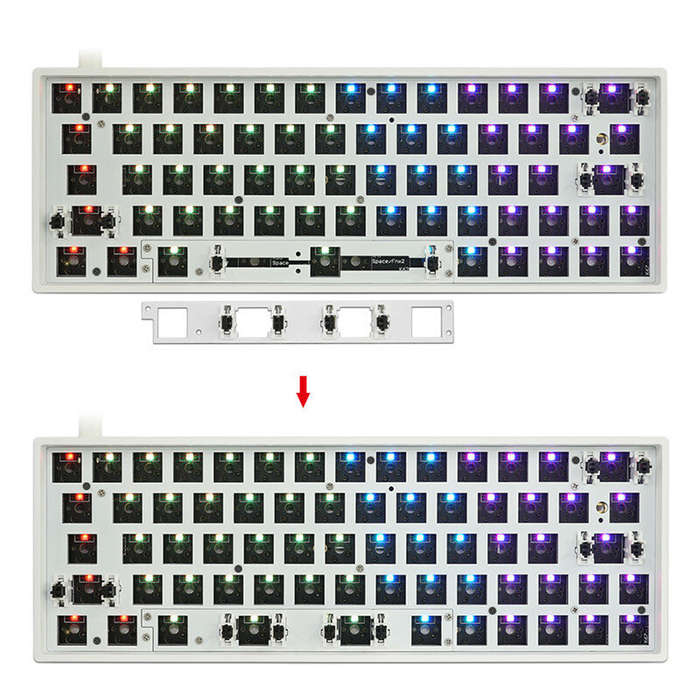

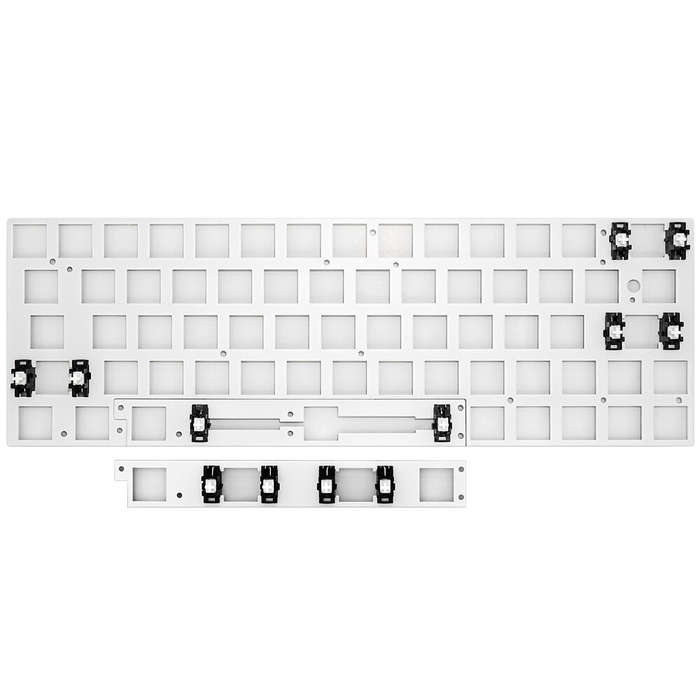

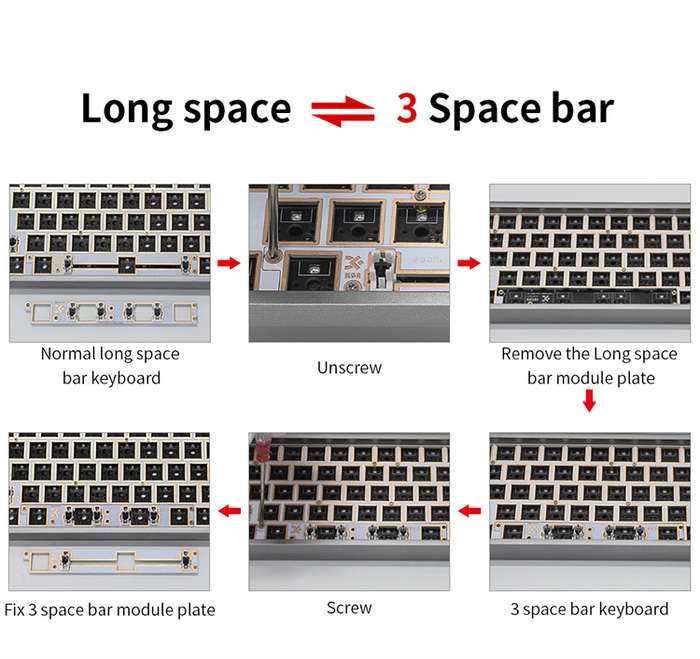

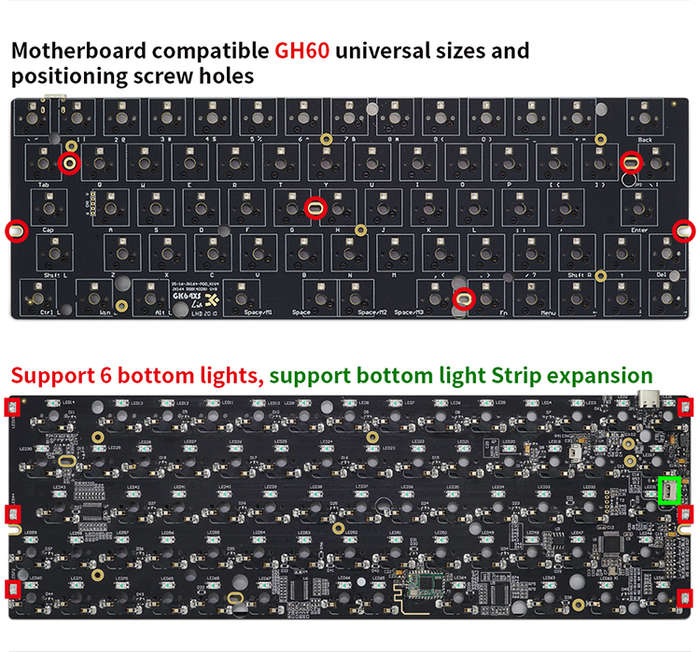

￢ﾗﾆ Replacable space module is screwed to case directly. If you want to replace to GH60 case, you need to replace a GH60 size plate which support 64 layout.
￢ﾗﾆ GK64x / GK64xs adds insert pin for underglow RGB strip now.

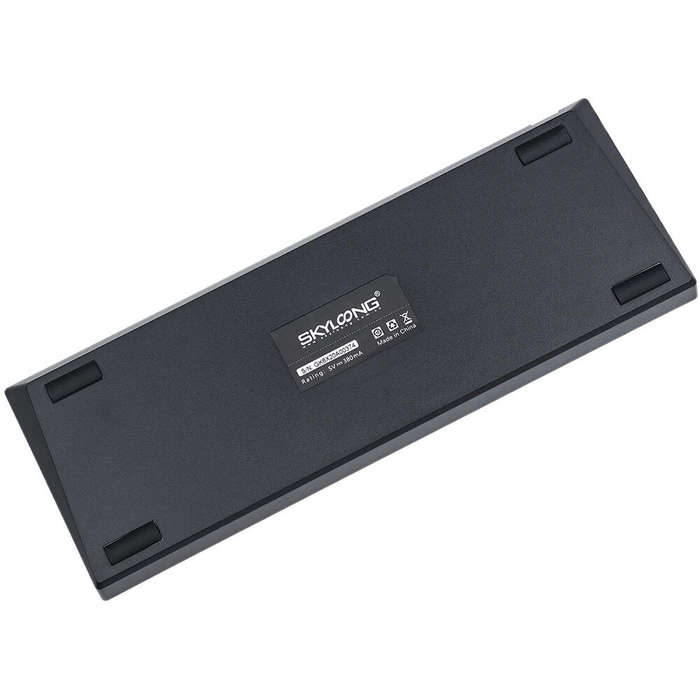

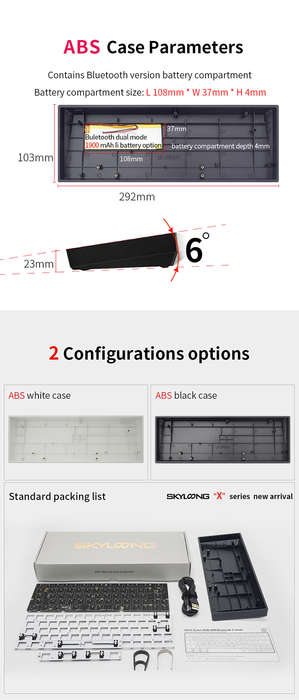

￢ﾗﾆ The new plastic case is ABS amoulded by Zealio factory which is higher quality and looks better than before.

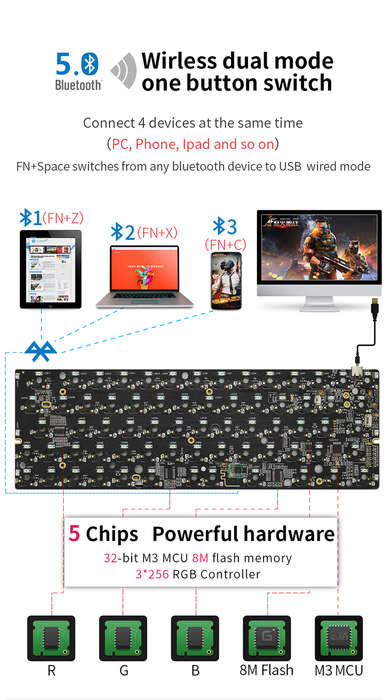

￢ﾗﾆ The chipset is MCU 32 bit, 8M Flash, 3 pcs 256*256*256 RGB drive to support full 16.8 million RGB.

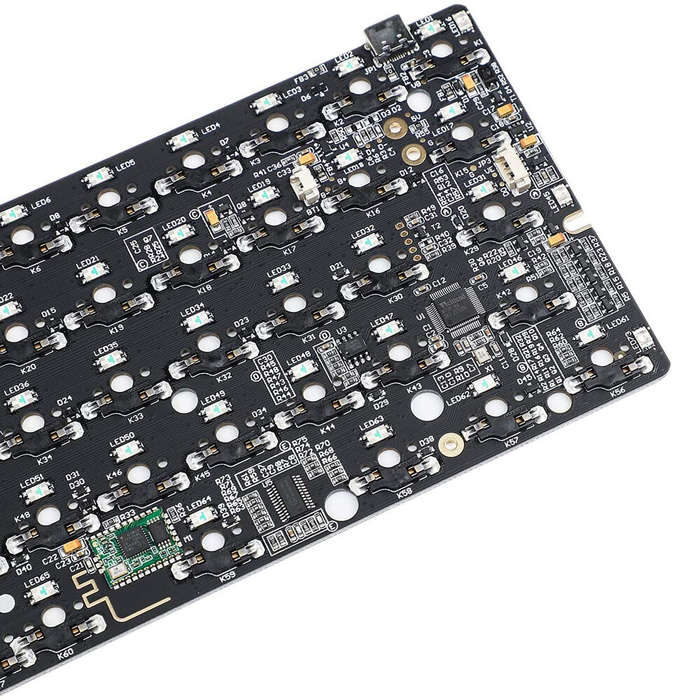

￢ﾗﾆ PCB has switches RGB presoldered, it's under per switch. There is no underglow RGB presoldered.
￢ﾗﾆ bluetooth option is bluetooth 5.1, uses broadcom bluetooth chip and program which is more stable even than some 4.0 in the market. You can switch wired and bluetooth mode with Fn + Spc, enter into pairing mode by Fn + ZXC, can connect 3 device at most.
￢ﾗﾆ bluetooth option RAlt ZXC Space key led is related to bluetooth mode, such as when battery volume is low, Ralt led will change color. So if these led color is different from other leds, it's not broken.
￢ﾗﾆ ￢ﾀﾋbluetooth stand by time is around 10 days, if you use it without led, it can last around 6-8 days, if you use it with leds, it last around 2-4 days. The battery will charge in auto when you insert USB to PC or charger when the capacity is under 90%.
