SKYRC E6 Lipo/Life 2S-6S 50W Balance Charger #SK-100052-02
Description:

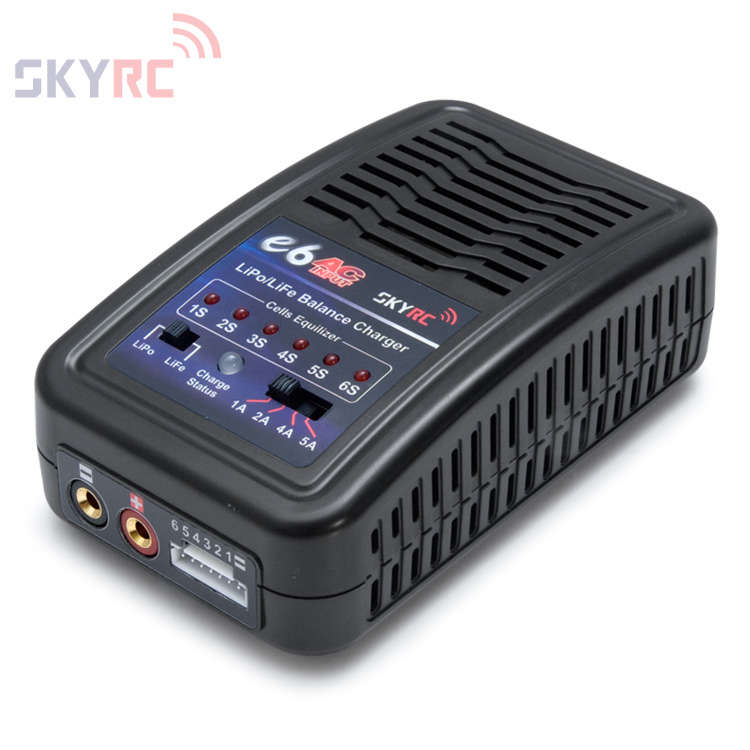

SKYRC e6 Charger is an economic, high quality 100-240V AC balance charger, designed for charging LiPo and LiFe batteries from 2-6 cells in balance mode. The circuit power is 50W and max charge current can reach to 5A. There are four kinds of charge current 1A/2A/4A/5A that can be selected. You could select the proper charge current according to the battery capacity.
There is one LED indicating the charge status (ready to charge/charge in CC mode/charge in CV/ mode/charge finish) and six LEDs indicating each battery cell status (charge/discharge). In this case, we could know the charge process at any time easily through the LEDs status.
The operation of the charger is also very simple. There are two toggle switches in the charger which can be used to selected battery type and charge current. After you power on the charger, select the battery type and charge current, connect the battery and charger with the balance board, the charger will start working.
Feature:
Low cost
Power supply built in: you could connect the AC power cord to the main AC socket directly.
AC Input 100-240V: you could use this charger all over the world and don' need to worry about any damage caused by improper input voltage.
Charge in balance mode: the voltage of each cell will be balanced so that the battery will be performed better and the cycle life will be longer.
Specification:
AC Input Voltage: 100-240V,50-60HZ
Output Power: 50W
Charging Current (Selected by Switch): 1A,2A,4A,5A
Battery Type (Selected by Switch):LiPo/LiFe
Battery Cell Count: 2-6S
Current Drain for Balancing: 200mA
6 LEDs for Balancing Indicatior
1 LED for Charging Status
Dimension: 82.7*140.5*45.7mm
Weight: 310g
Include:
SkyRC e6 Charger
AC Power Cord
18AWG Wire Charging Cable
Balance Adaptor
