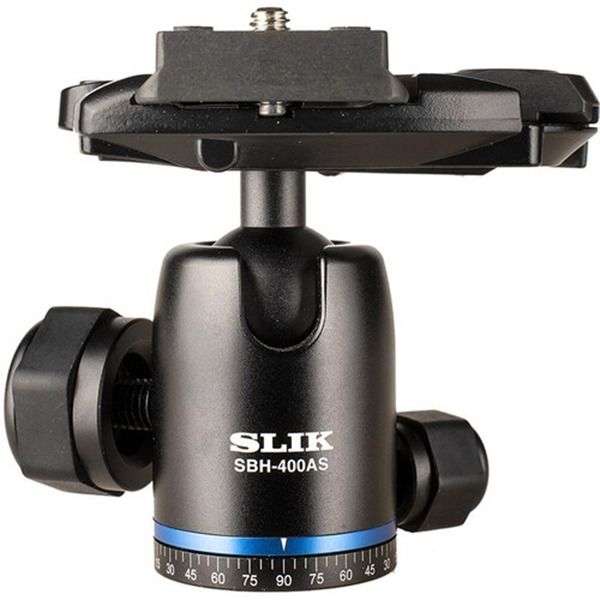

Slik SBH-400AS Ball Head

SBH-400AS is a compact ball head has "Cam-Lock" style Arca-Swiss type quick release system for easy mounting of your camera. The "Cam-Lock" quick release system allows user to attach or detach camera from top of the platform and no need to slide in or out the plate from the grooves.

Weighing just 280g, the SBH-400AS ball head supports up to 4.0 kgs. of gear. The head is capable of handling a professional DSLR with standard lens. The head also has a separate lock with degree markings around the base for stitching together panoramic photos.

The head to tripod connection is a standard U3/8 thread and comes with a U1/4 20 thread adapter to mount to your tripod legs of choice.

"Cam-Lock" style Arca-type compatible Platform
The lock lever automatically springs back to lock the quick shoe when the camera pushes down to the platform. You can easily attach and detach the camera without having to insert the quick shoe plate into the groove.

Specifications

Load capacity: 4 kgs
Type of Bubble Level: Single bubble level
Camera mounting screw: U1/4
Tripod mounting screw: U3/8 (U1/4 with threaded adapter)
Base diameter: 37mm
Size of camera platform: 38 x 62mm
Camera Platform: Q.R.S. 6507
Height: 80mm
Weight: 280g

In The Box

Slik SBH-400AS Ball Head
