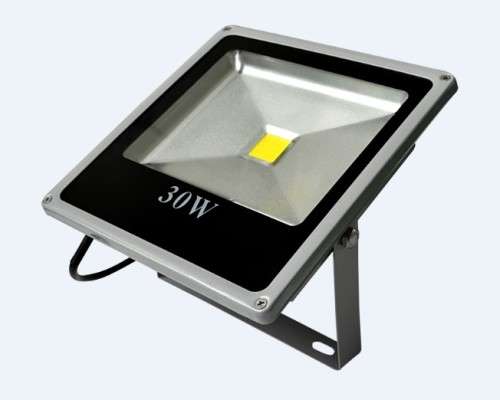

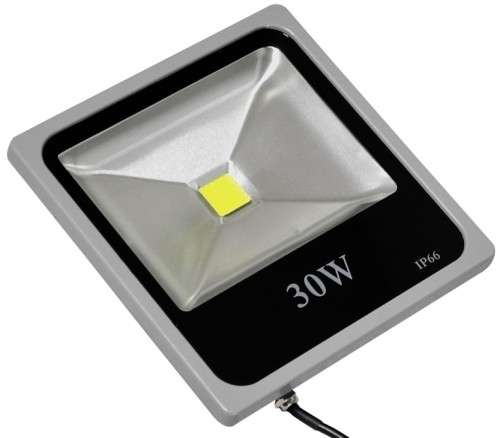

Slim LED Floodlight, 30W, Part No.: FL-S30W

 Key features

*Slim design, elegant and less weight
*Best CP(cost/price)value
*Super bright Epistar/Bridgelux chip as light source, low voltage constant current drive.
*Use the high thermal conductivity aluminum, surface electrostatic processed and sprayed with high heat dissipation material.
*Excellent heat emission, reasonable structure design, higher waterproof and dustproof effect.
*CE(EMC, LVD), Rohs certified
*Lamp mounted by screws, easy installation and fixed firmly.
*Widely used for indoor and outdoor lighting project such as warehouse, mine, factory, billboard etc.

Technical Parameters

 Dimension(mm/inch)

Illumination Diagram

Instructions
1. Please cut off the power supply before installation.
2. Make sure the lamp accessories are complete and prepare installation tools.
3. Fix the lamps firmly on the mounting bracket by tools.
4. Adjust the radiation Angle to the right position and fixed it firmly.
5. For outdoor application and better waterproof and dustproof , please well connected the wire with a protective waterproof junction box.
6. Turn on the power after examination, adjust its lighting direction as customers situation.

Remarks
For safety secure, please only install, repair and examine by professionals person. Otherwise it may cause dangerous.
The lamps must be operated with the matchable power supply.
Please don’t install the lights under the high temperature and damp environment, or it will cause damage.
Make sure at least 75mm spaces around the light for heat dissipation.
Make sure no any covers like insulation blanket or similar materials in the surface of the Light.
Please take care the glass cover when installing.
