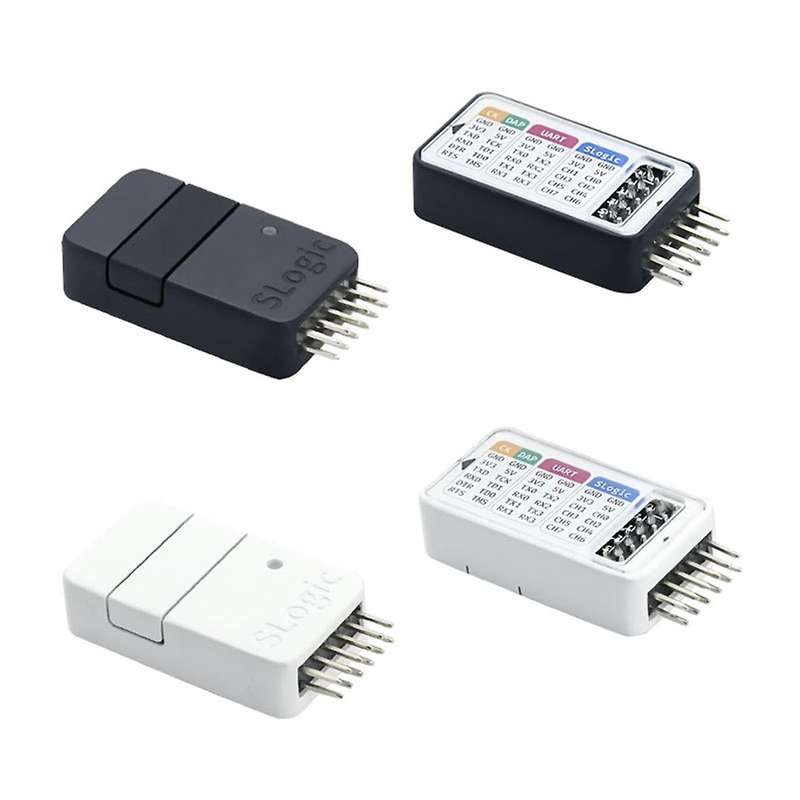

SLogic Combo 8 Slogic Analyzer DAPLink CKLink Debugger Tool CKLink Debugger -Link Debugger UART Modu

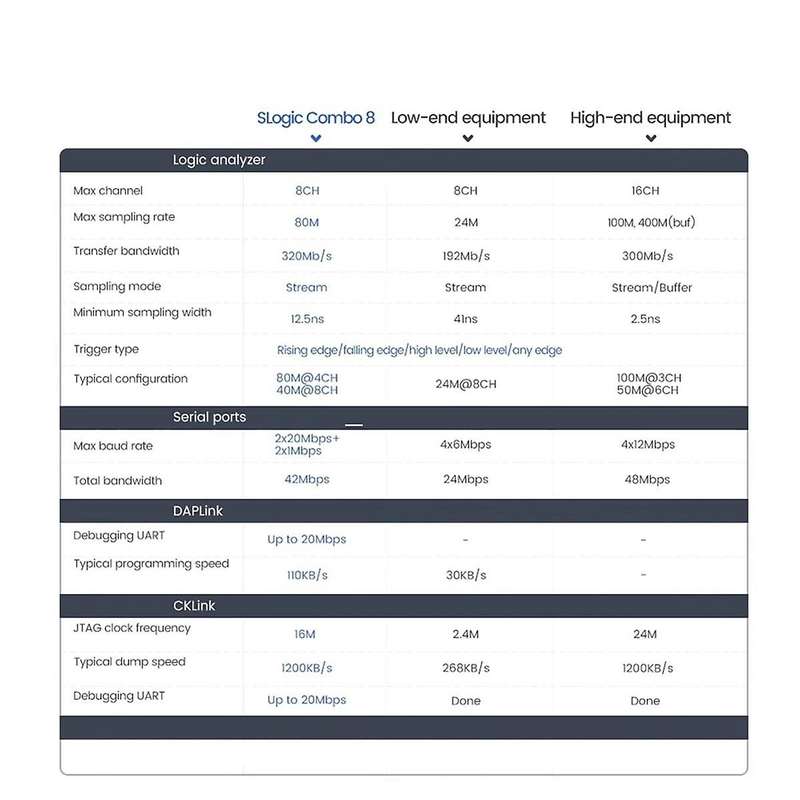

SLogic Combo 8 is a development tool that combines the functions of a logic analyzer, CKLink Debugger, -Link Debugger, and USB2UART. You can switch functions at will by pressing the button during use.When used as a logic analyzer, it supports a maximum sampling rate of 80MHZ, and can cooperate with the host computer to analyze most protocols;When used as a UART module, it supports 4 serial ports at the same time, and supports a maximum baud rate of 20M, which can adapt to most scenarios where serial ports are used;Use as CKLink or DAPLink It can be used to debug RISC-V series chips and ARM series chips, and additionally supports 1 serial port for observing logs.SLogic function parametersLogic Analyzer: SLogic Combo 8Maximum number of channels: 8CHMaximum sampling rate: 80MTransmission bandwidth: 320Mb\/sSampling mode: StreamTypical configuration: 80M@4CH 40M@8CHSignal input range: 0~3.6VHigh and low level threshold: VIH 2V VIL Less than 0.8VNote: The maximum transmission bandwidth of SLogic Combo 8 under Windows environment is 160Mb\/s, and the typical configuration is 80M@2CH 40M@4CHCKLink function parametersJTAG clock rate: 16MTypical dump speed: 1200KB\/sDebug serial port: up to 20MbpsDAPLink function parametersDebug serial port: up to 20MbpsTypical burning speed: 110KB\/sUART function parametersHigh speed four serial portsMaximum baud rate: 2x20Mbps+2x1MbpsTotal bandwidth: 42MbpsMaterial: plasticcolour: blackPackage Contents:1 x SLogic Combo 8 Slogic Analyzer1 x USB Type-C data cable1 x Jump wire10 x chip clampOnly the above package content, other products are not included.Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
