SM852B 3 Phase Rotation Tester Indicator Detector Meter(Orange)

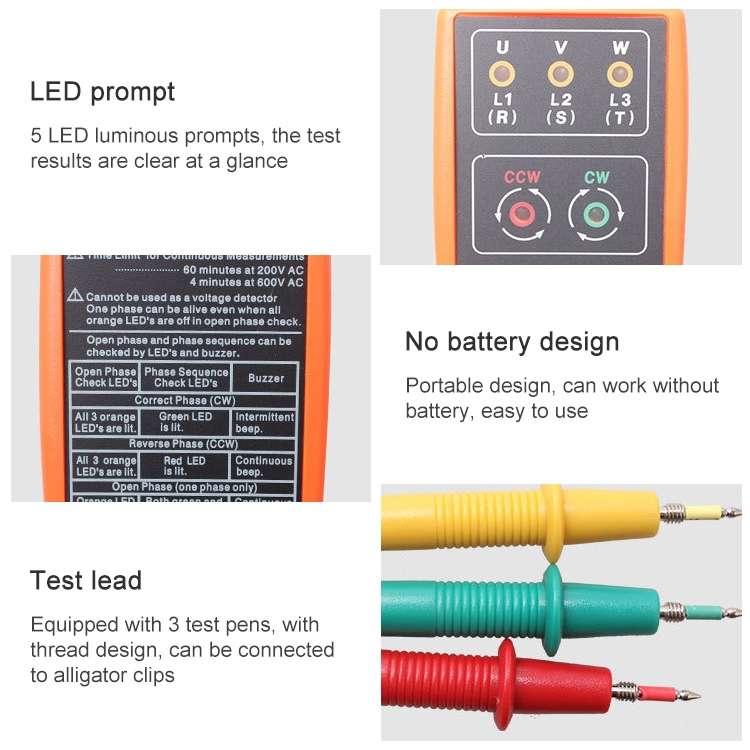

1. Description: It is used to measure the opening phase condition and order through LED and Buzzer.
2. Measuring frequency range:20Hz~400Hz
3. Operational Voltage:60V-600V (3 Phase AC)
4. Limit Support Voltage: 2000V/minute (impulse voltage 4000V)
5. Limit Time for continuous use:
- 60 minutes maximum at 200V AC
- 4 minutes maximum at 600V AC
6. Test Leads: Double insulation, with 67cm length (Approx.)
7. One unit with 2 functions: The instrument was designed to check the phase sequence, and at the same time it has LEDs to show you if the phase is open or not.
8. Alligator Clips: They can easily involve the terminals of the control panel to be tested, guaranteeing reliability and safety.
9. Highly reliable: It can check a large range of 60V to 600V AC three-phase. The instrument guarantee high reliance and performance.
10. Functional Design: Small, light and portable. It was designed to facilitate the operation to the maximum.
11. Dimensions: 85x64x23mm(Approx.)


S-DT-0191
