Please note: 2x of these are usually required as Poynting antennas usually have 2x SMA connectors for vertical & horizontal antennas

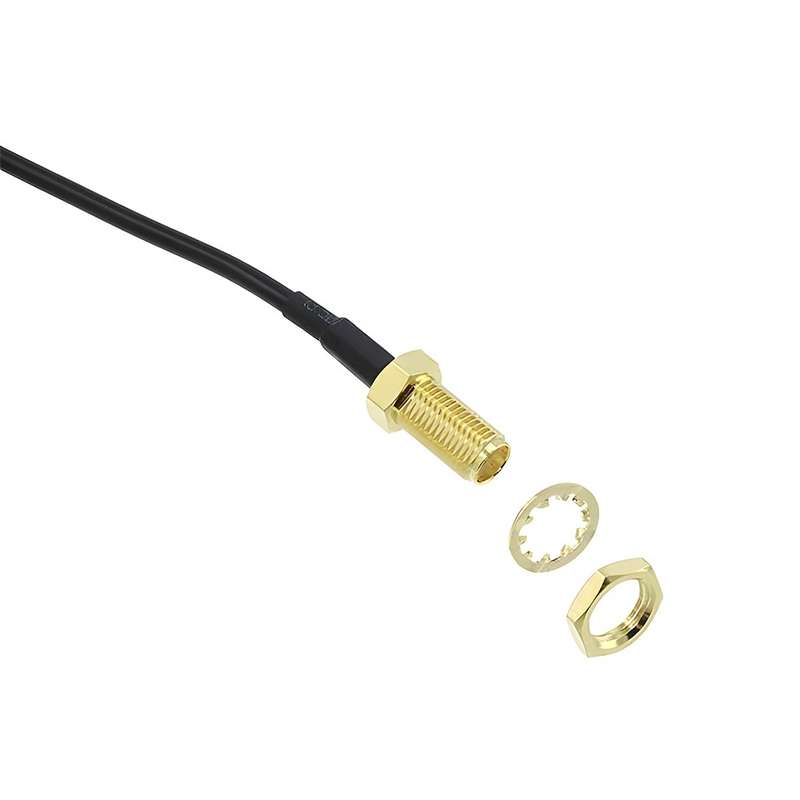

- Series: TS9 male plug to SMA female
- Connector material: Gold-plated copper
- Convert From: TS9 male jack
- Convert To: SMA female jack
- Temp. range: -65 +165°C (PE Cable -40 +85°C)
- Vibration: MIL-STD-202,Method 213
- Impedance: 50
- Frequency Range: DC 12.4GHz(0-18GHz)
- Working Voltage: 335V max
- Withstand Voltage: 1000V rms
- Centre Contact: 3 m
- Outer Contact: 2 m
- Insulation resistance: 5000 M
- Insertion loss: 0.15 dB/6GHz
