Description :
SMA Splitter / Joiner 3 Way Adaptor Converter SMA FEM to SMA RP T Type
1.O-ring sealing 6146 silastic
2.Shell brass goldplated
3.Inner conductor beryllium or tin brass goldplated
4.Crimping suite copper alloy nicked or goldplated
5.Insulator PTFE
Specification :
Technical characteristics
Temp.range : -65~ +165 (PE Cable -~ +85)
Impedanec
: 50Ω
Vibration
: MIL-STD-202,Method 213
Frequency Range
: DC~12.4GHz(0~18GHz)
Withstand Voltage
: 1000V rms
Working Voltage
: 335V max
Contact resistance
Center Contact
: ≤3mΩ
Outer Contact
: ≤2mΩ
Insulation resistance
: ≥5000 mΩ
Insertion loss
: ≥0.15 dB/6GHz
VSWR Straight
: ≤1.10+0.002f
≤1.05+0.001f
Right angle
: ≤1.20+0.003f
≤1.10+0.001f
Durability(mating)
: ≥ 500 (cycles)
Package included :
1 x
SMA Splitter

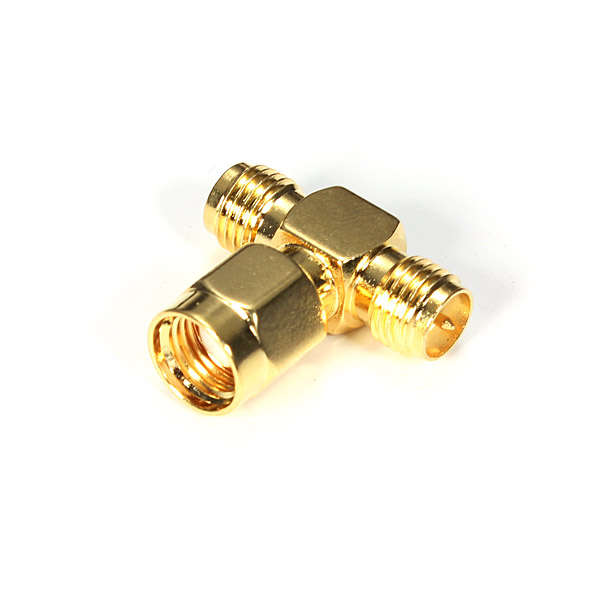

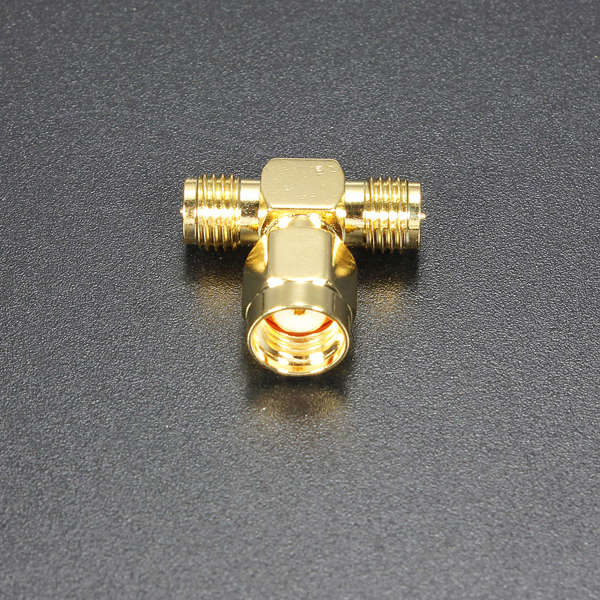

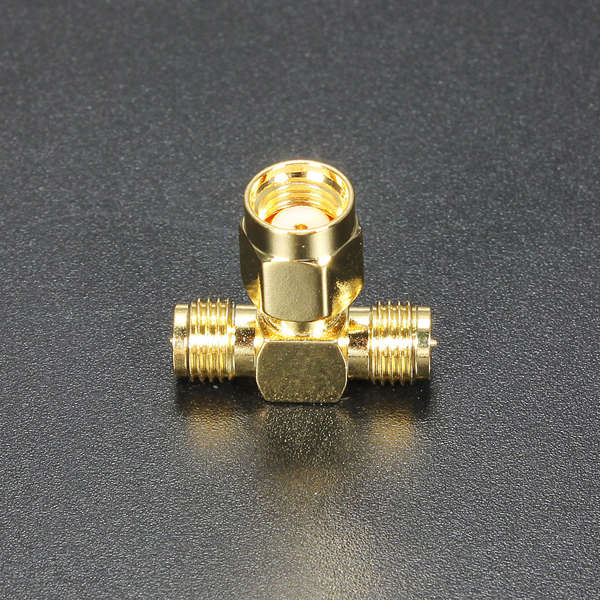

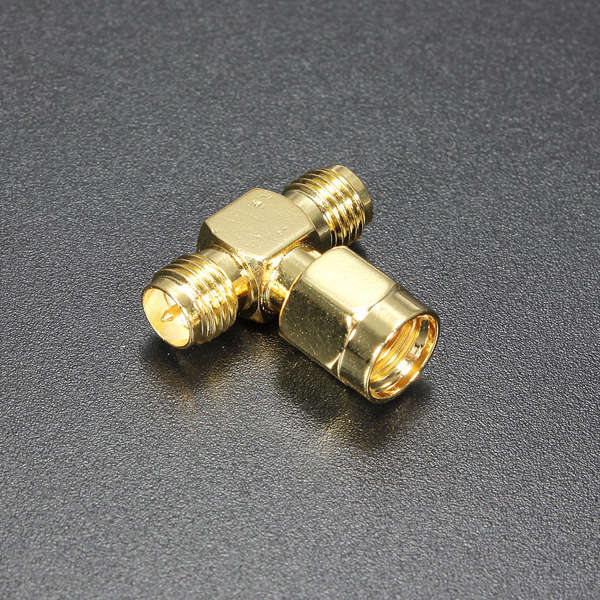

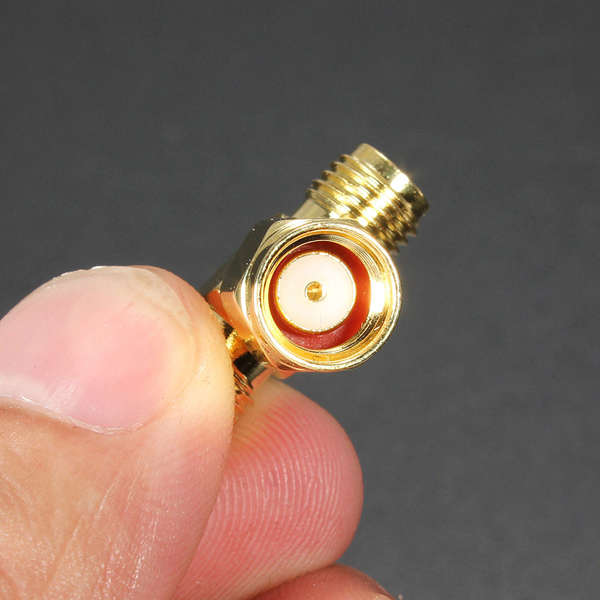

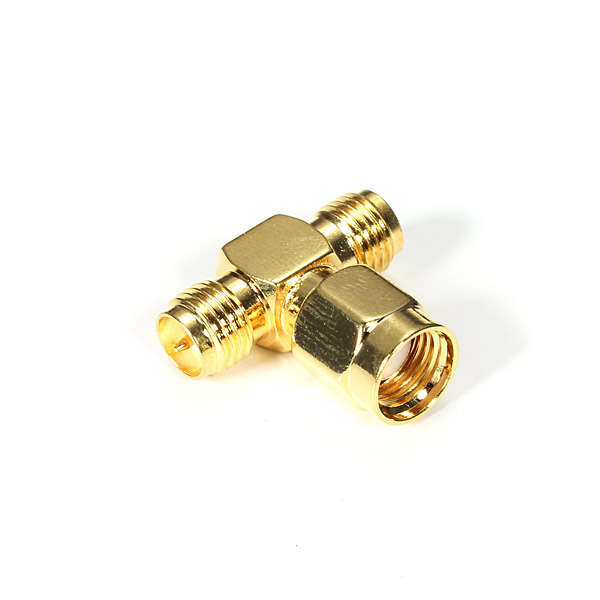

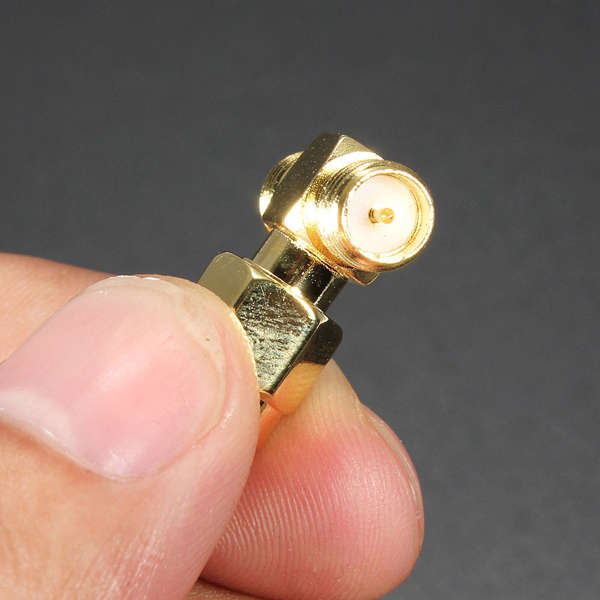

Details pictures :
