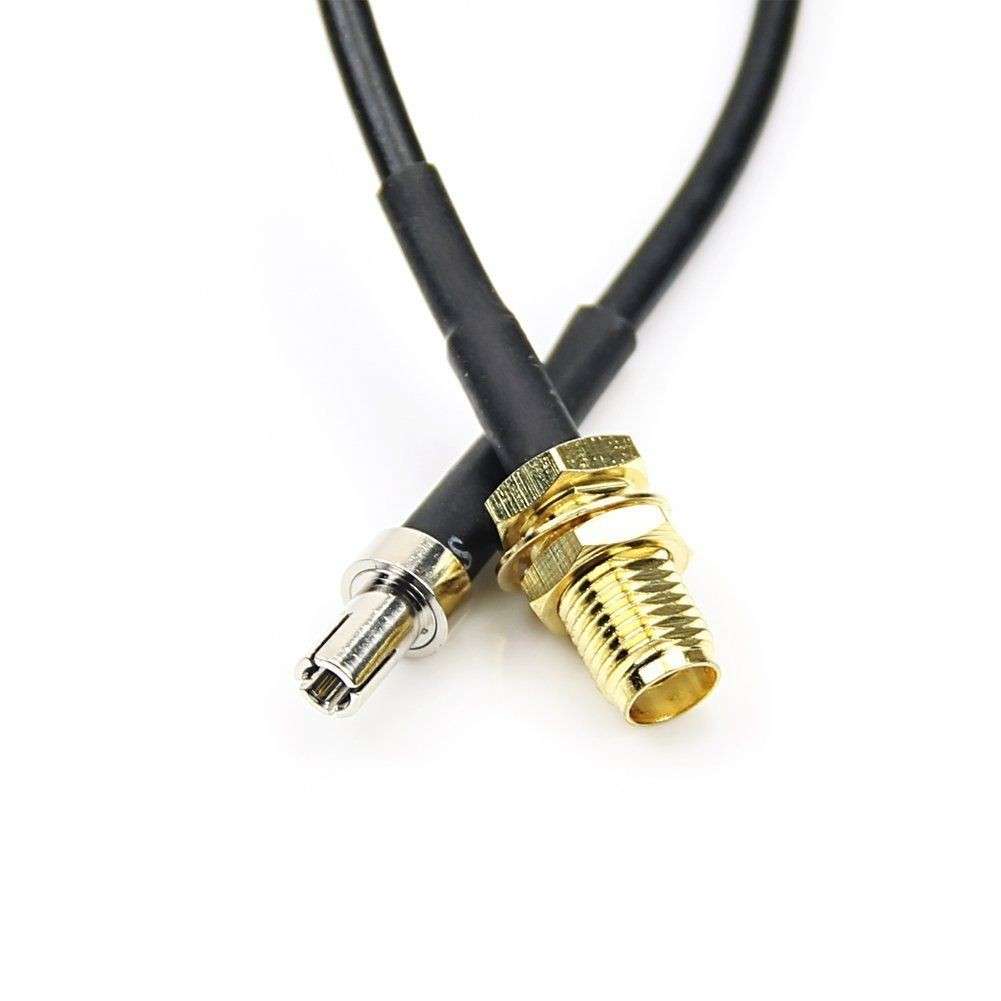

Series | TS9 male plug to SMA female |
Connector material | Gold-plated copper |
Convert From | TS9 male jack |
Convert To | SMA female jack |
Temp.range | -65 +165°C (PE Cable -40 +85°C) |
Vibration | MIL-STD-202,Method 213 |
Impedance | 50Ω |
Frequency Range | DC 12.4GHz(0-18GHz) |
Working Voltage | 335V max |
Withstand Voltage | 1000V rms |
Centre Contact | ≤ 3 mΩ |
Outer Contact | ≤ 2 mΩ |
Insulation resistance | ≥ 5000 MΩ |
Insertion loss | ≤0.15 dB/6GHz |
