Smart 1Ch Self Locking Inching Relay Switch 10A, Tuya
If you can image it, you can probably 'Smart Switch' it with this versatile, cost effective 1 Channel Smart Relay board. Enables remote control of any devices or home appliances via WiFi through the Tuya application SmartLife application installed on your phone or tablet (Android or IOS). Simply 'Wire, Configure and Play'.Home Automation has never been this Smart, Simple and Affordable. Tuya offers the fastest switching, most stable platform and widest range of ever growing Smart Products. Supports Alexa, Google Home and IFTTT.Note: this is the NEW Improved PC Board with Black relays (previous version had Blue relays)
- We stock 1Ch, 2Ch & 4Ch Inching relays [click here]
- To view of full range of Tuya Smart Wifi Products [click here]
If you are looking a dedicated Smart Garage Door / Gate opener [click here]With so many smart home platforms available, WHY TUYA
[click here]. Great way to make any appliance or device 'Smart'.

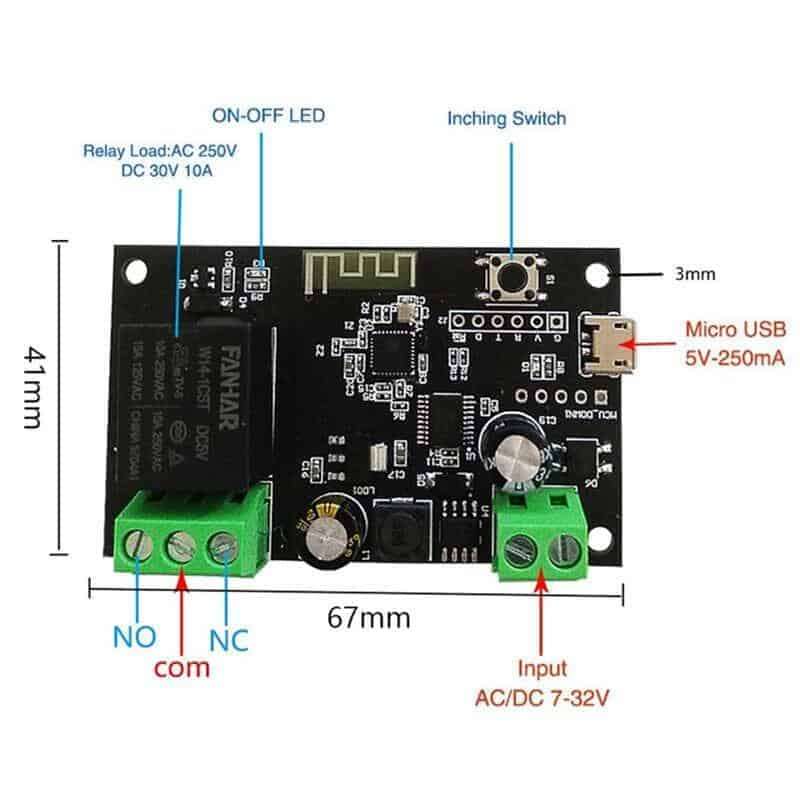

Product Features (refer to additional images for connection & wiring diagrams) - Working Modes: selectable via the mode button to switch
- self-locking mode: turn devices ON or OFF instantly.
- inching mode: toggle devices ON then OFF by tapping the PWR button on you phone
- Switching voltage range: 230VAC or DC , 10A
- Wide PCB Input voltage range: 7-32VDC, 5-22VAC or micro USB 5VDC
- LED indication
- Small and Compact design. Ease of Installation. 0.7sec On or Off (simulates an existing remote control)Activation dates, days of the week, start time and duration can all be pre-configured via the Smartlife application giving you complete remote control and ON/Off overwrite.
- Supports Voice Commands and AI (Artificial Intelligence) platforms such as Amazon Alexa Echo and Google Home solution.
- All your Smart Devices connected via a Single Stable Platform been the Smart Life app from Tuya. We ONLY sell TUYA so all products use the SmartLife app. How do I get started [click here]
Available in 1Ch, 2Ch and 4 Ch variants. You can combine boards to obtain any number of smart switching contacts
Typical Uses - Unlimited Applications the 10A relay can be wired to either NC (normal closed) or NO (normal open) to switch any voltage up to AC250V/10A or DC30V/10A.
Download the User Manual [click here]Smart WiFi Switches - Product Variants Available: - 1Ch relay board + Shell | Input Voltage: 8-40VDC or 5-22VAC or micro USB 5VDC [click here]
- 1Ch relay board | Input Voltage: 7-32VDC or 5-22VAC or micro USB 5VDC [click here]
- 1Ch relay board + Shell | 433Mhz RF + Remote Control & Bluetooth | Input Voltage: 85-250VAC or micro USB 5VDC [click here]
- 2Ch relay board | Input Voltage: 7-32VDC or 5-22VAC or micro USB 5VDC [click here]
- 2Ch relay board + Shell | 433Mhz RF + Remote Control & Bluetooth | Input Voltage: 85-250VAC or micro USB 5VDC [click here]
- 4Ch relay board | Input Voltage: 7-32VDC or 5-22VAC or micro USB 5VDC [click here]
- 4Ch relay board | 433Mhz RF + Remote Control | Input Voltage: 7-32VDC or 5-22VAC or micro USB 5VDC [click here]
- 4Ch relay board + Shell | 433Mhz RF + Remote Control & Bluetooth | Input Voltage: 85-250VAC or micro USB 5VDC [click here]
Optional Items (recommended): - Need a power supply & short cable (USB to 3x micro USB) [click here]
- Need to mount the PC Board, M3 standoff / hex pillar [click here]
- Need a suitable enclosure or housing ? [click here]
Specifications| Work Voltage | 7-32VDC or 22VAC Terminal Block or Micro USB Port 5VDC |
| Relay Opening time | 0.7 seconds |
| Relay Load | AC250V/10A or DC30V/10A |
| Switch mode | Switch/Mobile phone |
| WiFi Standards | IEEE 802.11 b/n/g 2.4G Hz |
| Support Voice Control | Work with Amazon Alexa/Google Assistance/IFTTT |
| Operation Temp. | —10C to +60C |
| Humidity | 5%--95% non-condensing |
| Dimension | PCBA: 6.7*4.1*1.7cm |
| Weight | 0.05kg |
What's in the Box?1x Tuya Smart 1Ch Relay Board1x Instruction Manual
