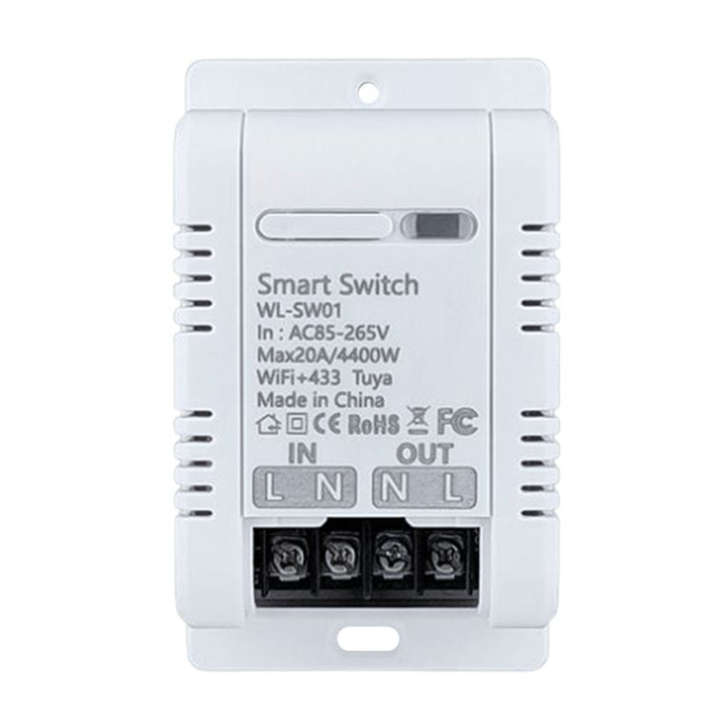

Smart Switch Basic 20A 4.4kW | 433MHz RF function | WiFi Tuya Smart Life
This High Current load Basic 20A Smart WIFI switch can be used to make any appliance or device that uses a mains input of 230V 'Smart'. Smart Home switch 20A or 4,400Watts Controller. Offers you full control of your pool pump or geyser, etc. Configure the ON/OFF times of day and run times, and days of the week, all via the free Tuya SmartLife app.
No need for complicated wiring and timer controls - Simply, 'Wire, Configure -> Done'.

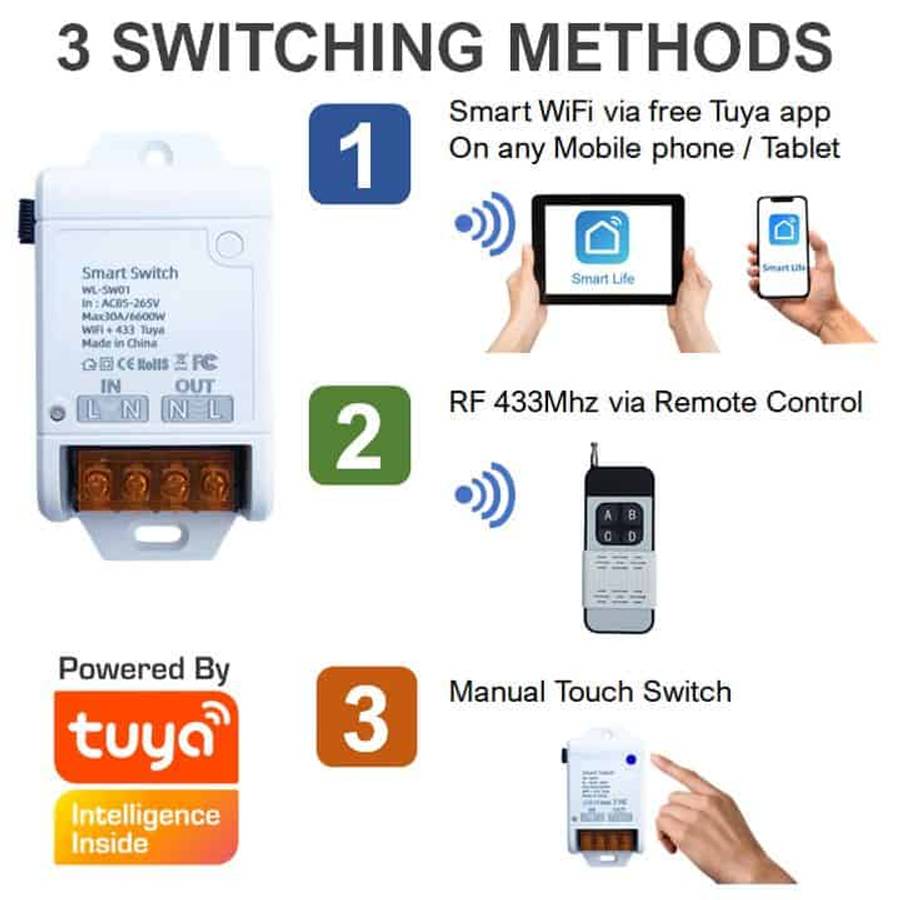

This switch is also capable of switching via a long-range 433 MHz remote control (purchased separately). If you require the same specification switch without the 433MHz remote control option, then [click here].
IMPORTANT NOTE: The Switch and Remote are sold separately due to the fact that 1 Remote can control up to 4 individual switches, so you have the option to purchase a maximum of 4 switches per single 4Ch remote. Switch and/or Remote must be purchased separately as 2 items. You need only purchase 1 remote for every 4 switches.
To Buy Remote controls [click here]
Home Automation made Smart, Simple, and Affordable via the Tuya, Smart Life App installed on your smartphone (Android or IOS), offering the fastest, most stable platform and widest range of Smart Products. Supports Alexa, Google Home, and IFTTT.
The Smart home switch 20A is a great way to make any appliance or device 'Smart'.
'HOW TO' YOUTUBE VIDEO [click here]
Download: user manual for Smart Switch [click here].
What devices can presently be Smart Automated with Tuya - To View our Range of Smart Products? [click here]
Product Features
- Small and Compact design - high current. Wire, Configure, and Play.
- Activation dates, days of the week, start time, and duration can all be pre-configured via the Smart Life application, giving you complete remote control and ON/Off overwrite.
- Supports Voice Commands and also AI units such as Amazon Alexa Echo and Google Home solution.
- All your Smart Devices connected via a Single stable Platform been the Smart Life app from Tuya.
- The entire Smart Life system performance relies on an 'adequate WIFI' (2.4GHz only) signal.
- A Long Range - 1km 433MHz remote control for this 30A switch is available in 4, 8, or 12 channels [click here]
Typical Uses (but not limited to)
- Smart Switching of any high current device or appliance that requires current up to 30A (6600W)
- Pool Pump Smart Controller
- Geyser Smart Switch Controller
HOW TO Pair the 433MHz remote
- Connect your input 230VAC and output to the 16A smart switch.
- Press the button on the remote (A, B, C, or D) you wish to pair fast 4 times.
- The switch will now be paired to the remote in 'latching mode'. One click = ON, another click =OFF.
- You can now also connect the switch to the Smart Life via your cell Phone as per the above video.
- Repeat using other buttons to pair additional switches as required.
- To remove all remote programming, fast push the relevant button 8 times.
Enclosures / Housing
- Need an IP66 Waterproof Enclosure or Housing for the switch? [click here]
Specifications
- Electrical: 85-265VAC
- Power Rating : 20A max, 4.4kW
- Product dimensions：96 x 58 x 35mm
- Material: White ABS (Fire-retardant)
- Wireless Frequency: 802.11 b/g/n 2.4GHz, WPA-PSK/WPA2-PSK
- Operating Temperature: -10ºC - 50ºC
- Free App: Tuya or Tuya Smart Home
- Remote Control Frequency: 433.92Mhz
What's in the Box?
1x Tuya Smart Switch 20A
1x Instruction Manual
