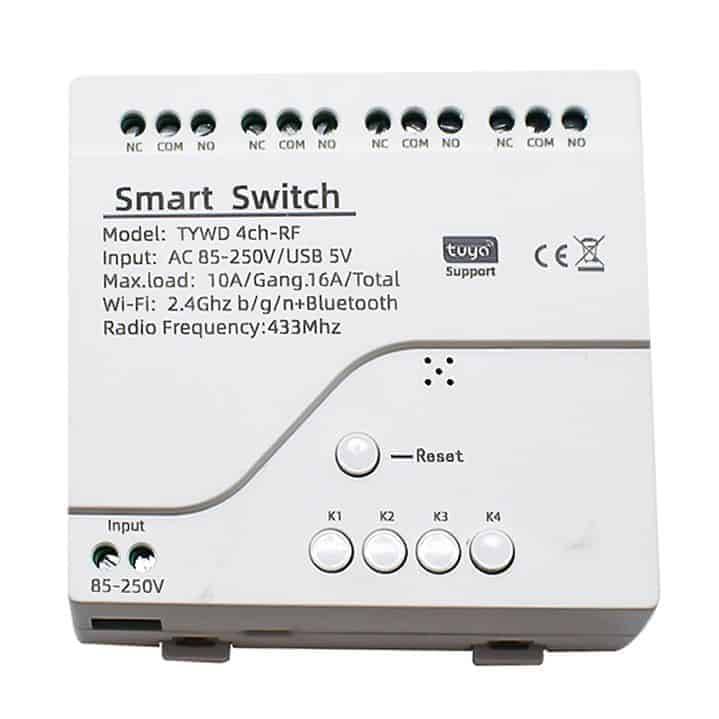

Smart 4Ch Relay Switch 10A + Shell | RF433Mhz + BT | DC or AC In | WiFi Tuya Smart Life

Smart WiFi, 4 Channel Self Locking, Inching Relay Switch 10A with Shell, Tuya Smart Home, BLE Bluetooth and RF 433Mhz remote control option. DC and AC Input power options.

NEW!! All relay boards now Include:

• Shell - protective cover (can be removed for alternate mounting)
• Smart WiFi via the free Tuya App.
• BLE - Bluetooth Option
• RF 433mHz (chip 1527) - 4Ch RF remote can be purchased separately [click here]
• 5VDC Input via Micro-USB connector on the board

New!! Input Voltage Options (you must select one or the other)

1. DC Input Voltage: 7-32VDC
2. AC Input Voltage: 85-250VAC

If you can image it, you can probably 'Smart Switch' it with this versatile, cost effective 1 Channel Smart Relay board. Enables remote control of any devices or home appliances via WiFi through the Tuya application SmartLife application installed on your phone or tablet (Android or IOS). Simply 'Wire, Configure and Play'.Home Automation has never been this Smart, Simple and Affordable. Tuya offers the fastest switching, most stable platform and widest range of ever-growing Smart Products. Supports Alexa, Google Home and IFTTT.With so many smart home platforms available, WHY TUYA [click here]. Great way to make any appliance or device 'Smart'.Product Features (refer to additional images for connection & wiring diagrams)

• Working Modes: selectable via the mode button to switch
  • self-locking mode: turn devices ON or OFF instantly.
  • inching mode: toggle devices ON then OFF by tapping the PWR button on your phone
• Manual Switching option via Ch Buttons on the PCB
• Switching voltage range: up to AC250V/10A or DC30V/10A via relay dry contact switch.
• Wide PCB Input voltage range Options: Micro USB Port 5VDC all devices
  • 1. DC 7-32V via the board mounted 2 pin Terminal Block
  • 2. AC 85-250V via the board mounted 2 pin Terminal Block
• WiFi control via free Tuya app.
• LED indication
• Small and Compact design. Ease of Installation. 0.7sec On or Off (simulates an existing remote control) Activation dates, days of the week, start time and duration can all be pre-configured via the Smartlife application giving you complete remote control and ON/Off overwrite.
• Supports Voice Commands and AI (Artificial Intelligence) platforms such as Amazon Alexa Echo and Google Home solution.
• All your Smart Devices connected via a Single Stable Platform been the Smart Life app from Tuya. We ONLY sell TUYA so all products use the SmartLife app. How do I get started [click here]

Typical Uses

• Unlimited Applications the 10A relay (dry contact) can be wired to either NC (normal closed) or NO (normal open) to switch any voltage up to AC250V/10A or DC30V/10A.

Download the User Manual [click here]Product Variants Available:

• 1Ch relay board: DC or AC input [click here]
• 2Ch relay board: DC or AC input [click here]
• 4Ch relay board: DC or AC input [click here]

Optional Items (recommended):

• Need a power supply & short cable (USB to 3x micro USB) [click here]
• Need to mount the PC Board, M3 standoff / hex pillar [click here]
• Need a suitable enclosure or housing? [click here]

Specifications

Input Voltage Options	Micro USB Port 5VDC on all devices | Option 1. DC Input 7-32V or 2. AC Input 85-250V via the board mounted 2 pin Terminal Block
Relay / Opening time	0.7 seconds / lifespan +1M switches / insulation resistance: 100M
Relay Load	AC250V/10A or DC30V/10A
Switch mode	Switch/Mobile phone
WiFi StandardsRF Standards	IEEE 802.11 b/n/g 2.4G Hz / RF 433Mhz single code 1527 , for use with 4 CH remote control / BLE Bluetooth Low Energy
Support Voice Control	Works with Home Assistant / Amazon Alexa/ Google Home
Operation Temp.	—10C to +60C
Humidity	5%--95% non-condensing
Dimension	PCBA: 6.7*4.1*1.7cm
Weight	0.05kg

What's in the Box?

• 1x Smart Relay Board
• 1 x Shell Protective Cover
• 1x Instruction Manual

• FAQ's

  • Why should I choose Tuya above all the other Smart Home Automation Platforms? [click here]
  • How do I get started? [click here]
  • What devices can presently be Smart Automated? [click here]

Home Automation made Smart, Simple and Affordable via the Tuya, SmartLife App (Android or IOS), offering the fastest, most stable platform and widest range of Smart Products. Supports Alexa Echo Dot, Google Home and IFTTT and more...
