Smart 4 Gang Relay Switch | AC or DC, 10A, and 433MHz | Tuya Smart Life

Smart 4 Gang Relay Switch | AC or DC, 10A, and 433MHz | Tuya Smart Life

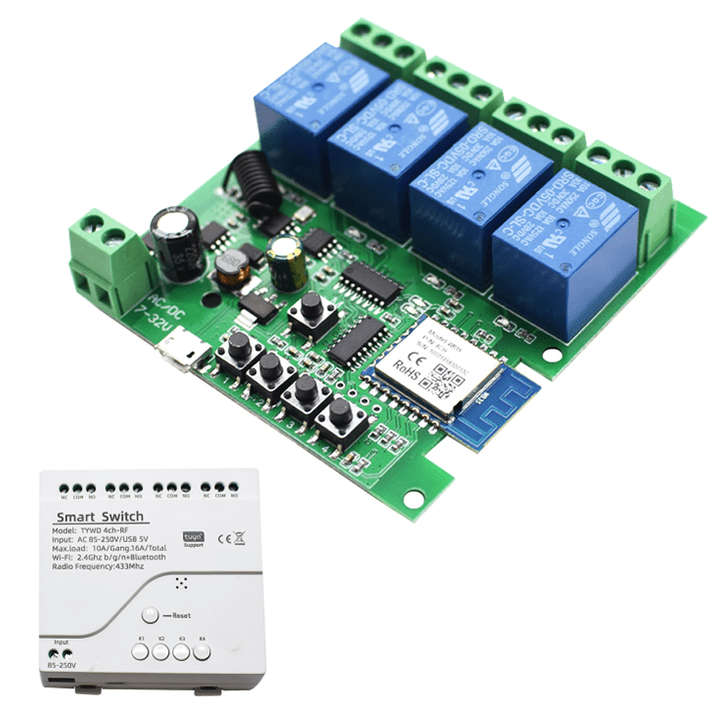

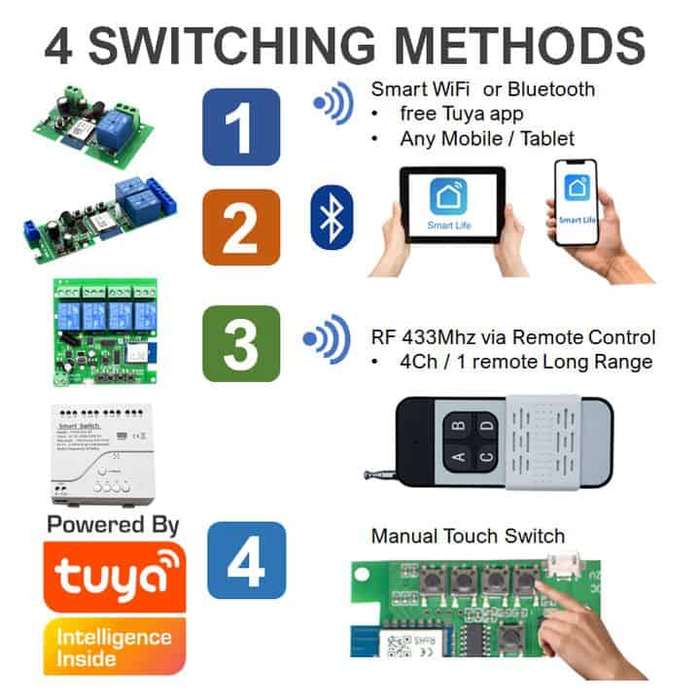

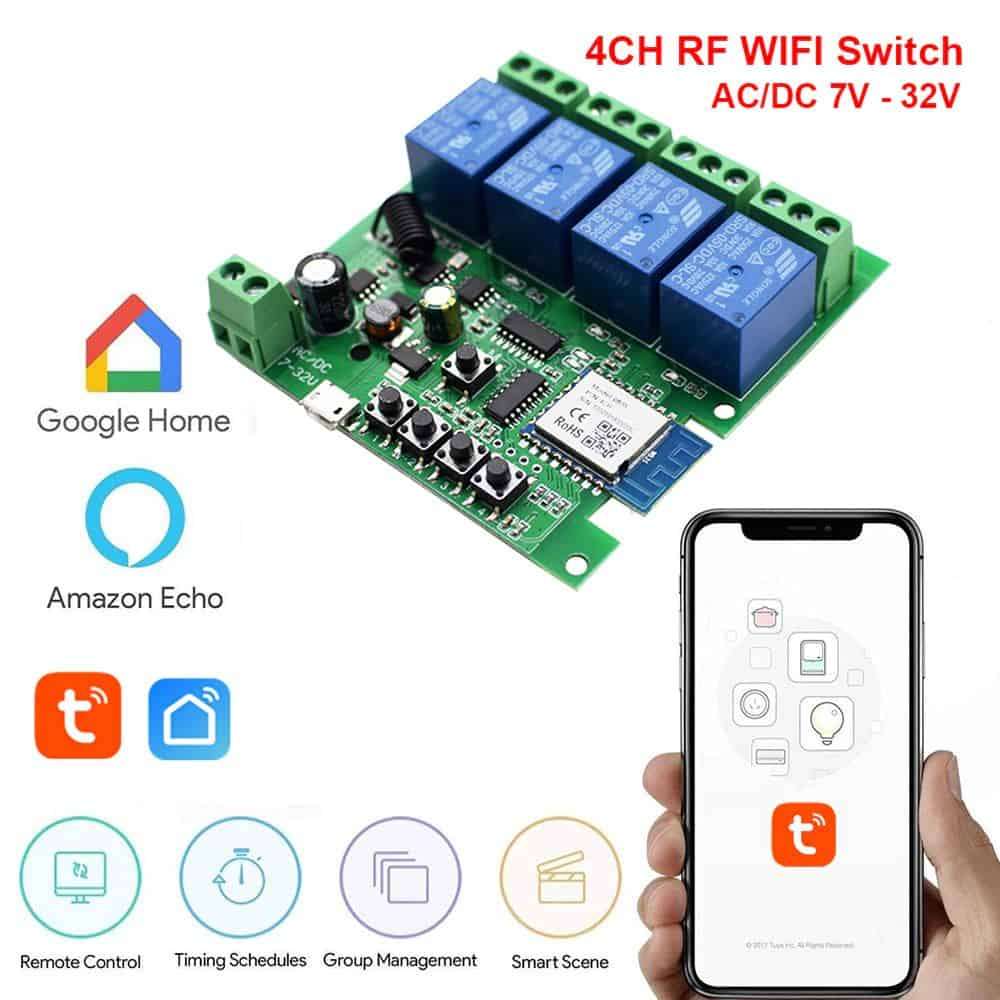

The Smart 4 Gang Relay Switch is a specialized low-voltage smart relay module designed for DIY automation. It combines WiFi, Bluetooth, and 433MHz RF control into a single unit, making it a "hybrid" switch that works with both smartphone apps and physical remote controls.

Product features

• Dual power input: It can be powered via the AC or DC terminals or a 5V micro-USB port.
• Scheduling and timers: set automated routines to run high-energy devices during off-peak hours to save on electricity costs.
• Voice control: integration with assistants like Amazon Alexa or Google Assistant for hands-free operation.

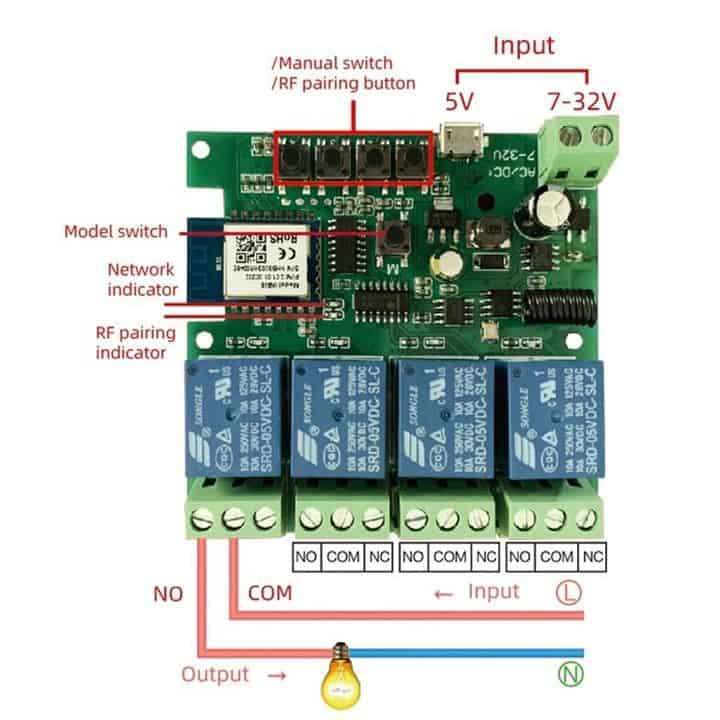

• Dry contact relay: the switching mechanism is isolated from the device's internal power supply. This allows you to switch different voltages or simply "close a loop" without introducing any new current into the target circuit.

Specifications

• Input voltage:
  • AC: 85~265VAC @ 50/60Hz (for the AC version only)
  • DC: 7~32VDC (for the DC version only)
  • Micro-USB: 5VDC (for both AC and DC versions)
• Load capacity: 10A, 2.2kW
• Wireless protocol:
  • WiFi (2.4GHz)
  • Bluetooth
  • 433MHz RF
• Operating temperature: -20°C~+70°C
• Dimension: 69 x 41 x 20 (L x W x H in mm)

Available in AC or DC

To buy the 433MHz remotes, please see the links below.

• 433MHz remote | Short and Long Range [click here]
• 4-Channel 433MHz Remote | Long Range [click here]
• 8-Channel 433MHz Remote | Long Range [click here]
• 12-Channel 433MHz Remote | Long Range [click here]

Typical applications (not limited to)

• Gate and garage door openers
• Computer remote boot
• Intercom or door strike

What is in the box?

• 1 x Smart 4 Gang Relay Switch
• 1 x Instruction manual
