Smart 5-inch Touch Screen Control Panel | WiFi, Zigbee & BLE connectivity | Tuya Smart Home
We present to you an innovative smart home control solution: Tuya Smart. If you own some smart home devices, you can use this control panel to centralize them all in one place. You simply need to install it in an electrical box mounted on the wall (e.g. instead of a switch) and pair it with the Tuya Smart app on your mobile phone. After that, all you have to do is set all other devices to pairing mode, and the panel will add them all to its management. It works as a Zigbee gateway and Bluetooth to WiFi to enable you to connect all your compatible devices to Tuya Smart Life. Now, whenever you come home, you can use the panel to control everything from the Tuya Smart smart home without the need to use an application on your mobile phone.
Make your home smart.
A big plus is also the function of so-called scenes, where you can set the interactions between the individual devices directly on this panel (e.g. open the curtains when the alarm system is unlocked, turn on the TV when the curtains are closed, etc.).
Widely compatible
With lights, curtains, air conditioners and all other smart home devices for central control.
Set up Smart Home scenes in the APP and activate scene mode with just one tap on the screen. No more wasting time opening the APP and finding a specific device to activate. Behind a high-resolution display (vivid and high fidelity colors), it integrates an advanced " all in one " management system. An extremely powerful central control device for all Tuya smart devices and the smart scenes are automated in Smart Life APP, which is explained as ZigBee gateway function and APP remote control.

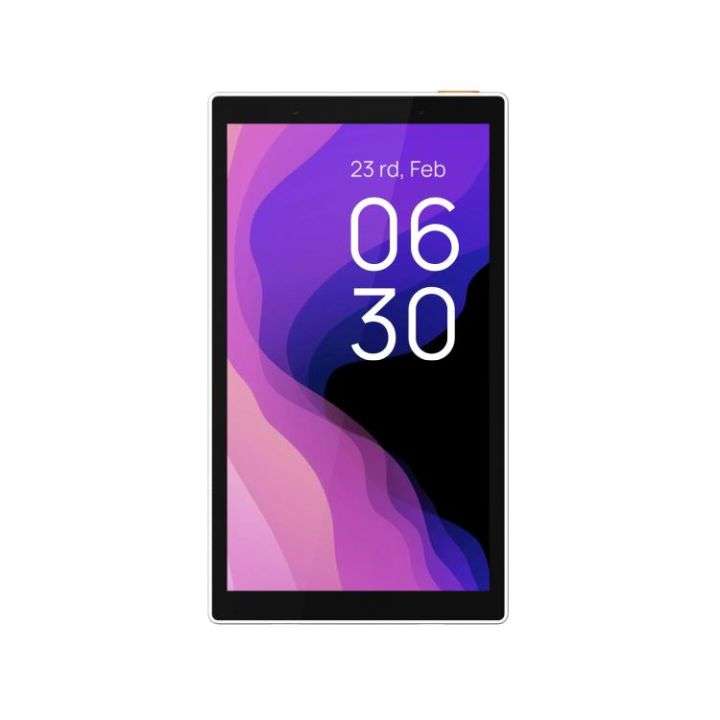

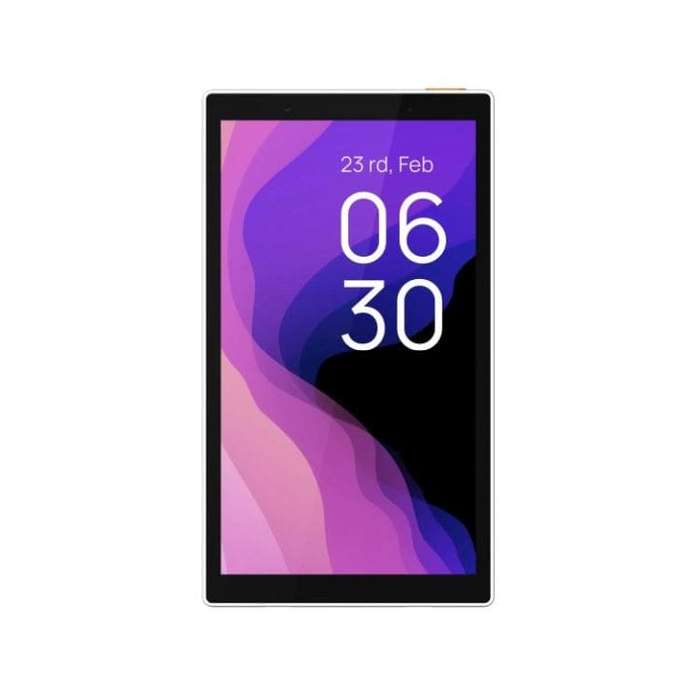

5-inch HD LCD, IPS, multi-touch screen design, together with the automatic light sensor, which adjusts perfectly suited to the modern smart lifestyle, the in-wall design is compatible with standard European wallboxes for simple installation in seconds.
Android system
T6E is an Android-based " multi-functional control panel " compatible with the Tuya ecosystem.
It's essentially a square-shaped 5-inch Android tablet that plugs into a junction box.
EU standard wall switch with an added Zigbee gateway.
Installation and Design
The panel is very elegant with the matte white plastic coating and a pretty profile slim considering that behind it is a touchscreen and a PCB. The wall-mounted design is compatible with standard European wall boxes for simple installation in seconds. The base has connectors for the live and neutral wire to power it. There are no outlets to physically check other devices; therefore cannot replace and existing switch. It features a 1W speaker, a microphone, and a light and proximity sensor.
Zigbee and Bluetooth protocol
In addition to being a complete smart home control panel, this cool gadget acts as a Zigbee hub. You can add Tuya products directly to it and then control them via Tuya's Smart Life App. You can add over 100 secondary devices. This means that this touch panel can serve as a replacement for any other Tuya gateway you may have used or were considering buying for your smart home. In addition, any Bluetooth-compatible device can be connected directly to the panel to send data to be displayed on the screen, such as a temperature and humidity sensor.
View time, date and local weather
Optional language and region in device settings, plus a working clock with time and date display, even you can check the weather in real time for a better life experience.
Functions:
- Device/scene overview: the panel will gather all the smart devices & smart scenes from your Tuya smart app, & you can then control all your devices from the smart touch screen.
- Gateway function: enter the corresponding entrance in the Smart Control page of your Tuya Smart Life App, & add Zigbee sub-devices.
- Setting: slide down at the top of the device screen to call out the setting pages.
Product Features
- Small and Compact design - high current. Wire, Configure and Play.
- Activation dates, days of the week, start time and duration can all be pre-configured via the Smartlife application giving you complete remote control and on/off overwrite.
- Supports Voice Commands and also AI units such as Amazon Alexa Echo and Google Home solution.
- All your Smart Devices are connected via a Single stable Platform been the Smart Life app from Tuya.
- The entire SmartLife system performance relies on an 'adequate WIFI' (2.4GHz only) signal. We recommend the use of our range of WiFi Extender products [click here].
Specifications
- Input voltage: 100 ~ 240VAC, 50/60Hz, the max. current is 5A.
- Wireless protocol: WiFi, Zigbee and BLE.
- Max. load settings:
- Tungsten/incandescent: 200W
- Dimmable CFL/LED: 200W
- Ballast/fluorescent: 200VA
- Working temperature: 0°C ~ 40°C
- Working humidity: 5% ~ 90% RH non-condensing
- Product size:
- Excluding base: 72 x 127.3 x 10.5 in mm
- Including base: 72 x 127.3 x 36.5 in mm
What's in the Box?
- 1 x Smart 5-inch Touch Screen Control Panel
- 1 x instruction manual
FAQ's
- Why should I choose Tuya above all the other Smart Home Automation Platforms? [click here]
- How do I get started? [click here]
- What devices can presently be Smart Automated? [click here]
Home automation is made smart, simple & affordable via the Tuya Smart Life App (Android or IOS), offering the fastest, most stable platform and widest range of smart products. Supports Alexa Echo Dot, Google Home, IFTTT & more
