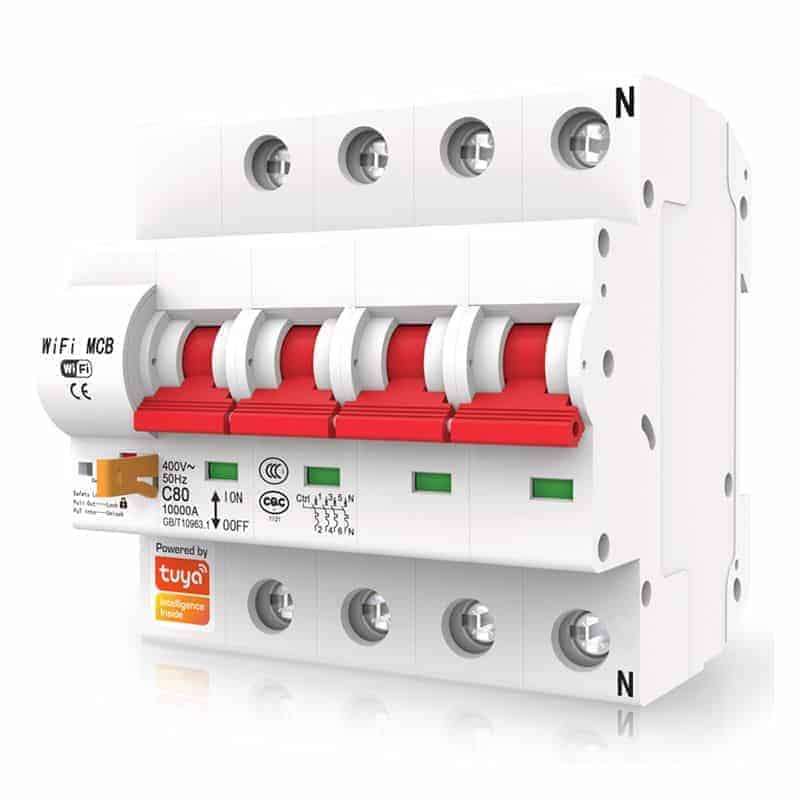

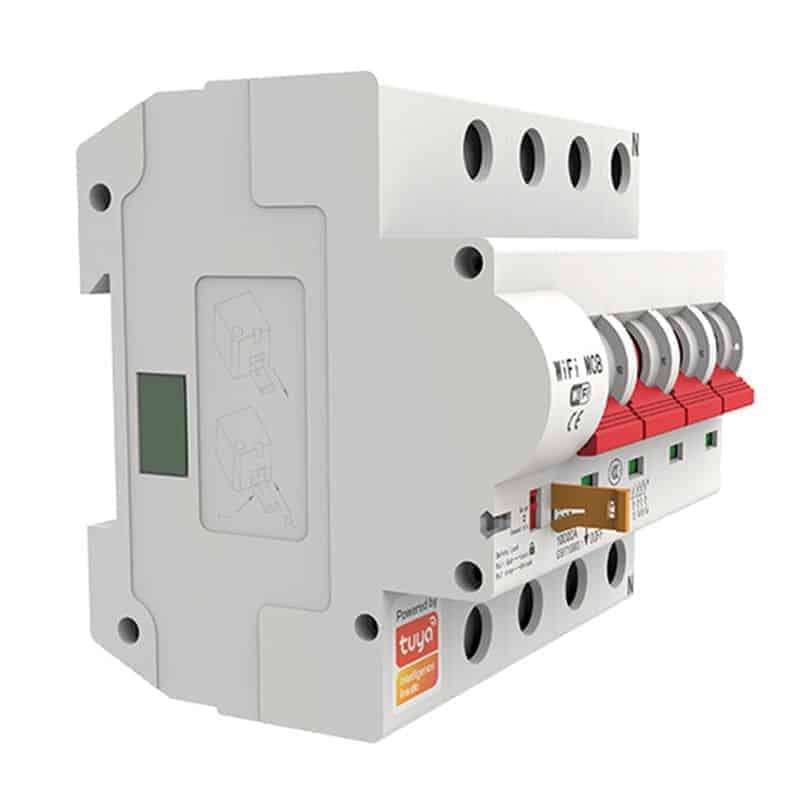

Smart MCB 4P 100A Circuit Breaker, Isolator, 3-Phase 380VAC | WiFi Tuya Smart Life
Smart Switch Circuit Breaker, 100A WiFi Wireless Smart 4 Pole Isolator 3-Phase 380VAC. MCB can be used to make any home, office or factory 230V Smart. Control any high-current device remotely via your phone from any location. Allows for both 'smart switching' and manual operation and includes a safety switch.
Specifically for Smart Control of 3 phase 380VAC Factories or Warehouses main feed etc.

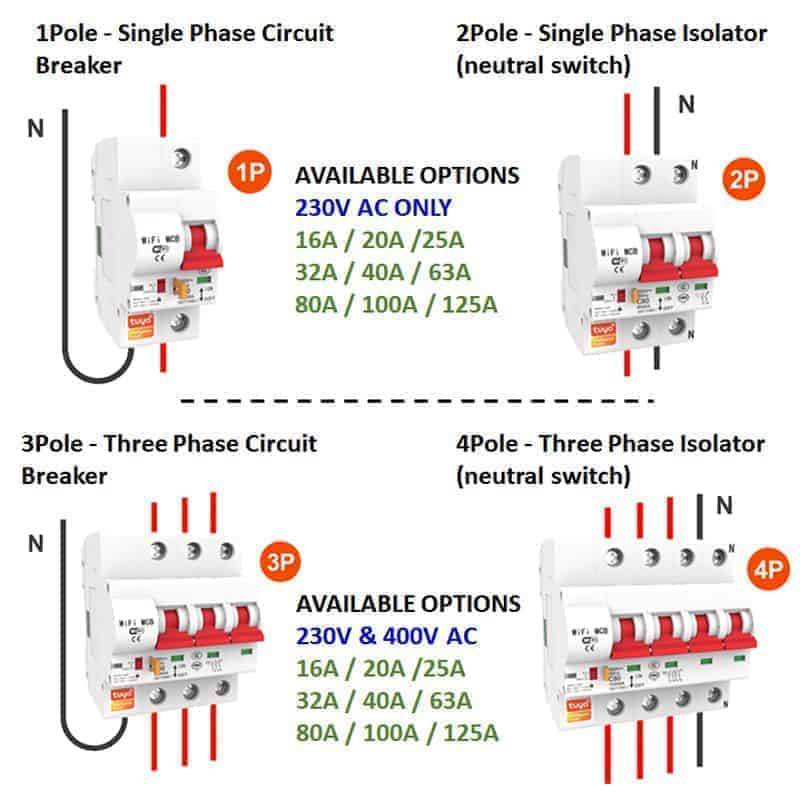

Available in the following ratings (380VAC) 16A, 20A, 25A, 32A, 40A, 63A, 80A, 100A (this product) & 125A. If we don't have your requirement in stock please contact us.
Simply, '*Wire, Configure and Play'.
Note:

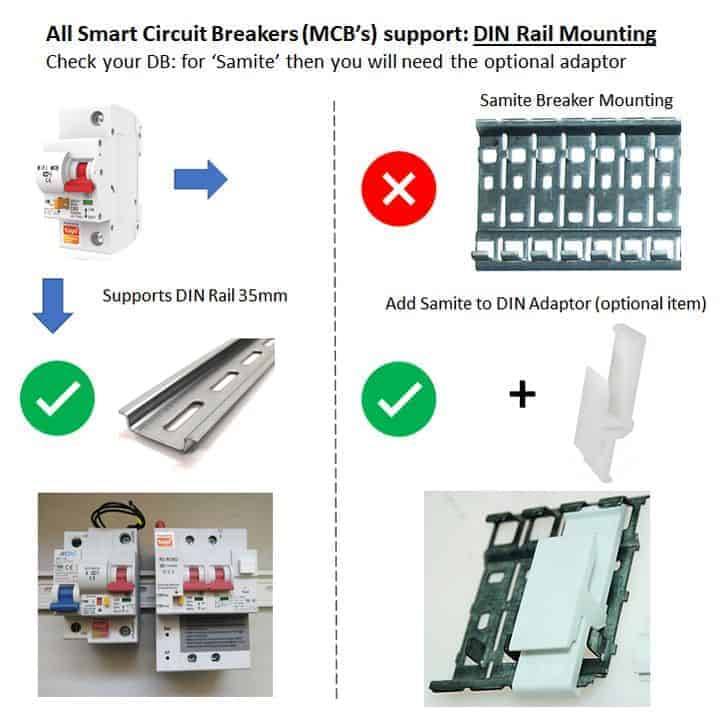

- This MCB supports DIN rail Mounting. For Samite Breaker connections you will need an adaptor [click here].
- This MCB does NOT support Power Consumption / Energy Monitoring. ( if this feature is required see our range of 'VAW breakers' or smart consumption switches [click here])
- Can be configured via the App's 'automation feature' to disconnect when certain smart sensors or detectors are activated such as Smoke, CO2, flood or intrusion etc.
- *A qualified Electrician is required.
Home Automation is made Smart, Simple and Affordable via the Tuya, SmartLife App (Android or IOS), offering the fastest, most stable platform and widest range of Smart Products. Supports Alexa, Google Home and IFTTT.
Great way to make any appliance or device, 'Smart'.
Product Features
- Activation dates, days of the week, start time and duration can all be pre-configured via the Smartlife application giving you complete remote control and ON/Off overwrite.
- Supports Voice Commands and also AI units such as Amazon Alexa Echo and Google Home solution.
- All your Smart Devices are connected via a Single stable Platform the Smart Life app from Tuya.
- The entire SmartLife system performance relies on an 'adequate WIFI' (2.4GHz only) signal.
Typical Uses (but not limited to)
- Smart Switching of any home or a specific section of a factory/office
- Large pumps and or any machinery
- Can be wired to any existing DB or Distribution Board (occupies 3 slots)
Specifications
|
| Name | 4P Tuya Smart MCB Switch WIFI Circuit Breaker |
| Model | HT-MCB-2P |
| APP | TuyaSmart/SmartLife |
| Input Voltage | AC 400V (380VAC nominal) |
| Output Voltage | AC 400V (380VAC nominal) |
| Number of poles | 4 (four) |
| Rated current | 100A |
| Rated short-circuit breaking capacity | lcn=6kA lcs=6kA |
| Applicable places | 4P usually factory or industrial use |
| Switch mode | Switch/Mobile phone |
| WiFi Standards | IEEE 802.11 b/n/g 2.4G Hz |
| Support Voice Control | Work with Amazon Alexa/Google Assistance/IFTTT |
| Operation Temp. | 25°C to +65°C |
| Humidity | 5%--95% non-condensing |
| Dimension | Box:10.5*12*11.6cm |
| Weight | 0.36kg |
What's in the Box?
- 1x Smart MCB 4P 100A Circuit Breaker
- 1x Instruction Manual
FAQ's
- Why should I choose Tuya above all the other Smart Home Automation Platforms? [click here]
- How do I get started? [click here]
- What devices can presently be Smart Automated? [click here]
Home Automation is made Smart, Simple and Affordable via the Tuya, SmartLife App (Android or IOS), offering the fastest, most stable platform and widest range of Smart Products. Supports Alexa Echo Dot, Google Home, IFTTT and more...
