A Smart DC 10A Basic Switch is a versatile low-voltage controller that integrates non-smart DC devices or circuits into a smart home ecosystem. Unlike standard smart switches that output the same voltage they are powered by, a dry contact version acts as a secondary, isolated relay.

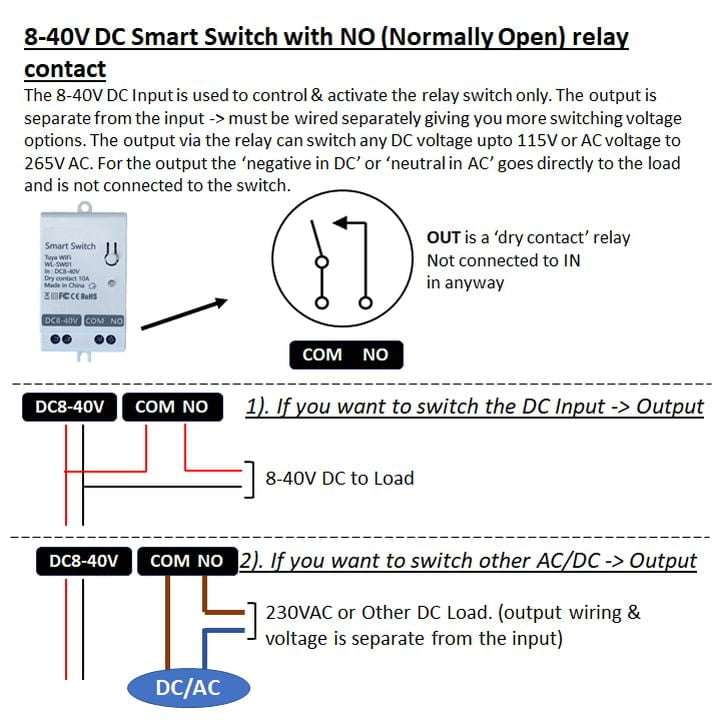

How does the dry contact work?

Think of the device as having two distinct "sides":

• The power side: connected to a constant power source.
• The contact side: two terminals that are labeled as COM and NO (normally open) act exactly like a manual wall switch.

Product features

• Dry contact relay: the switching mechanism is isolated from the device's internal power supply. This allows you to switch different voltages or simply "close a loop" without introducing any new current into the target circuit.
• Scheduling and timers: set automated routines to run high-energy devices during off-peak hours to save on electricity costs.
• Voice control: integration with assistants like Amazon Alexa or Google Assistant for hands-free operation.

Specifications

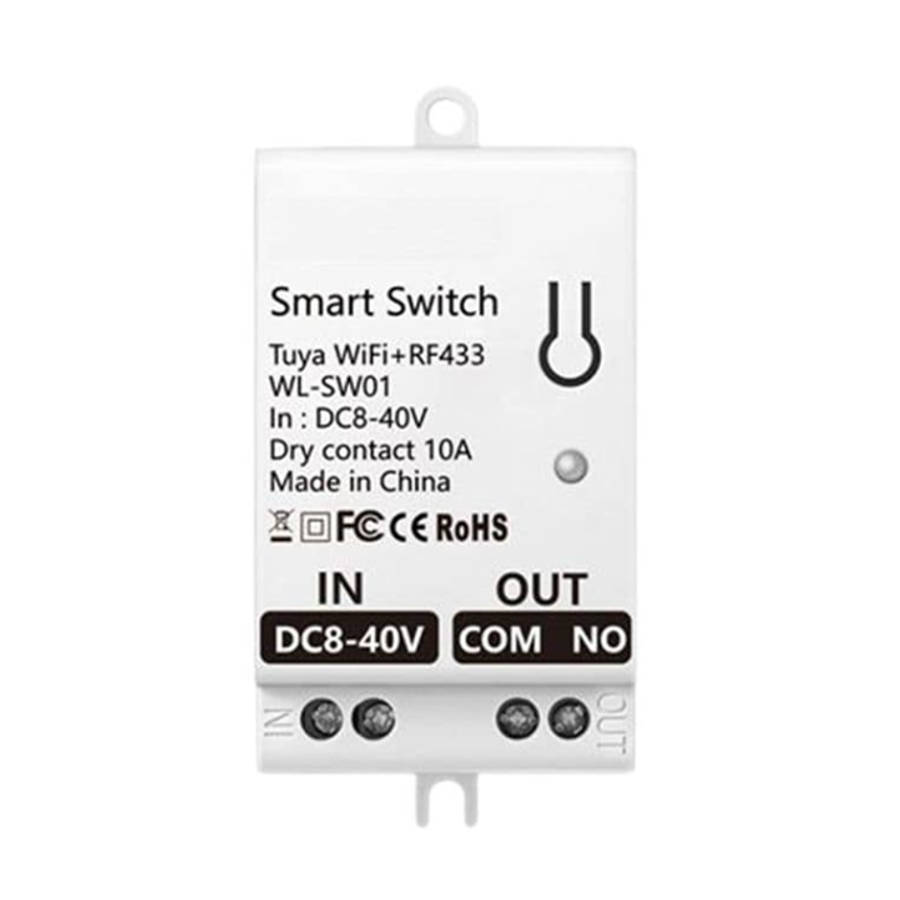

• Model: WL-SW01
• Input voltage: 8~40VDC
• Output current: <10A
• Wireless protocol:
  • WiFi (2.4GHz)
  • Bluetooth
  • 433MHz RF

Please see the link to the 433MHz remotes we have available.

• 433MHz remote | Short and Long Range [click here]
• 4-Channel 433MHz Remote | Long Range [click here]
• 8-Channel 433MHz Remote | Long Range [click here]
• 12-Channel 433MHz Remote | Long Range [click here]

Pairing the remote to your smart device

There are normally two ways of pairing the remote to your smart device.

• Method 1: pair the remote via the app.
  • Step 1: download the Tuya smart app and pair your smart device to your smartphone.
  • Step 2: go into the smart device in the app. Tap on settings (that is on the bottom right-hand corner).
  • Step 3: you should see a category called RF remote set-up. Tap on it.
  • Step 4: tap on add remote, it will count down from 10 seconds. During the countdown, press any button on your 433MHz remote to connect to the smart device.
  • Step 5: test the remote to see if the smart device switches on or off.
• Method 2: pair the remote physically.
  • Step 1: press and hold the 433MHz remote button for ±3 seconds.
  • Step 2: while hold the remote button, press the smart device's on or off button. It should have paired successfully.
  • Step 3: test the remote to see if the smart device switches on or off.

Typical applications (not limited to)

• Gate and garage door openers: most gate motors use a 'pulse signal' to trigger movement. A dry contact can safely bridge the motor's trigger terminals without sending high-voltage AC into the control board.
• Boiler and HVAC control: many heating systems use low-voltage "call-for-heat" loops.
• Intercom integration: it can be used to "press" the electronic release button on an existing intercom system remotely.
• Inching/momentary mode: support "inching," where the switch closes for 0.5 to 1 second and then automatically opens, mimicking a physical button press.

What is in the box?

• 1 x Smart DC Switch Basic 10A
• 1 x Mini screw driver
• 1 x Instruction manual
