This multifunctional tool features the function of multimeter, temperature meter, electrical test pen and flashlight. With LCD backlight screen for easy reading and compact size for easy carry, it can be widely used in electrical testing, temperature measuring, automotive repairing and more household/ industrial electrical problems.
Features:
[Multifunction Multimeter] 3 in 1 function of digital multimeter, temperature meter and electrical test pen, can be widely used in electrical testing, temperature measuring, automotive repairing and more household/ industrial electrical problems. With overload protection for secure use.
[Auto/ Manual Ranging] High accuracy, wide range, True RMS, 6000 counts, auto recognition or manual selection. It can test AC/ DC voltage, AC/ DC current, resistance, capacitance, frequency, duty cycle, diode, continuity, live wire, temperature, square wave.
[Temperature Measurement] Comes with a K-type thermocouple, this digital multimeter features -20~1000￢ﾄﾃ (-4~1832￢ﾄﾉ) wide measuring range for industrial temperature measuring, which has quick response and brings accurate data.
[NCV Induction] Bring the NCV part close to the measured object, when a nearby AC voltage is detected, there will be visual and sound alarm. Non-contact design makes it very safer and more convenient.
[LCD Screen & Flashlight] Large digital LCD screen with backlight greatly enhances reading experience, clear at a glance. Flashlight to illuminate the measured object without fear of dark environments.
[Battery Operated & Compact Size] Powered by a 9V battery (not included), auto shutdown after about 15min idle time to save energy. Ergonomic design and compact size, portable and lightweight.
[Rubber Sheath Protection & Foldable Support] Covered by rubber sheath, which is shockproof, anti-scratch, anti-fall, antifouling and anti-static, providing better protection for the multimeter. Foldable support frame on the back extends its usage environments.
Note: Size and color may be slightly different due to manual measurement and different light conditions. Thanks for understanding.
Specifications:
Color: Black & Orange
Material: ABS
Screen: LCD Backlight Display
True RMS: Yes
NCV Induction: Yes
Max. Counts: 6000
Max. Voltage: 1000V DC; 600V AC
Max. Current: 10A DC or AC
Max. Resistance: 60Mￎﾩ
Max. Capacitance: 6000ￎﾼF
Frequency: 20MHz
Temperature Measuring Range: -20~1000￢ﾄﾃ/ -4~1832￢ﾄﾉ
Square Wave: Voltage 3.3V, Frequency 50Hz-5KHz, Input Protection 500Vrms
Diode: Yes
Continuity: Yes
Live Wire: Yes
Auto Shutdown: about 15min
Power Supply: 9V 6F22 Battery (NOT included)
Operating Environment: 0~40￢ﾄﾃ, ﾼﾜ80% RH
Item Size: 160 * 85 * 50mm / 6.30 * 3.35 * 1.97in
Item Weight (without battery): 265g / 9.33oz
Package Size: 17.5 * 13 * 6cm / 6.89 * 5.11 * 2.36in
Package Weight: 462g / 1.02lbs

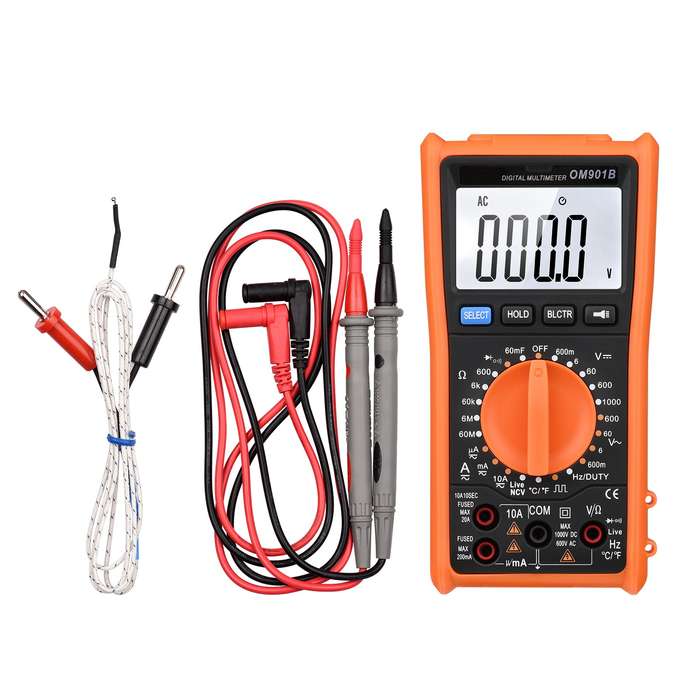

Package List:
1 * Smart Digital Multimeter
2 * Test Lead
1 * K-type Thermocouple
