Smart Energy Monitor 2x Clamp Meter | 50A CT single or three-phase | WiFi Tuya Smart Life

Smart 2x Clamp Meter, WiFi Tuya Smart Life

This 2-channel CT clamp energy monitor is designed to measure and monitor electrical energy consumption in up to 2 different circuits within a building or facility. It utilizes current transformer (CT) clamps to non-invasively measure the current flowing through each circuit without interrupting the electrical supply. By providing detailed insights into energy consumption, these monitors help identify areas for energy efficiency improvements, reduce operational costs, and contribute to sustainable practices.

The instruction manual for the Smart 2x Clamp Meter [click here].

Features

• Supports with other Tuya devices.
• Is compatible with:
  • Single-phase
  • Split-phase
  • Three-phase
• You can remotely monitor your home energy consumption and up to 2 individual circuits with 50A sub-CT, like solar, lights, etc.
• This device is bi-directional (meaning it can measure the system's current flow in both directions).
• Historical data on energy consumption and energy protection can be collected.
• The Smart Energy Monitor 2x Clamp Meter can measure:
  • Real-time voltage
  • Current
  • Power factor
  • Active power
  • Frequency

Specifications

• WiFi: 802.11 b/n/g @ 2.4GHz
• RF characteristics: operating frequency is 2.4GHz; external magnetic antenna
• Operating voltage: 90 ~ 380VAC @ 50/60Hz
• Supported systems:
  • Single-phase 240VAC line-neutral
  • Split-phase 120/240VAC (not used in South Africa)
  • Three-phase up to 480Y/277VAC

Note: There are no delta/wye/Y/star connections.

• Calibrating metering accuracy: ±2%
• Reporting cycle: every 15 seconds
• Operating temperature: -20°C ~ +55°C
• Operating humidity: 90% non-condensing
• Dimensions: 111.3 x 81.2 x 41.4 ( L x W x H in mm)

Typical Uses (but not limited to)

• Commercial Buildings
• Industrial Facilities
• Data Centers
• Residential Buildings

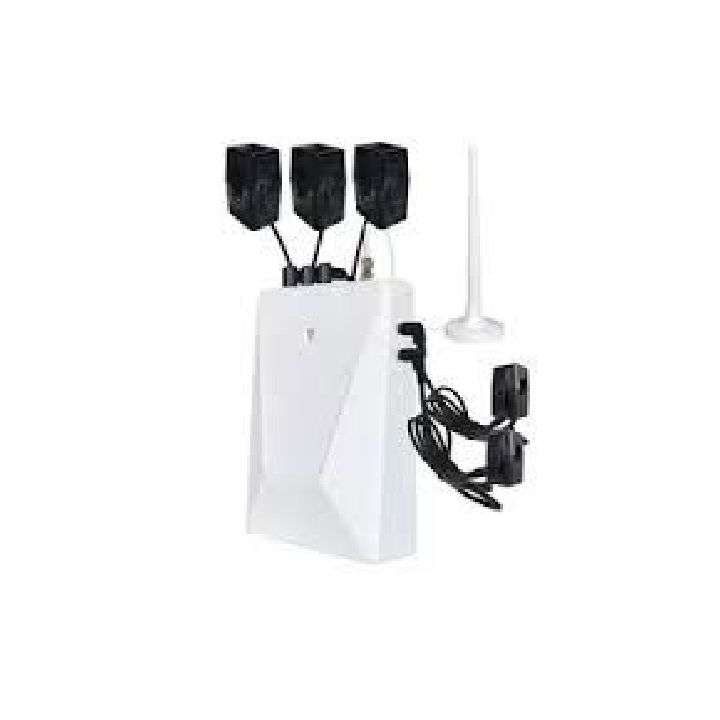

What is in the box?

• 1 x Smart Energy monitoring unit
• 1 x External antenna
• 1 x Power cable
• 1 x Mounting bracket
• 3 x Main CT plugs
• 2 x 50A sub-CT plugs
• 1 x Instruction manual
