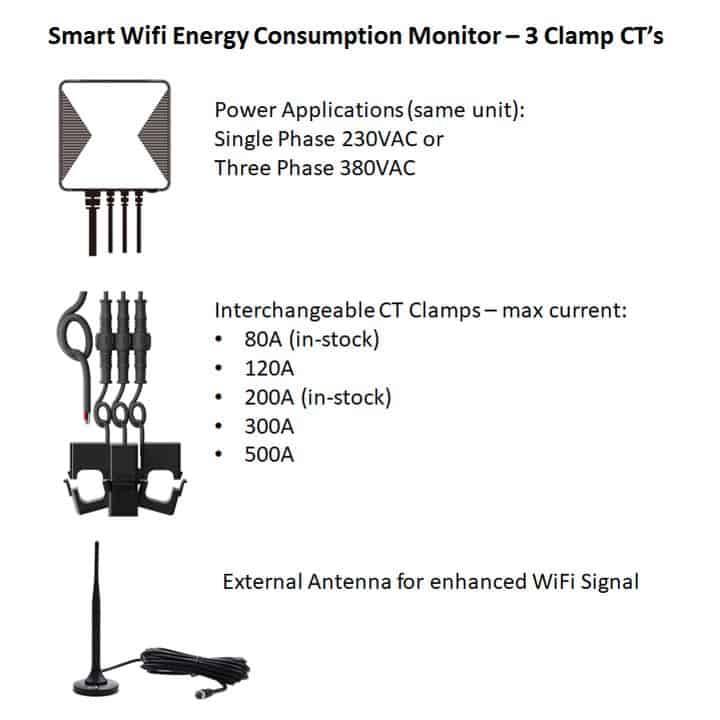

Smart WiFi Intelligent Current can be used in any application up to 200A to accurately measure the power consumption. The unit makes use of 3x Clamp Meters or CT's (current transducers) and are offered in 80A (also in-stock), 120A, 200A (this model) and 300A versions. The benefit of these units is that they merely 'clamp onto the power cable' and are therefore non-intrusive and simple to install. The unit can for example be used to monitor your total power consumption and for example your geyser and pool pump etc.
Can be used to make any home, office or factory 'Smart' while monitoring the amount energy used. By adding a Smart Switch you can also Switch (ON/OFF) any device based on a preset current limit from this device. All this remotely via your phone from any location (free Tuya app).
Simply, 'Wire, Configure and Play'.
Note:
- Does not require any wiring, simple and fast to install. Ensure to SITCH OFF all power before fitting the clamps.

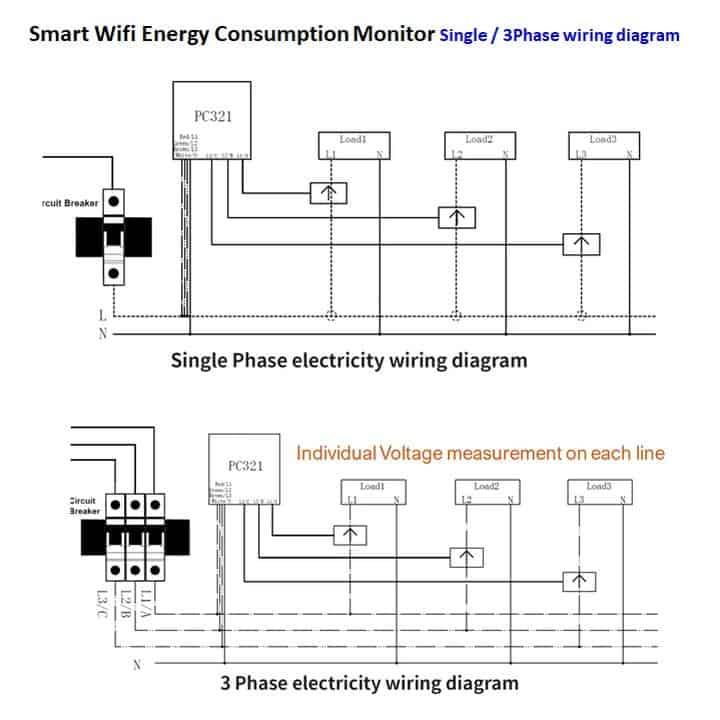

- The unit can be used for both single phase or 3phase (380VAC) factory, large office etc applications (230VAC) home small office etc.) - for these our 80A version is recommended [click here].
- The CT's are directional and must be placed with the arrow pointing towards the load to measure 'Forward Power'.
- Note Reverse Power: is displayed a minus in front of power e.g -1550W (opposite direction of the arrow on the clamp). Forward power (direction of the arrow on the clamp) is displayed without the minus in front. Current (amperes) is displayed as a positive value in both instances. This feature is suitable for solar installations and where you are feeding power back into the grid.

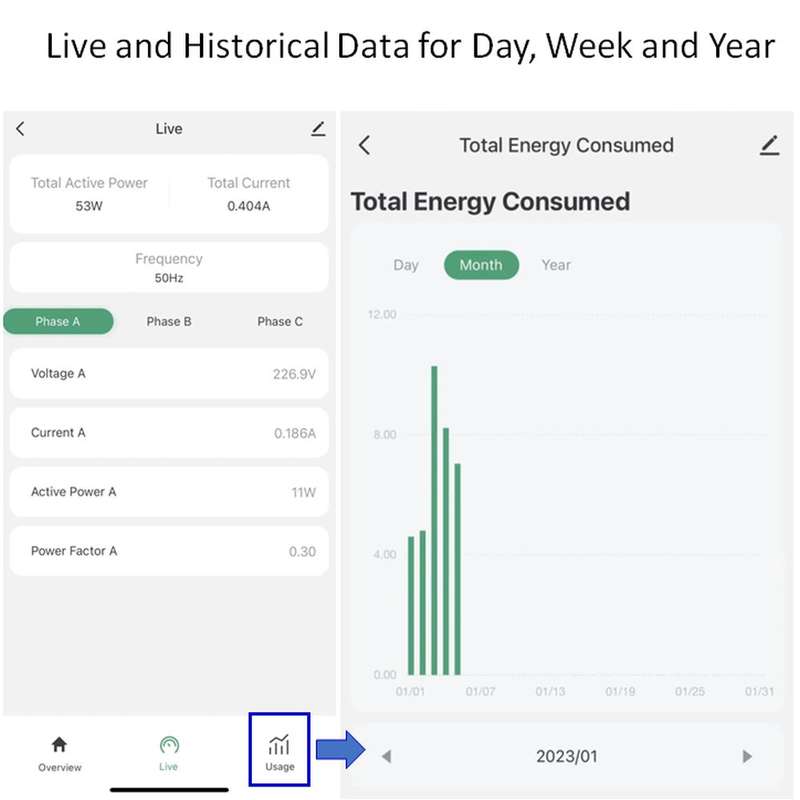

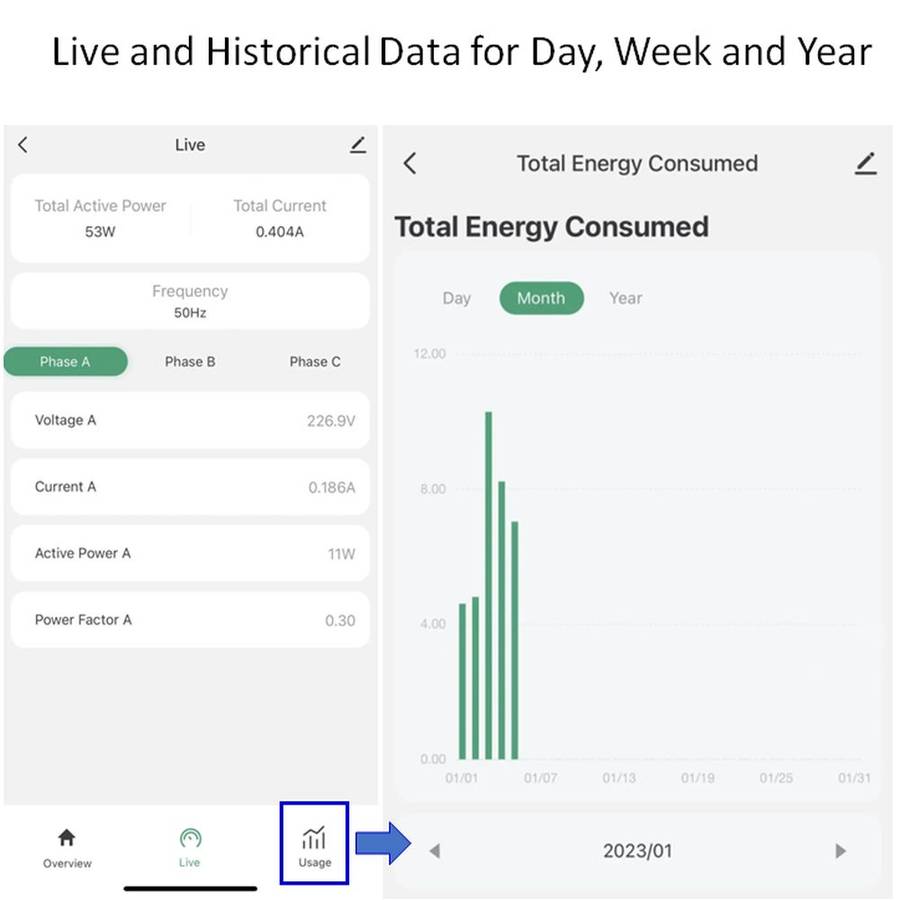

Home Automation made Smart, Simple and Affordable via the Tuya, SmartLife App (Android or IOS), offering the fastest, most stable platform and widest range of Smart Products. Supports Alexa, Google Home and IFTTT.
Great way to make any appliance or device, 'Smart'.
Download the User Manual [click here]
Specifications
Product Name | Single/3-phase Power Clamp |
Material | Plastic |
Function | Measures real-time Voltage, Current, PowerFactor, ActivePower and total
energy consumption |
Wi-Fi | 802.11 B/G/N20/N40 |
RF Characteristics | Operating frequency: 2.4GHz
Internal Antenna
Output Power: Up to +20dBm |
Operating Voltage | 100~240 Vac 50/60 Hz |
Calibrated Metering Accuracy | 100W Within ±2W
>100W Within ±2% |
Reporting Cycle | Every 2 seconds |
CT Provided | CT 200A (default)
CT 80A/120A/300A (optional) |
Clamp diameter | 80A: 10mm
120A: 16mm
200A: 20mm (this device)
300A: 24mm |
Operating environment | Temperature: -20 ~+55
Humidity: 90% non-condensing |
Dimension | 86(L) x 86(W) x 37(H) mm |
Typical Uses (but not limited too)
- Manage the Power Consumption of your home of any 3x specific devices in an office or factory.
- Verify the electrical consumption of tenants (in apartments, holiday home etc.) or any department or office section.
- Verify your Pre-Paid electricity consumption.
- Useful when used with 'current power saving' applications.
- Large pumps and or any machinery

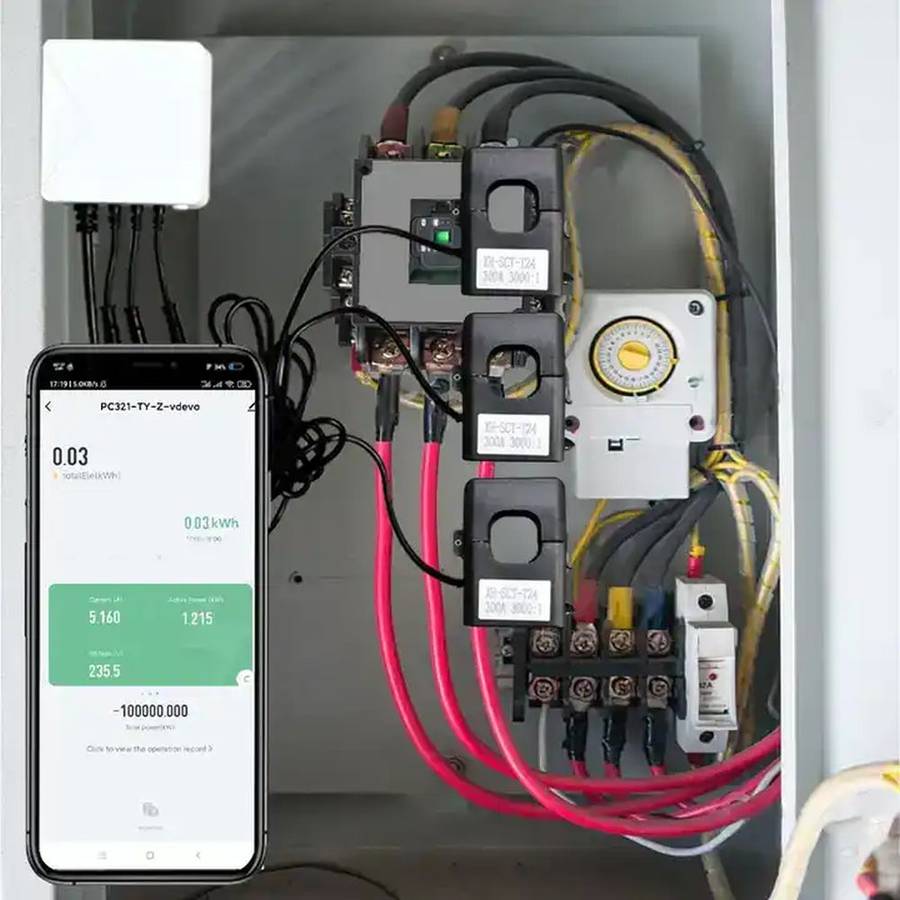

- Can be 'clamped to any existing DB (Distribution Board)
- Does not require any re-wiring, simple and fast to install. Ensure to SITCH OFF all power before fitting the clamps.

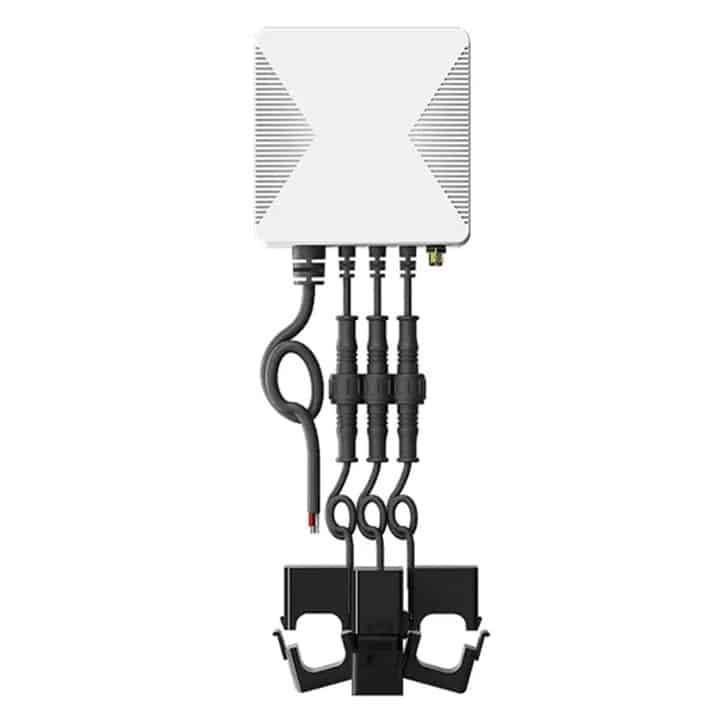

What's in the Box?
- 1x Smart Switch 3x Energy Meter
- 1x External WiFi Antenna
- 3x CT clamps 200A
- 1x Instruction Manual
FAQ's
Why should I choose Tuya above all the other Smart Home Automation Platforms? [click here]
How do I get started? [click here]
What devices can presently be Smart Automated? [click here]
