Smart 3x Clamp 500A Energy Monitoring Meter | Tuya Smart LIfe
This Smart 3x Clamp 500A Energy Monitoring Meter can be used in any application up to 500A to accurately measure power consumption.
The unit makes use of 3x Clamp Meters or CTs (current transducers) and is offered in 80A, 200A, 500A (this model) and 1000A versions. The benefit of these units is that they merely 'clamp onto the power cable' and are therefore non-intrusive and simple to install.
Can be used to make any home, office or factory 'Smart' while monitoring the amount of energy used. By adding a Smart Switch you can also Switch (ON/OFF) any device based on a preset current limit from this device. All this remotely via your phone from any location (free Tuya app).
Note:

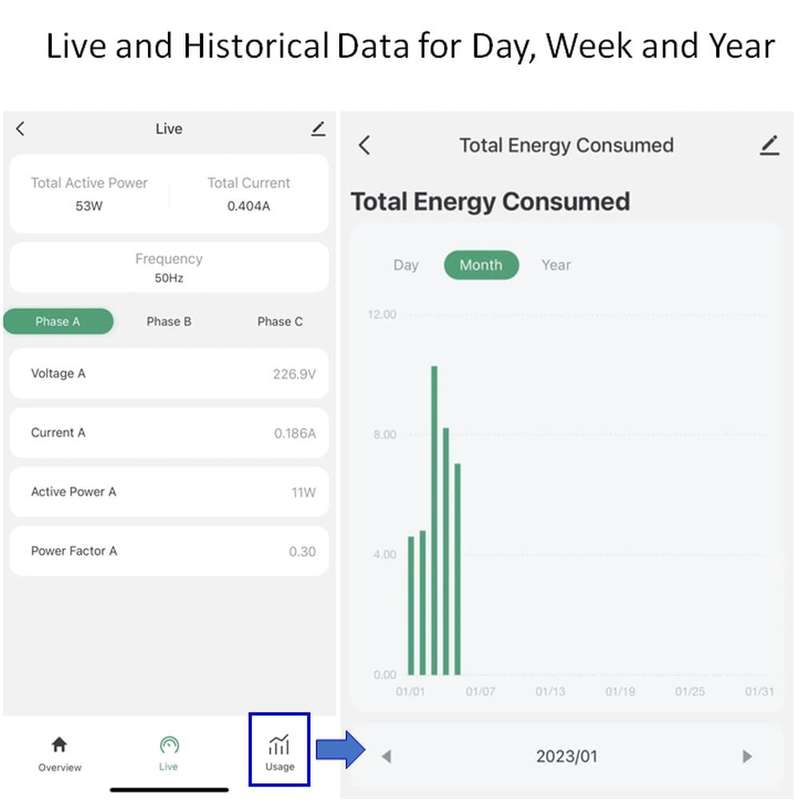

- Offers both LIVE (real-time data) and USAGE (historical data) for DAY, WEEK and YEAR - see additional images.
- The unit can be used for both single-phase (230VAC) homes small offices etc. or for three-phase (380VAC) factories, large offices etc applications.
- The CTs are directional and must be placed with the arrow pointing towards the load.
Home Automation is made Smart, Simple and Affordable via the Tuya, SmartLife App (Android or IOS), offering the fastest, most stable platform and widest range of Smart Products. Supports Alexa, Google Home and IFTTT.
Great way to make any appliance or device, 'Smart'.
Download the User Manual [click here]
Specifications
Product Name | Single/3-phase Power Clamp |
Material | Plastic |
Function | Measures real-time Voltage, Current, PowerFactor, ActivePower and total
energy consumption |
Wi-Fi | 802.11 B/G/N20/N40 |
RF Characteristics | Operating frequency: 2.4GHz
Internal Antenna
Output Power: Up to +20dBm |
Operating Voltage | 100~240 Vac 50/60 Hz |
Calibrated Metering Accuracy | 100W Within ±2W
>100W Within ±2% |
Reporting Cycle | Every 2 seconds |
CT Provided | CT 500A (default - this product) |
Clamp diameter | 80A: 10mm
200A: 20mm 500A: 28mm (this device) 1000A32mm CT Cable Length: 850 mm |
Operating environment | Temperature: -20 ~+55
Humidity: 90% non-condensing |
Dimension | 86(L) x 86(W) x 37(H) mm |
Typical Uses (but not limited to)
- Manage the Power Consumption of your home of any 3x specific devices in an office or factory.
- Verify the electrical consumption of tenants (in apartments, holiday homes etc.) or any department or office section.
- Verify your Pre-Paid electricity consumption.
- Useful when used with 'current power saving' applications.
- Large pumps and or any machinery

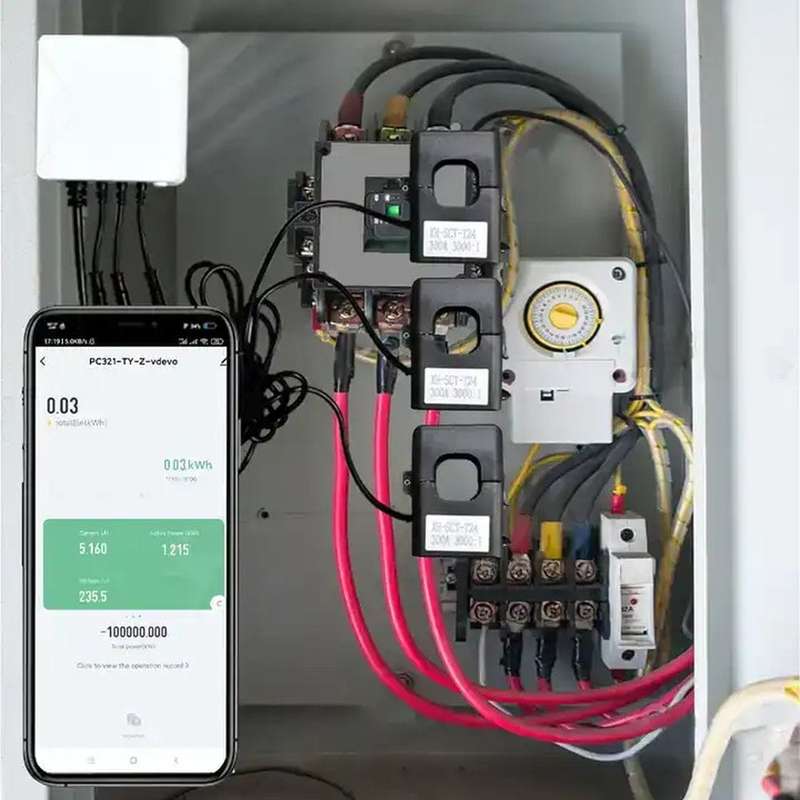

- Can be 'clamped to any existing DB (Distribution Board)
- Does not require any re-wiring, simple and fast to install. Ensure to switch off all power before fitting the clamps.
What's in the Box?
- 1x Smart 3x Clamp 500A Energy Monitoring Meter
- 1x External WiFi Antenna
- 3x CT clamps 500A
- 1x Instruction Manual
