Smart Ewelink Door Opener | Sonoff | Ewelink
This latest generation Smart Gate or Garage Door Switch fits any standard existing motor system and makes it Smart. Simply 'Install, Configure and Play'. Smart Gate Garage Door Opener
Note: we normally only sell products based on the Tuya platform, however, this batch was delivered as a Sonoff/Ewelink App (which is also great).
Home Automation is made Smart, Simple and Affordable via the Tuya, SmartLife App (Android or IOS), offering the fastest, most stable platform and widest range of Smart Products. Supports Alexa, Google Home and IFTTT.
Great way to make your Garage Door or Gate, 'Smart'
Product Features
- Small and Compact design. Ease of Installation.
- Activation dates, days of the week, start time and duration can all be pre-configured via the Smartlife application giving you complete remote control and ON/Off overwrite.
- Supports Voice Commands and also AI units such as Amazon Alexa Echo and Google Home solution.
- The entire SmartLife system performance relies on an 'adequate WIFI' (2.4GHz only) signal. We recommend the use of the 'Power Line WiFi Extender 500Mbps Kit, Henrac Tech' to expand your WIFI signal. Supports up to 7 slave repeaters to ensure comprehensive Home & Outdoors WIFI coverage.
Typical Uses (but not limited to)
- Smart Control over any Gate, Garage door or motorised apparatus. Fits any existing system
- Smart Gate, Garage Door Opener
Power Options:
This unit comes with a 230VAC to 5VDC power adaptor and a 2 PIN EU ->USB (F). If your gate/door is not on an inverter/UPS system then you may want to consider powering the opener directly from auxiliary power contacts found on the control board itself. This has the advantage that you will still be notified if the door is open or closed etc. (assume WiFi has backup)
- Normally 12VDC for Gates and 24VDC for Garage Doors - first confirm for your (*1x Backup battery =12V / 2x = 24V)
- For Gates: 12v to 5V micro USB - to buy [click here]

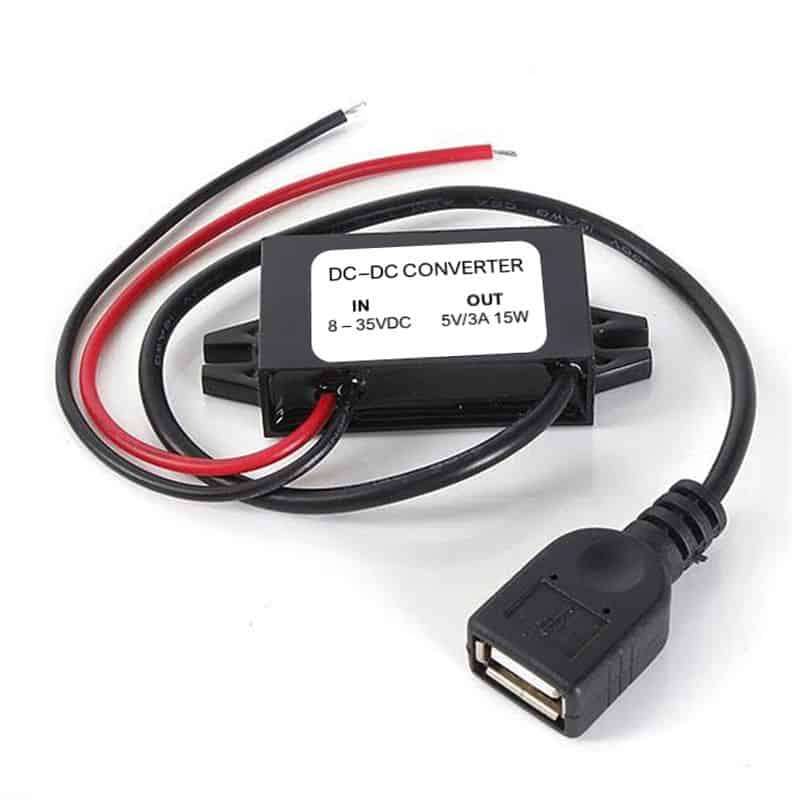

- For Garage Doors: 24V (8-35VDC) to 5V USB - to buy [click here]

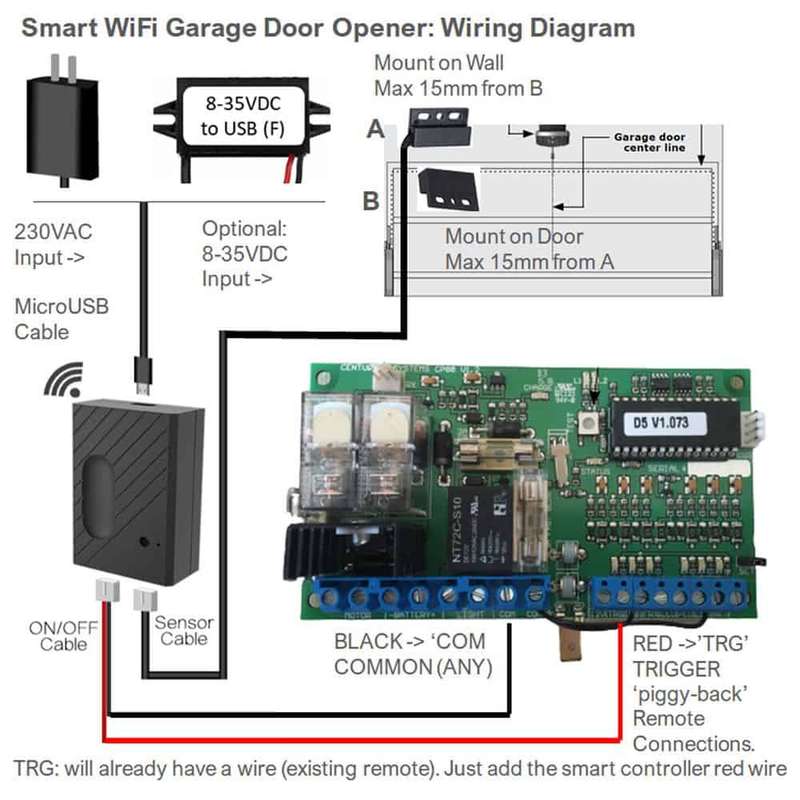

Ease of Installation: The Smart Opener basically 'piggybacks' to the same connections as your existing wireless remote or wired wall buttons available on your control board.
- Connect the provided cable connector to 'Motor'. RED connects to 'TRG' (Trigger or similar) on the control board for both Gates & Garage Doors. These are the same as the remote or wired buttons. BLACK to COM/ GND.

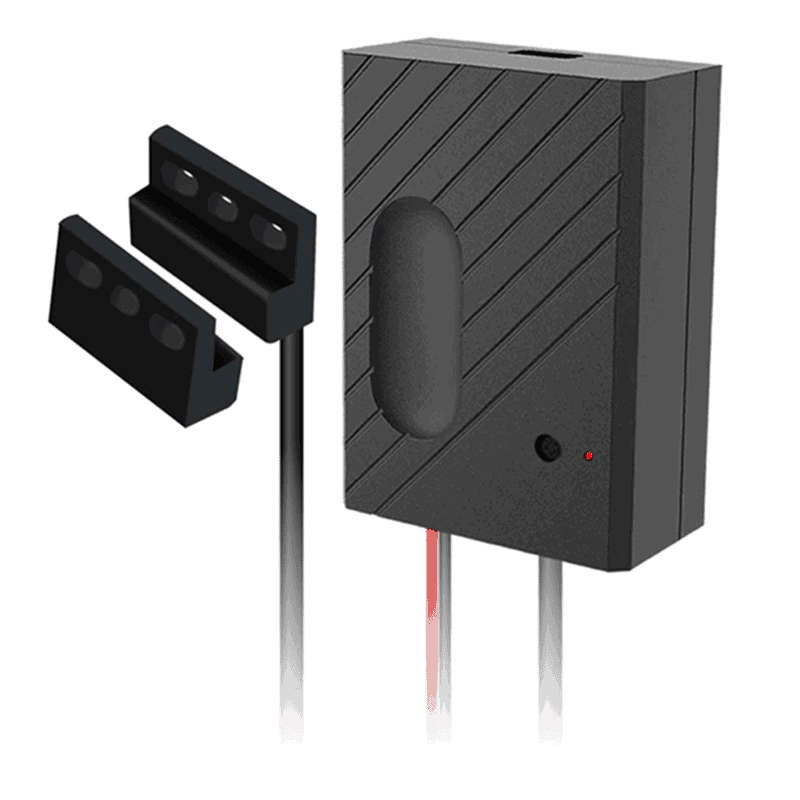

- Connect the wired sensor and the magnetic sensor pickup (opposite each other, max 15mm apart). Indicates on the Mobile App if the Gate/Door is open or closed + audible chime.

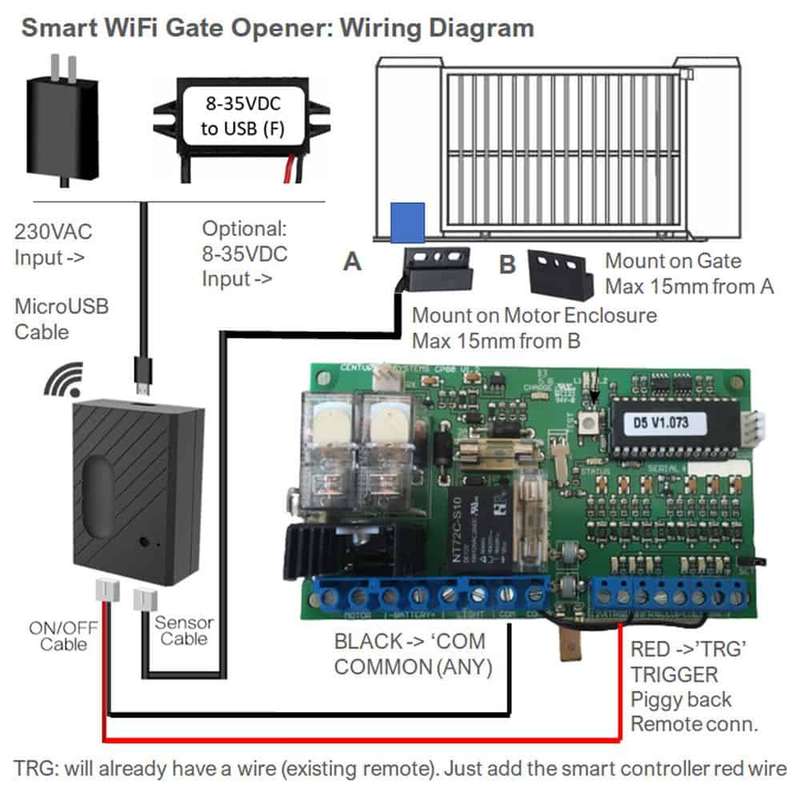

- Gate: connects inside to your gate motor enclosure/pickup on the gate itself.
- Garage door: connects to the wall just above the garage door/pickup on the garage door (screws/stickers/bracket included).
- Power the Smart Opener: The smart opener requires 5VCD via a micro USB connector. A 230VAC adaptor with USB to micro USB is included. Connecting 230VAC requires a qualified electrician. See above optional 12 & 24V DC power converters
- Pair the unit and control the device on your smartphone Ewelink App, Voice Control, Google Home, Alexa, Automate based on your position.
- Special Smart Configuration: configure the gate and/or garage door to automatically open/ close when you are for example 300m away from home.
Specifications
- Power Supply: DC 5V (Included)
- Action: 3-15mm
- Wireless standard: IEEE802.11b/g/n
- Wireless Type: Only 2.4GHz, not support 5G
- Mobile Phone: Sonoff / Ewelink for both Android & IOS
- Voice Control: Support
- Installation: with Screws/Stickers
- Wire Length: 5M
- Material: ABS+PC
- Working Temperature: -10 ~ 50
- Item Size: Approx. 6.1 * 4.5 * 2.2cm (L*W*H)
- Item Weight: Approx. 31g / 1.1oz
- Package Size: Approx. 15.5 * 11.2 * 4.5cm / 6.1 * 4.41 * 1.77in
- Package Weight: Approx. 215g / 7.58oz
What's in the Box?
- 1 x Smart Ewelink Door Opener
- 1 x Sensor Cable and magnetic pickup
- 1 x Pickup mounting bracket, Screws, Double-sided tape
- 1 x Instruction Manual
- 1 x Power Supply 5V 1A (230VAC in)
FAQ's
- Why should I choose Tuya above all the other Smart Home Automation Platforms? [click here]
- How do I get started? [click here]
- What devices can presently be Smart Automated? [click here]
Home Automation is made Smart, Simple and Affordable via the Tuya, SmartLife App (Android or IOS), offering the fastest, most stable platform and widest range of Smart Products. Supports Alexa Echo Dot, Google Home, IFTTT and more...
