Smart Wifi Gate Garage Door Opener Switch Tuya SmartLife 230V AC
This second generation Smart Gate or Garage Door Switch fits any standard existing motor system and makes it Smart. Simply 'Install, Configure and Play'. Smart Gate Garage Door Opener. This unit powered directly via 230VAC input (5VDC version also available)
Do you have an Inerter/ UPS connected to your Gate and/or Garage Door Controller? If yes, then this unit is recommended for you.Home Automation made Smart, Simple and Affordable via the Tuya, SmartLife App (Android or IOS), offering the fastest, most stable platform and widest range of Smart Products. Supports Alexa, Google Home and IFTTT.Tuya SmartLife .... Great way to make your Garage Door or Gate, 'Smart'.
Product Features - Small and Compact design. Ease of Installation.
- Activation dates, days of the week, start time and duration can all be pre-configured via the Smartlife application giving you complete remote control and ON/Off overwrite.
- Supports Voice Commands and also AI units such as Amazon Alexa Echo and Google Home solution.
- All your Smart Devices connected via a Single stable Platform been the Smart Life app from Tuya.
- The entire SmartLife system performance replies on an 'adequate WIFI' (2.4GHz only) signal. We recommend the use of 'PowerLine WIFI Extender 500Mbps Kit, Henrac Tech' to expand your WIFI signal. Supports up to 7 slave repeaters to ensure comprehensive Home & Outdoors WIFI coverage.
Typical Uses (but not limited too)
- Smart Control over any Gate, Garage door or motorised apparatus. Fits any existing system
- Smart Gate, Garage Door Opener

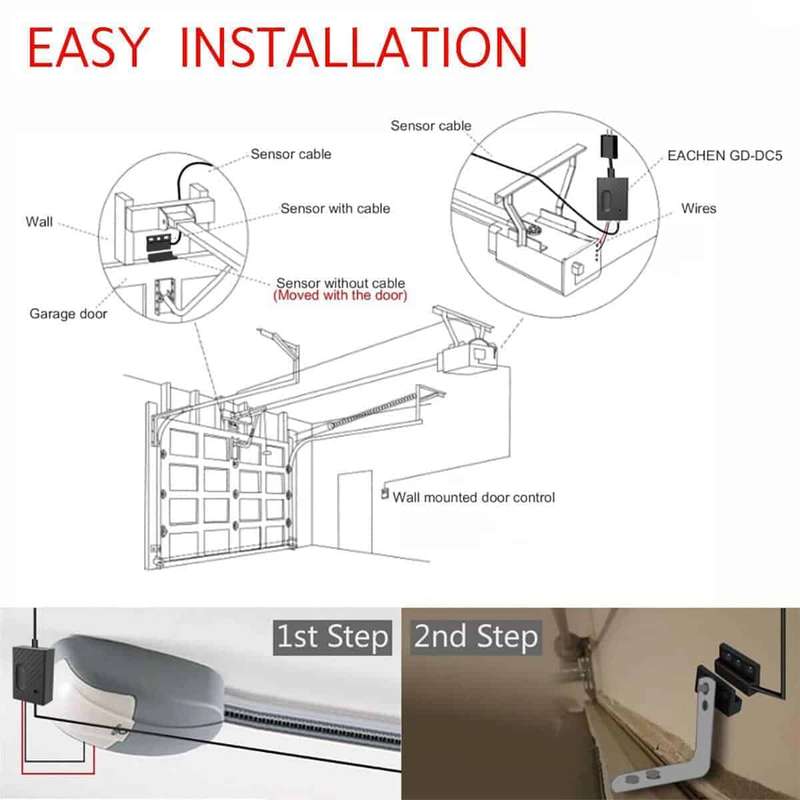

Ease of Installation: (refer to additional images for more information)The Smart Opener basically 'piggybacks' to the exact same connections as your existing wireless remote or wired wall buttons available on your control board.
- Connect the provided cable connector to 'Motor'. RED connects to 'TRG' (Trigger or similar) on the control board for both Gates & Garage Doors. These are the same as the remote or wired buttons. BLACK to COM/ GND.
- Connect the wired sensor and the magnetic sensor pickup (opposite each other, max 15mm apart). Indicates on the Mobile App if the Gate/Door is open or closed + audible Chime.
- Gate: connects inside to your Gate motor enclosure / pickup on the gate itself.
- Garage Door: connects to wall just above the garage door / pickup on the garage door (screws/stickers/bracket included).
- Power the Smart Opener: The smart opener requires 5VCD via a microUSB connector. A 230VAC adaptor with USB to microUSB is included. Connecting 230VAC requires a qualified electrician. See optional 12 & 24V DC power converters
- Pair the unit and control the device on your smart phone Tuya Smart Life, Voice Control, Google Home, Alexa, Automate based on your position.
- Special Smart Configuration: configure the gate and/or garage door to automatically open/ close when you are for example 300m away from home.
Optional Recommended: DC-DC converters to Power this Smart Opener - We recommend the optional DC to DC converter. This converter will allow you to power the Smart opener directly from auxiliary power contacts found on the control board itself (normally 12VDC for Gates and 24VDC for Garage Doors - confirm for your unit)
- For Gates 12v to 5V micro USB - to buy [click here]
- For Garage Doors 24V to 5V USB - to buy [click here]
Specifications - Power Supply: AC 230V (via 2Pin EU Plug) | 100-240V AC @ 50/60Hz
- Action: 3- 5m
- Wireless standard: IEEE802.11b/g/n
- Wireless Type: Only 2.4GHz, not support 5G
- Mobile Phone: Tuya SmartLife For android & IOS
- Voice Control: Support
- Installation: with Screws/Stickers
- Wire Length: 5M
- Material: ABS+PC
- Working Temperature: -10 ~ 50
- Item Size: Approx. 6.1 * 4.5 * 2.2cm (L*W*H)
- Item Weight: Approx. 31g / 1.1oz
- Package Size: Approx. 15.5 * 11.2 * 4.5cm / 6.1 * 4.41 * 1.77in
- Package Weight: Approx. 215g / 7.58oz
What's in the Box? - 1x WiFi Garage Door Opener1x Sensor Cable and magnetic pickup1x Pickup mounting bracket, Screws, Double-sided tape1x Instruction Manual
